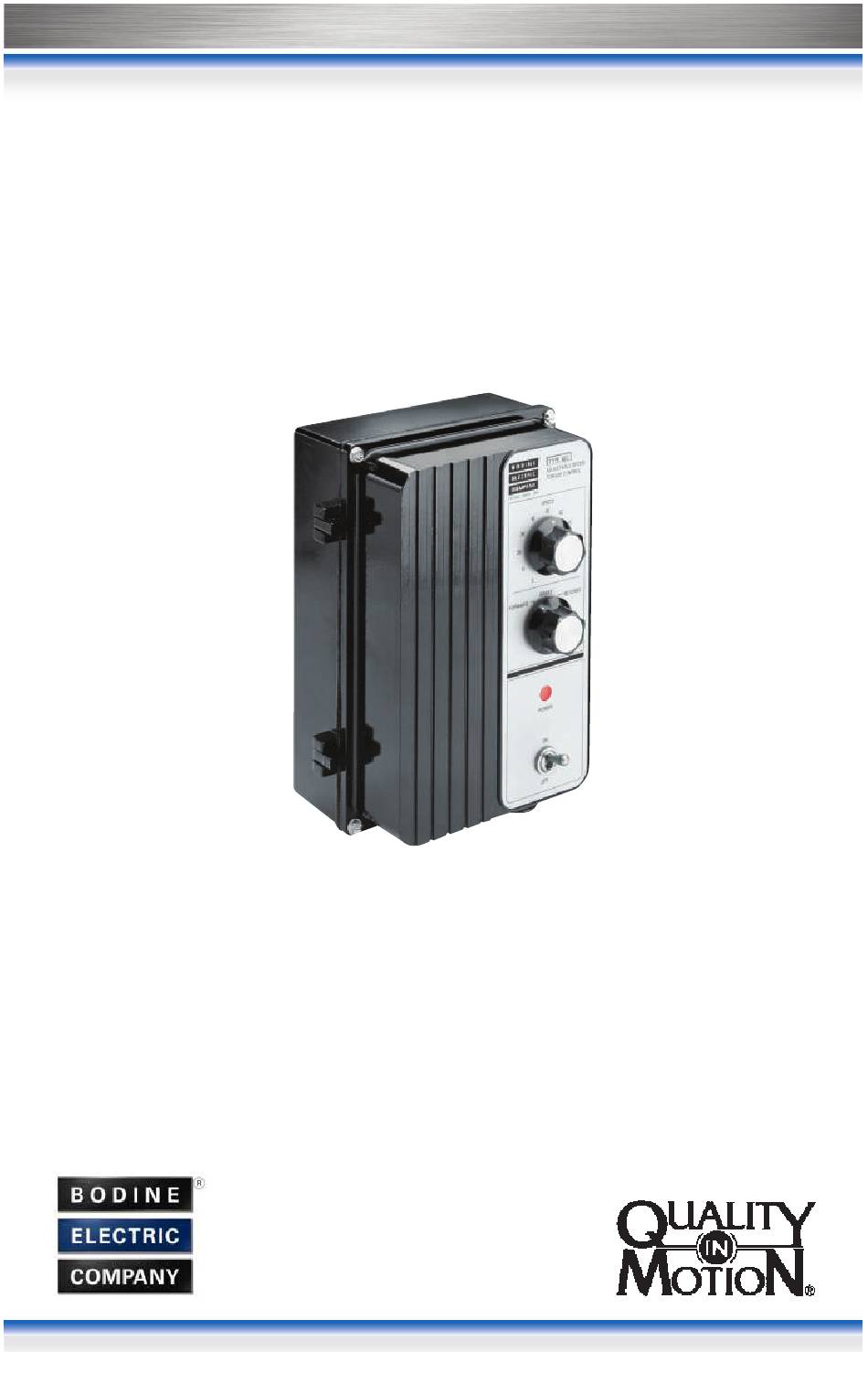

Instructions for Installation and Operation
Filtered SCR Brushless DC
Motor Speed Controls (NEMA-12)
Model 3912, 0-2,500 rpm
Model 3913, 0-10,000 rpm
SPECIFICATIONS
Product Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ABL-3912E/ABL-3913E
Input Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 VAC ± 10%, 50/60 Hz (Single Phase)
Input Current: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Amps rms
Output Voltage: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 to 130 VDC
Continuous Output Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.0 Amps
Peak Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0 Amps
Ambient Temperature: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to 40° C (Maximum)
Control Hp Range: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Up to 3/8 Hp
Control Speed Range: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Up to 30:1
www.bodine-electric.com
07400212.C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3912 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bodine 3912

  • Page 1 Instructions for Installation and Operation Filtered SCR Brushless DC Motor Speed Controls (NEMA-12) Model 3912, 0-2,500 rpm Model 3913, 0-10,000 rpm SPECIFICATIONS Product Type......... . ABL-3912E/ABL-3913E Input Voltage: .
  • Page 2: Quick Reference Check List

    ❑ Connected the circular connector on the control output cable to the corresponding circular connector on the Bodine Brushless DC motor. Details on Page 9. ❑ Selected the proper control horsepower settings for the motor being used. Details on Page 9.
  • Page 3: Table Of Contents

    Logic Signal Control of Braking, Direction of Rotation, and Deceleration ..21 Signal Isolation Using a Bodine Model 3984 Interface Module ....21 WARRANTY .
  • Page 4: General Information

    GENERAL INFORMATION Thank you for selecting a Bodine Type ABL Encased Brushless DC Motor Control. Your new control will provide the same excellent performance and reliability that have been a Bodine tradition since 1905. Bodine Electric Company takes pride in the quality of its products and in satisfying its customers.
  • Page 5: Specifications

    A built-in shutdown circuit disables the control during over-voltage, under-voltage, or invalid commutation sensor state conditions. Specific Bodine motor sizes which can be used with these controls are listed in the Chart in Figure 3.
  • Page 6: Important Safety Precautions

    Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the products. Bodine Electric Company assumes no liability for the customer’s failure to comply with safety requirements and practices.
  • Page 7 Check the items you received against your purchase order. Carefully examine the control (and any optional kits or parts) for shipping damage. Parts errors should be reported to Bodine. Shipping damage claims should be made to the freight carrier. Before installation, review the application to confirm that the proper motor and control have been selected.
  • Page 8 Do not insert anything into a product’s ventilation openings. Servicing Emergency field repairs must be made only by authorized Bodine service representatives. Repairs made by persons not authorized by the Bodine Electric Company will void the warranty. Field repairs must be limited to replacing an entire printed circuit board assembly.
  • Page 9: Installation Instructions

    1 through 8. The chart in Figure 3 shows the proper DIP switch settings for various Bodine motor types. Determine the first four digits of the motor’s type number from the nameplate. Find the same four digits in the chart in Figure 3 to determine the proper settings of the DIP switches.
  • Page 10: Figure 1 - Detail Of Control Circuit Board In Enclosure

    1, 2, 3, 6, 8 MDA 1-1/2 ABL-3913E 10,000 ABC 15 34B4… 1, 3, 4, 6, 8 MDA 2-1/2 Figure 2 - Horsepower (DIP Switch) Settings and Motor Fuse Selection Chart Figure 3 - Horsepower (DIP Switch) Settings and Fuse Selection Chart www.bodine-electric.com...
  • Page 11: Line Fuse Installation

    120° commutated gearmotors or motors, set DIP switch number 6 to the “Off” position. Please note that further application details must be considered to properly match a non-Bodine BLDC motor with one of our stock BLDC controls. To avoid damage or system performance issues, please consult our Technical Support staff at 773-478-3515 or via E-mail: info@bodine-electric.com.
  • Page 12: Operating Instructions

    (stalled) or overloaded, do not replace the fuse. The control may be damaged. Refer to Troubleshooting on page 15 and follow instructions. If the motor is overloaded, reduce the load and replace blown fuses with new ones of the proper type and rating. (See Figure 3.) www.bodine-electric.com...
  • Page 13: Internal Adjustments

    MIN and MAX trim potentiometers may have to be repeated several times to arrive at the desired speeds. NOTE: Increasing the MIN potentiometer setting will increase the maximum speed beyond nameplate speed. The MAX trim potentiometer will need to be readjusted. www.bodine-electric.com...
  • Page 14: Torque (Current) Limiting Adjustment

    Adjusting the DECEL trim potentiometer (See Figure 1) counterclockwise decreases the motor’s deceleration time down to a minimum of approximately 0.2 seconds (ABL-3912E) or 0.5 seconds (3913E). A clockwise adjustment increases the rate up to a maximum of approximately 10 seconds (3912E) or 30 seconds (3913E). www.bodine-electric.com...
  • Page 15: Troubleshooting

    Disconnect the 115 VAC power cord from the power source before working on the control, motor, or driven equipment. All Bodine controls undergo extensive testing and calibration procedures to detect and eliminate defects. Your control should not require maintenance under normal conditions.
  • Page 16 Adjust TORQ trim pot, page 14. Check DIP switch Wrong horsepower setting setting, page 10. Damaged component Contact Bodine for assistance. on the control board Wrong horsepower setting Check DIP switch setting, page 10. Motor and load not Perform alignment.
  • Page 17: Specialized Wiring Applications

    The user bears the responsibility for determining if another motor is fit for use with the ABL control. If you have doubts, Bodine will assist you in determining if another motor is fit for use with this control.
  • Page 18: Motor Cable

    Contact with the shield could cause serious a voltage hazard. Contact with the shield could cause serious injury or injury or death. If a non-Bodine cable is used or if a special cable is fabricated, care should be taken to insulate all exposed shield to avoid death.
  • Page 19: Connecting Control Inputs From Remote Locations

    • Orange to Terminal “S2” LINE FUSE 1992 LINE FUSE 1992 • Yellow to Terminal “S3” LED2 Figure 5 - Remote Speed Control LED2 Figure 6 - Remote Speed Control Connections Figure 5 - Remote Speed Control Connections Connections www.bodine-electric.com...
  • Page 20: Remotely Located Braking (Disable), Direction Of Rotation And Deceleration Controls

    See Page 14. The output shafts of gearmotors with odd number of stages (Bodine type designations ending with W3, E1, or E3) will rotate in the opposite direction.
  • Page 21: Electronic Speed Control

    100K Signal Common how to connect relay contacts to the ABL-3912E and ABL-3913E. 51.1K 100K Signal Isolation Using a Bodine – Model 3984 Interface Module: Signal Common Follow the installation instructions provided with the module to isolate the input signals between the...
  • Page 22 NOTES...
  • Page 23: Warranty

    Bodine or to a Bodine Authorized Service Center. Bodine is not responsible for removal, installation, or any other incidental expenses incurred in shipping the products to or from Bodine. This warranty is in lieu of any other expressed or implied warranty – including, but not limited to, any implied warranties of merchantability and/or fitness for a particular use.
  • Page 24 Visit www.bodine-electric.com for our large selection of 24 VDC brushless DC motors and gearmotors Bodine offers the widest selection of variable-speed AC, permanent magnet DC and brushless DC fractional horsepower gearmotors and motors in the industry. For complete specifications, 3D CAD drawings, or to order online, visit bodine-electric.com.
