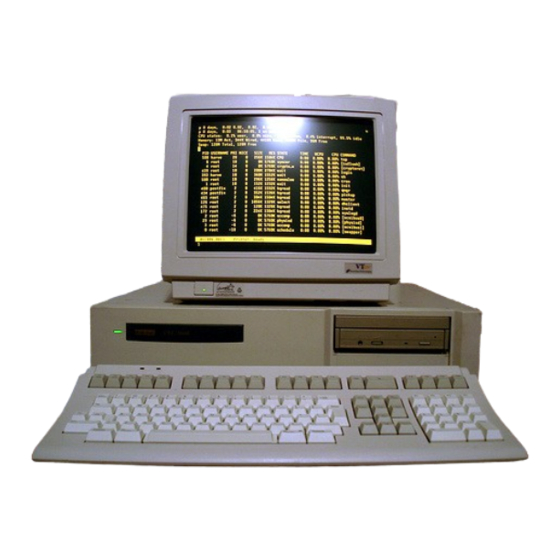

Digital Equipment DECstation 5000 Upgrade Instructions
Model 2xx to dec 3000 model 300 axp
Hide thumbs
Also See for DECstation 5000:
- Upgrade instructions (14 pages) ,
- Hardware installation manual (62 pages)
Subscribe to Our Youtube Channel
Related Manuals for Digital Equipment DECstation 5000
Summary of Contents for Digital Equipment DECstation 5000
- Page 1 DECstation 5000 Model 2xx to DEC 3000 Model 300 AXP Upgrade Instructions MLO-010693 Order Number: EK–DS523–UP. A01...
- Page 2 Options You Can Upgrade Can Upgrade Cannot Upgrade Graphics Options:** PMAGB-BA/BB PMAG-AA/AB PMAGB-BC/BD PMAG-DA/DB PMAGB-JA/JB AV10U-AA/DA PMAG-GB PMAG-EA/EB PMAGB-BE/BF PMAG-FA/FB PMAG-HA PMAGB-ED/EC PMAGB-FA/FB* PMAGB-DC/DD PMAGB-EA/EB PMAG-CA/CB PMAGB-DA/DB PMAG-JA/JB PMAG-BA/BB TURBO- channel Options:** PMAD-AA/AB Monitors: VRC16-Cx VR262-Ax VRC16-Hx VR290-Dx VRM17-Ax VR297-Dx VRM17-Hx VR299-Dx VR319-Dx**...
- Page 3 Options You Can Upgrade Can Upgrade Cannot Upgrade Hard Disks:**** RZ24, 25, 26 RZ57 RZ23L, 24L RZ55, 56, 58 Removable Media:**** RRD42 RW100-AA TZ30 RW100-BA TLZ04,06 RW100-CA TKZ08, 09, 10* CITCA-AA TSZ07* TK50Z RRD40 RX23, 26, 33 Monitors: VR319-Dx VR262 VR320-Dx V290 VRC16-Cx/Hx...
-
Page 4: Check The Box Contents
Check the Box Contents System Kit: Mouse with Mousepad Universal System Unit Strain Relief Strap Keyboard Monitor Video Cable SCSI Terminator Documentation Keyboard/Mouse Extension Cable Antistatic Wrist Strap Monitor 10BASE-T Loopback Power Cord Connector Modem Loopback Connector System Power Cord Network Cable Screwdriver... - Page 5 Turn Off System/Remove Cover To shut down the software and put the system into console mode, enter: shutdown -h now Turn off the system unit by pressing O on the On/Off switch on the rear of the system unit. Wait 15 seconds before unplugging the power cord.
- Page 6 Remove Option Modules Turbochannel option modules and graphics option modules can be single, double, or tri- ple width to occupy one, two, or three option slots. MLO-010663...
- Page 7 Remove Option Modules Use a Phillips screwdriver to remove the option slot screws, then the support post screws. Lift the front of the module to discon- nect the slot connectors, then lift the back of the module. Support Option Post Screws Slot Screws System Connector...
- Page 8 • Attach the return-address label that was in your upgrade kit. • Contact your Digital service representa- tive to upgrade your service contract. © Digital Equipment Corporation 1993 . All rights reserved. Printed in U.S.A. S2305...
