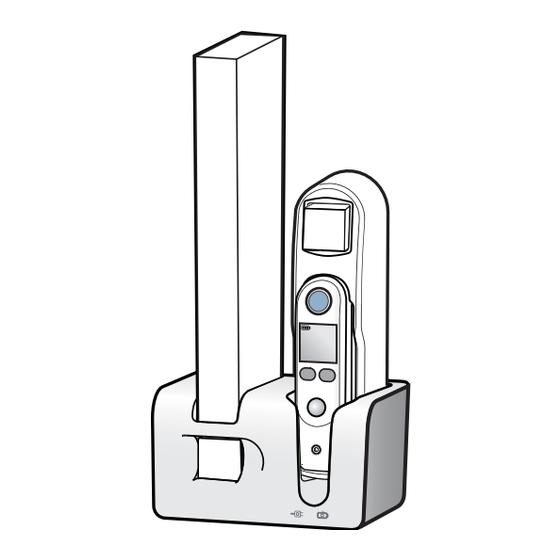

ThermoScan
®
Charging station
Directions for use
PRO 6000
1
Charging station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Braun ThermoScan PRO 6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Welch Allyn Braun ThermoScan PRO 6000

Summary of Contents for Welch Allyn Braun ThermoScan PRO 6000

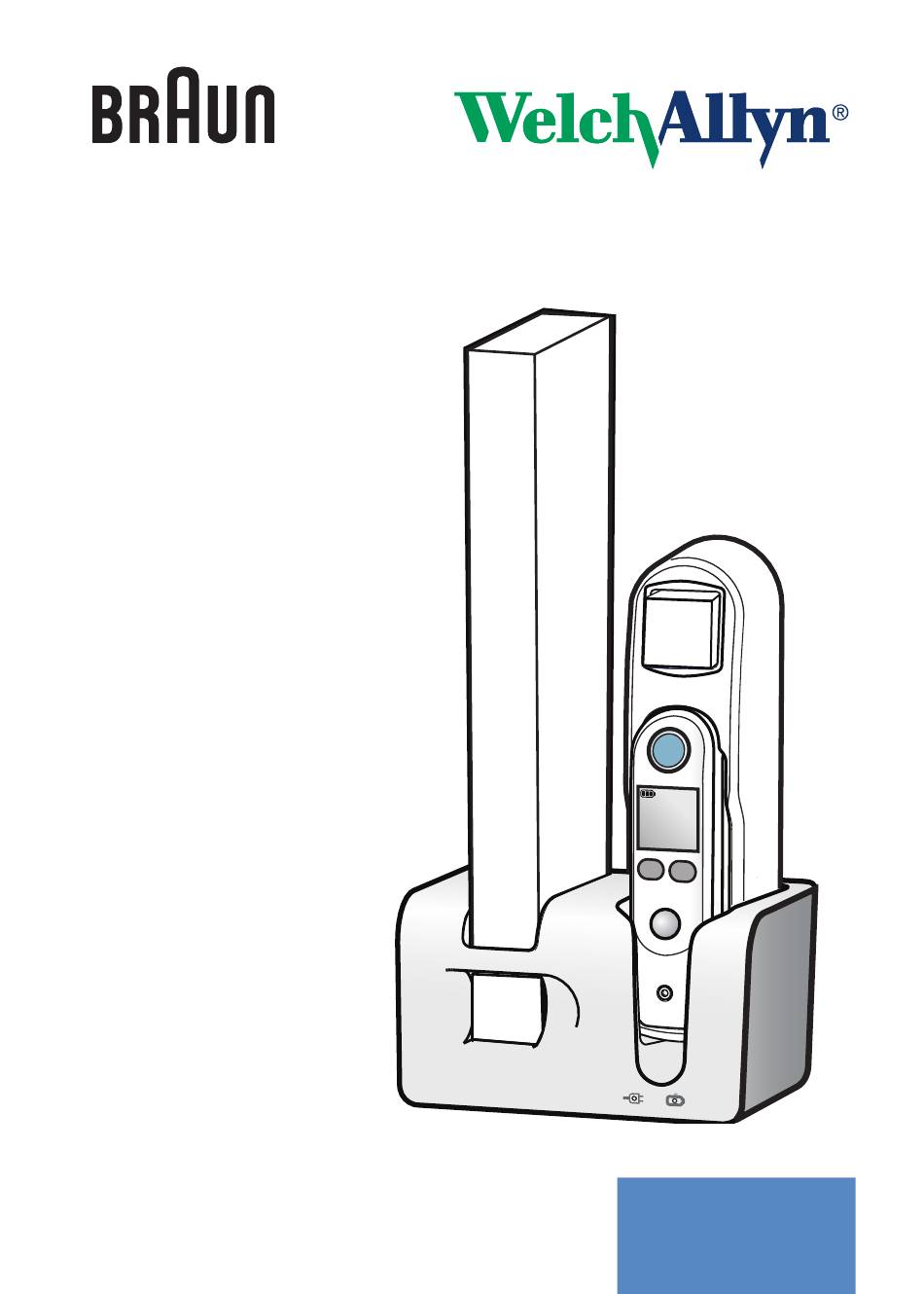

  • Page 1 ThermoScan ® Charging station Directions for use PRO 6000 Charging station...
  • Page 2 Skaneateles Falls, NY 13153 Revision Date: 2019-09 Welch Allyn Limited Navan business Park Dublin road, Navan, County Meath Republic of Ireland C15 AW22 For information about any Welch Allyn product, contact: Welch Allyn Technical Support: www.welchallyn.com/support visit locations: www.welchallyn.com/about/company/locations.htm Use only Replacement parts Hillrom For a complete list of parts, go to www.welchallyn.com...
  • Page 3 1.  Braun  T hermoscan  PRO 6000 Charging station ®...

  • Page 4: Package Components

    Braun ThermoScan PRO 6000 Charging station ® CD containing Directions for use, Welch Allyn Service Tool software (available via internet link) and Service Tool installation guide (available via internet link) 1 Rechargeable battery pack (NiMH) 1 Set of interchangeable wall plug(s) 1 Wall adapter and USB cable 3. ...

  • Page 5: Warnings And Precautions

    SAVE THESE INSTRUCTIONS The charging station for the Braun Thermoscan PRO 6000 Ear thermometer, a clinical grade ® thermometer, provides charging and security function, as well as storage for the thermometer and the probe cover dispensers. Before use, read the directions for use carefully. 4. ...

  • Page 6: Battery Installation

    5.  Setup 5.1  Battery installation The charging station is supplied with 1 rechargeable battery pack. To make use of the charging function place the rechargeable battery pack in the battery compartment of the thermometer. The battery pack may not be charged when delivered. CAUTION ...
  • Page 7 5.2  Connecting Connect the USB cable to the back of the charging station (1a) and feed the cable through the retaining clip (1b). Select the appropriate interchangeable plug for your country and region (if more than one plug is supplied). Connect the plug to the wall adapter.
  • Page 8 5.3  Mounting instructions (optional) The charging station can be mounted to a wall or set up on a flat surface. The charging station should be mounted to the wall after completing step 3 of section 5.2 Connecting. The following materials will be needed for mounting: •...
  • Page 9 The thermometer will produce an audible beep. The charging indicator on the charging station will illuminate amber. The battery charge status will be displayed on the thermometer LCD. The charging indicator on the charging station will change to green when the thermometer is fully charged (approximately 3 hrs. if battery is empty).

  • Page 10: Security Function

    Thermoscan  PRO 6000 Ear thermometer is turned off. Security ® is only available via the use of the Welch Allyn Service Tool software and requires the charging station or any compatible Welch Allyn Vital Signs device to initiate. The security function may be used with rechargeable or alkaline batteries.
  • Page 11 … … Upon expiration of the time limit, the unlocked icon and countdown timer will be replaced with the locked icon and the thermometer will beep once every 5 minutes to indicate locked state. Any button pressed in the locked state will result in an error beep and no other response from the thermometer.
  • Page 12 6.2  Security function settings The charging station or compatible Welch Allyn Vital Signs device can be used with the Welch Allyn Service Tool to modify settings on the thermometer. The Welch Allyn Service Tool software is required to modify the thermometers configuration.
  • Page 13 Launch the Welch Allyn Service Tool. b. If the startup screen with the “Add new features” and “Service” button appears click “Service”. c. Log in as ADMIN with no password or use any account you previously created. Note: If the log on prompt does not appear click the Log on button.

  • Page 14: Service Tools

    Click the Change button in the current settings box. The configuration settings dialog box opens. To select the security function, click the drop down menu and click the desired time or Off to disable. Once the desired settings are selected click the Save button to send the settings to the Braun thermometer and close the box.

  • Page 15: Maintenance And Service

    Hydrogen peroxide Virox Oxivir Alcohol 70% isopropyl or ethyl alcohol Additional cleaning agents may be periodically evaluated for compatibility. If your cleaning agent is not listed, contact Welch Allyn to determine if additional cleaning agents are approved for use. Note: If any cleaning agent other than isopropyl or ethyl alcohol comes into contact with the  contacts immediately wipe dry. Then clean the contacts with isopropyl or ethyl alcohol.

  • Page 16: Storage Instructions

            Caution CAUTION  Do not use abrasive cleaning agents. WARNING Unplug the charging station before performing any maintenance or service. WARNING Do not submerge the charging station in water or any other liquid. CAUTION Wipes should be moist, not saturated. Excess liquid may cause damage to the charging station.

  • Page 17: Specifications

    8.  Specifications Operating ambient temperature range: 10–40 °C (50–104 °F) External medically certified power supply ratings: Output Voltage: 5Vdc Output Current: Input Voltage: 100‑240VAC Input Current: 0.3A Input Frequency: 50‑60Hz Long term storage ranges Storage temperature: ‑20 to 50°C (‑4 to 122°F) Storage humidity: 0 to 85% non condensing Electrical rating: 750 mAh Rechargeable battery warranty:...

  • Page 18: Standards And Compliance

    Standards and compliance This device conforms to the following Safety and Performance Standards: This product conforms to the provisions of the EC directive 93/42/EEC (Medical Device Directive). ANSI/AAMI STD ES60601-1, UL STD 60601-1, CAN/CSA STD C22.2 No. 60601.1, IEC 60601-1 and EN 60601-1;...

  • Page 19: Symbol Definitions

    Symbol definitions: Type BF Applied Part Caution The caution statements in this manual identify conditions or practices that could result in damage to the equipment or other property, or loss of data. Warning The warning statements in this manual identify conditions or practices that could lead to illness, injury, or death.
  • Page 20  PRO 6000 Charging station ® Welch Allyn (an affiliate of Hill‑Rom®) warrants the product to be free of defects in material and workmanship and to perform in accordance with manufacturer’s specifications for the period of three years from the date of purchase from Welch Allyn or its authorized distributors or agents.
