Welch Allyn 71114 Manual

SPECIFICATIONS

Model Numbers: 71114, 71116,71118, 71154, 71156, 71158
2
Power Cord - 0.75mm , 3 wire earthed cord, 3m. Long
Input...Class 1...220-250v. (Numbers 71114, 71116, 71118, 71154, 71156, 71158)
50-60 Hz., .04 Amp.
Output...Model Number 60713, 71500 for 71670 Rechargeable Battery Handles
(charging rate: 75 ma. for 71500 and 60713; 60 ma. for 71670)
Fuses...(F1 and F2)...40 ma. Time lag low breaking capacity, 250 V.
Leakage Current is less than 10 microamps from any exposed metal part when proper earth is used.
Weight - approximately 1.25 kg.
Dimension - Charger requires only 18.4 x 8.9 cm.
Optional Charger with specula holder requires 18.4 x 21.6 cm.
o o o
Transport/Storage - 40 F (-40 C) to 122 F (+50 C) 95% RH Max.

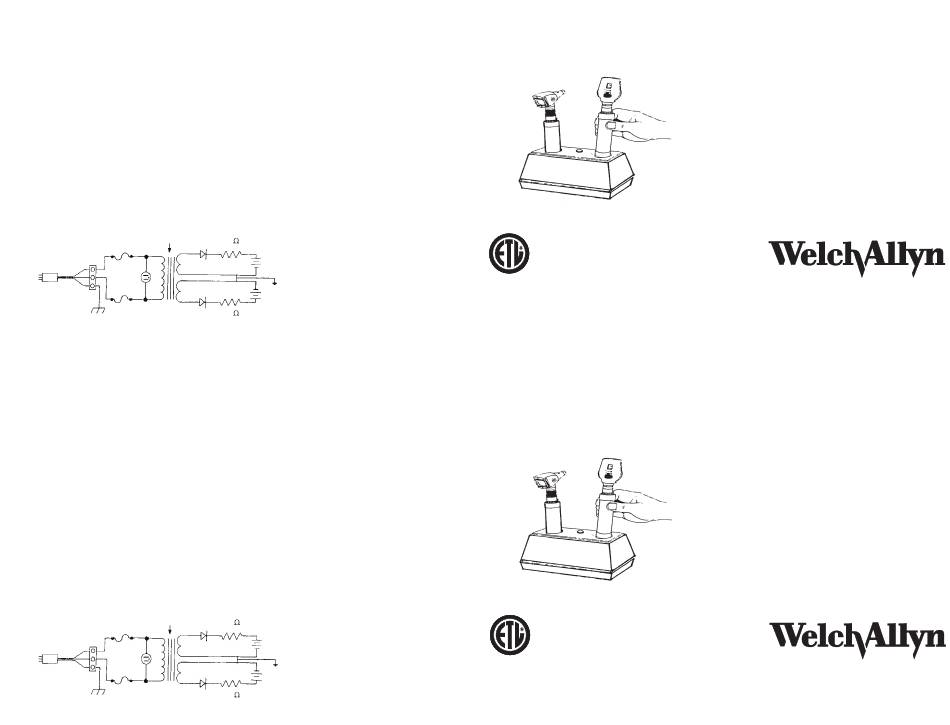

CIRCUIT DIAGRAM

Split-Bobbin
Step-Down
Transformer
F1 T.04L
Terminal
Block
Pilot
Light
Plug
(According to
Model No.)
F2 T.04L
Outside
of Battery
Handles
SPECIFICATIONS
Model Numbers: 71114, 71116,71118, 71154, 71156, 71158
2
Power Cord - 0.75mm , 3 wire earthed cord, 3m. Long
Input...Class 1...220-250v. (Numbers 71114, 71116, 71118, 71154, 71156, 71158)
50-60 Hz., .04 Amp.
Output...Model Number 60713, 71500 for 71670 Rechargeable Battery Handles
(charging rate: 75 ma. for 71500 and 60713; 60 ma. for 71670)
Fuses...(F1 and F2)...40 ma. Time lag low breaking capacity, 250 V.
Leakage Current is less than 10 microamps from any exposed metal part when proper earth is used.
Weight - approximately 1.25 kg.
Dimension - Charger requires only 18.4 x 8.9 cm.
Optional Charger with specula holder requires 18.4 x 21.6 cm.
o o o
Transport/Storage - 40 F (-40 C) to 122 F (+50 C) 95% RH Max.
CIRCUIT DIAGRAM
Split-Bobbin
Step-Down
Transformer
F1 T.04L
Terminal
Block
Pilot
Light
Plug
(According to
Model No.)
F2 T.04L
Outside
of Battery
Handles
o
27
2.5 v. Or 3.5v.
Nickel Cadmium
Batteries
27
o
27
2.5 v. Or 3.5v.
Nickel Cadmium
Batteries
27

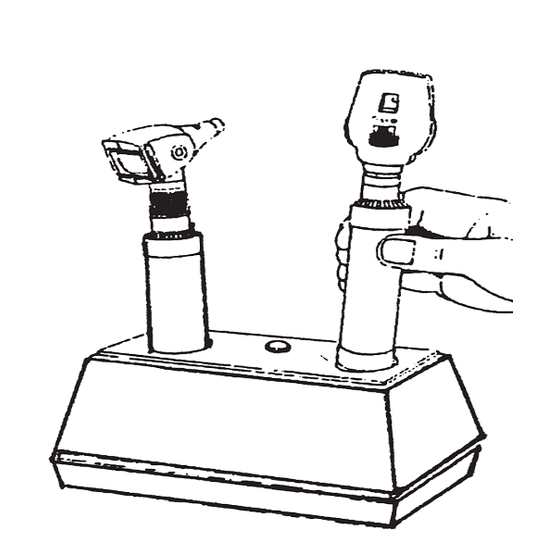

DESK CHARGERS
Numbers: 71114, 71116, 71118
71154, 71156, 71158
Listed Product
ETL Laboratories
Manufactured in
compliance with EN60601-1
DESK CHARGERS
Numbers: 71114, 71116, 71118
71154, 71156, 71158
Listed Product
ETL Laboratories
Manufactured in
compliance with EN60601-1
Thank you for purchasing this convenient
charger for diagnostic instruments. The
specifications and maintenance instructions
contained in this pamphlet should be
followed to insure years of convenient service.
4341 State Street Road
Skaneateles Falls, NY 13153-0220 U.S.A.
Thank you for purchasing this convenient
charger for diagnostic instruments. The
specifications and maintenance instructions
contained in this pamphlet should be
followed to insure years of convenient service.
4341 State Street Road
Skaneateles Falls, NY 13153-0220 U.S.A.
