D-Link DSL-245GR Quick Installation Manual page 40

DSL-245GR

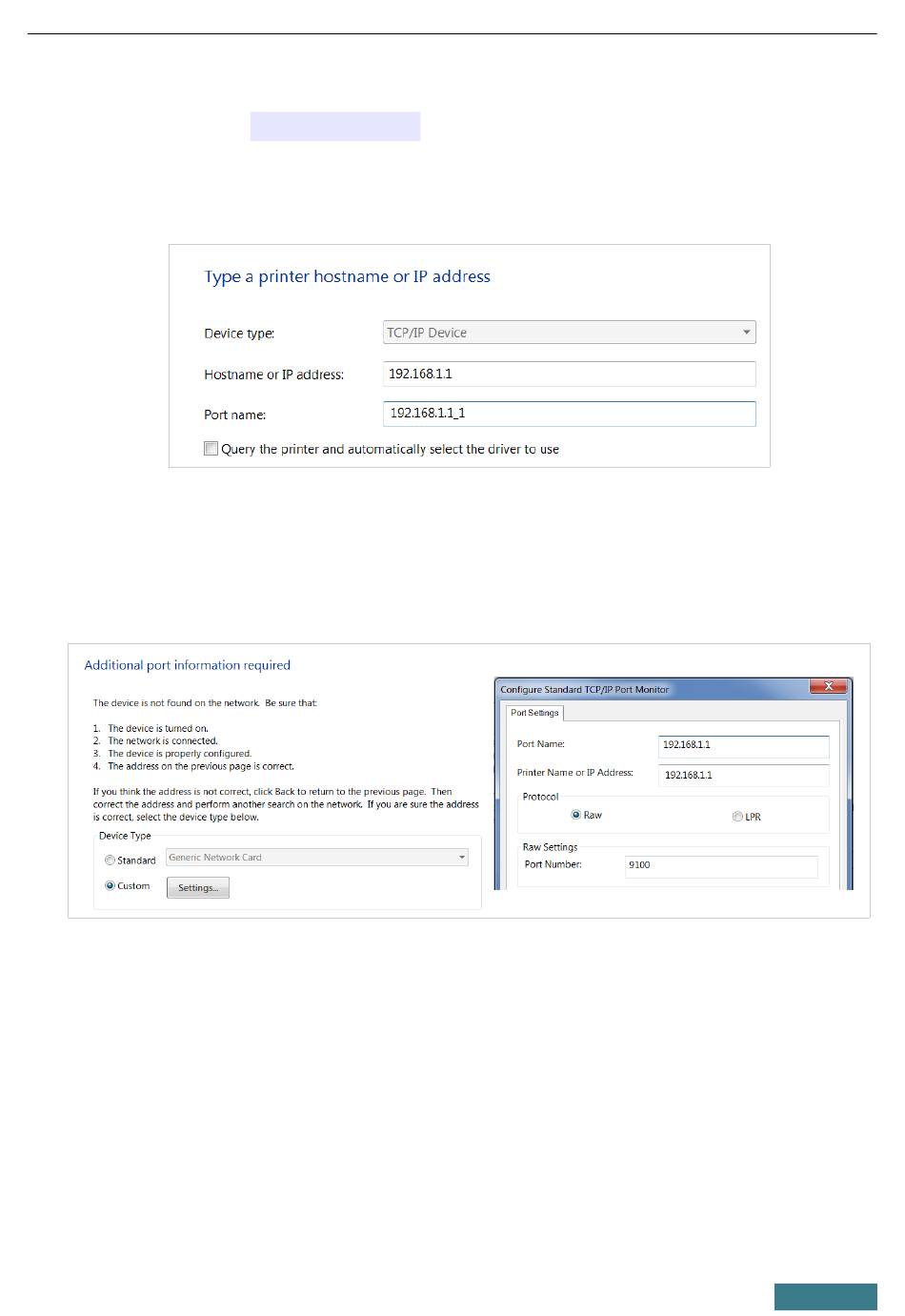

9. Enter the IP address of the router in the Hostname or IP address field
(by default, 192.168.1.1). Deselect the Query the printer and
automatically select the driver to use checkbox and, if needed,
change the name of the port in the Port name field. Click the Next
button.
10. Wait for about 20-30 seconds. In the opened Additional port
information required window, select the Custom choice of the radio
button, click the Settings button, and make sure that the RAW choice of
the radio button is selected in the Protocol section and the 9100 value is
specified in the Raw Settings section. Click the OK button.
11. Then in the Additional port information required window, select the
Standard choice of the radio button and click the Next button.
Quick Installation Guide
40
