Quick Installation Guide

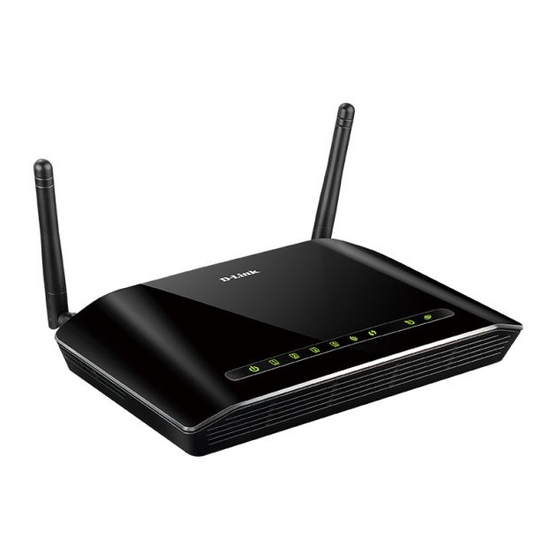

DSL-2740U
Wireless ADSL2+ Router with Ethernet WAN Support

Advertisement

Table of Contents
loading

Related Manuals for D-Link DSL-2740U

Summary of Contents for D-Link DSL-2740U

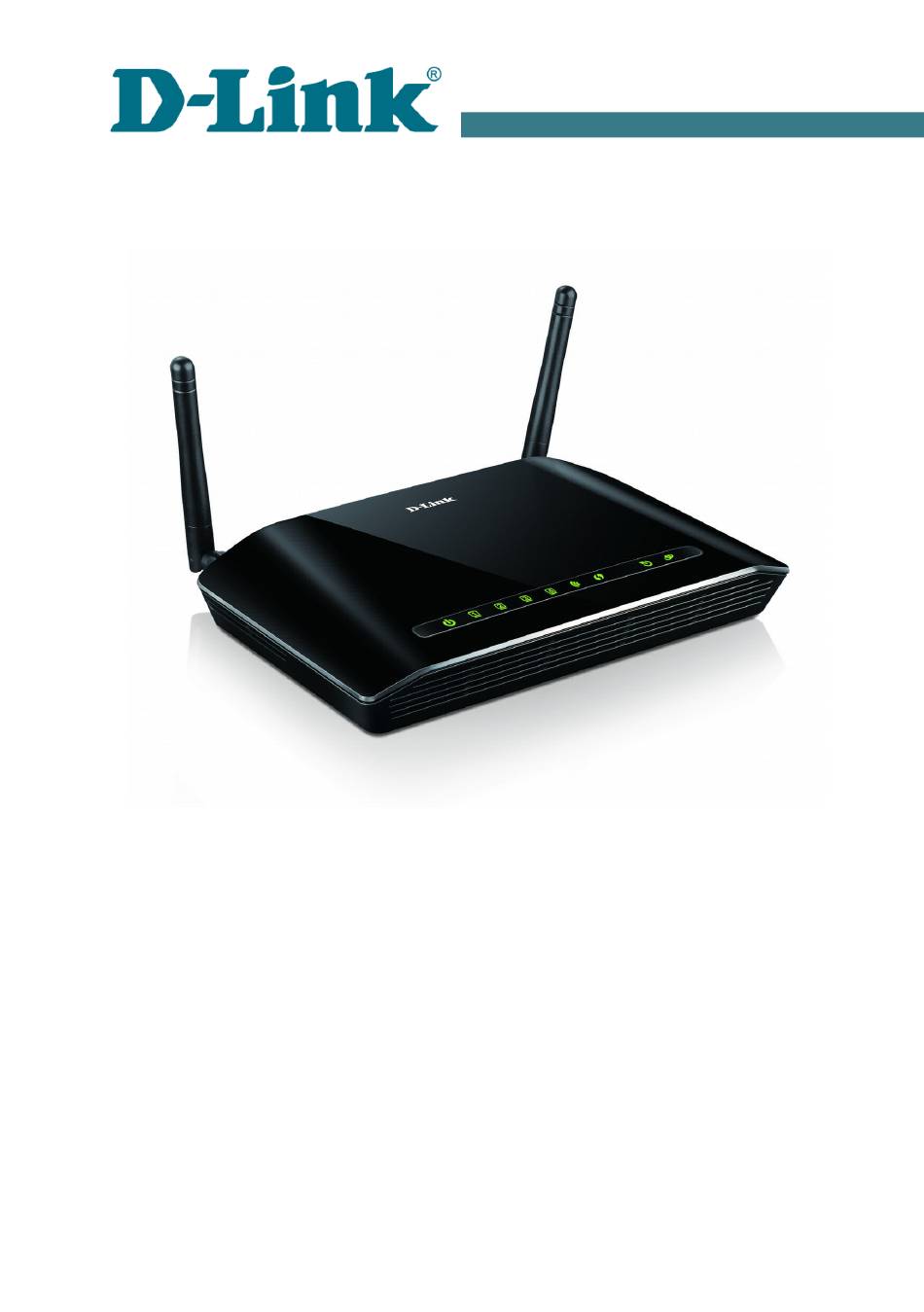

  • Page 1 Quick Installation Guide DSL-2740U Wireless ADSL2+ Router with Ethernet WAN Support...

  • Page 2: Before You Begin

    If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.

  • Page 3: Default Settings

    DSL-2740U Quick Installation Guide Default Settings 192.168.1.1 IP address of wireless router Username (login) admin admin Password Name of wireless network (SSID) DSL-2740U see WPS PIN on the barcode label on the Network key (PSK) bottom panel of the device...

  • Page 4: System Requirements And Equipment

    DSL-2740U Quick Installation Guide System Requirements and Equipment A computer with any operating system that supports a web browser. • A web browser to access the web-based interface of the router: • ◦ Apple Safari 8 and later ◦ Google Chrome 48 and later ◦...

  • Page 5: Pc With Ethernet Adapter

    DSL-2740U Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Make sure that your PC is powered off. 2. Connect an Ethernet cable between any of four Ethernet ports located on the back panel of the router and the Ethernet port of your PC.
  • Page 6 DSL-2740U Quick Installation Guide Obtaining Address Automatically in OS Windows XP 1. Click the Start button and proceed to the Control Panel > Network and Internet Connections > Network Connections window. 2. In the Network Connections window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
  • Page 7 DSL-2740U Quick Installation Guide 4. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 5. Click the ОК button in the connection properties window. Now your computer is configured to obtain an IP address automatically.
  • Page 8 DSL-2740U Quick Installation Guide Obtaining Address Automatically in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 9 DSL-2740U Quick Installation Guide 6. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 7. Click the OK button in the connection properties window. Now your computer is configured to obtain an IP address automatically.

  • Page 10: Pc With Wi-Fi Adapter

    DSL-2740U Quick Installation Guide PC with Wi-Fi Adapter 1. To connect the router to a DSL line: connect a phone cable between the DSL port of the router and the ADSL OUT port of the splitter. Connect your phone to the PHONE port of the splitter. Then connect another phone cable between a phone jack and the ADSL IN port of the splitter.

  • Page 11: Configuring Wi-Fi Adapter In Os Windows Xp

    3. Search for available wireless networks. 4. In the opened Wireless Network Connection window, select the wireless network DSL-2740U and click the Connect button. 5. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Network key and Confirm network key fields and click the Connect button.

  • Page 12: Configuring Wi-Fi Adapter In Os Windows 7

    DSL-2740U Quick Installation Guide Configuring Wi-Fi Adapter in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 13 Quick Installation Guide 6. In the opened window, in the list of available wireless networks, select the wireless network DSL-2740U and click the Connect button. 7. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Security key field and click the OK button.

  • Page 14: Configuring Router

    DSL-2740U Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface Start a web browser. In the address bar of the web browser, enter the IP address of the router (by default, the following IP address is specified: 192.168.1.1). Press the Enter key.
  • Page 15 DSL-2740U Quick Installation Guide If you configured the device previously, after access to the web-based interface the login page opens. Enter the username (admin) in the Username field and the password you specified in the Password field, then click the LOGIN button.
  • Page 16 DSL-2740U Quick Installation Guide The Summary page displays general information on the router and its software.
  • Page 17 DSL-2740U Quick Installation Guide The Home page displays links to the most frequently used pages with device's settings. Other settings of the router are available in the menu in the left part of the page. Go to the relevant section and select the needed page or run the wizard...

  • Page 18: Initial Configuration Wizard

    DSL-2740U Quick Installation Guide Initial Configuration Wizard In order to start the Initial Configuration Wizard manually, go to the Initial Configuration section. Click the OK button and wait until the factory default settings are restored. Then click the START button.

  • Page 19: Selecting Operation Mode

    DSL-2740U Quick Installation Guide Selecting Operation Mode In order to connect your device to an ADSL line, on the Device mode page, from the Connection method list, select the ADSL value. In this mode you can configure a WAN connection, set your own settings for the wireless network, configure LAN ports to connect an STB or VoIP phone, and set your own password for access to the web-based interface of the device.

  • Page 20: Selecting Ethernet Wan Port

    DSL-2740U Quick Installation Guide Selecting Ethernet WAN Port This configuration step is available for the Ethernet connection method. 1. On the Device connection page, select a LAN port that will be used as the WAN port. 2. Click the NEXT button.
  • Page 21 DSL-2740U Quick Installation Guide Configuring Ethernet WAN Connection You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection. Otherwise contact your ISP.
  • Page 22 DSL-2740U Quick Installation Guide PPPoE, IPv6 PPPoE, PPPoE Dual Stack: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.
  • Page 23 DSL-2740U Quick Installation Guide Configuring ADSL WAN Connection You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection. Otherwise contact your ISP.
  • Page 24 DSL-2740U Quick Installation Guide PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoA: Enter authorization data provided by your ISP (the username (login) in the Username field and the password in the Password field). Click the Show icon ( ) to display the entered password.

  • Page 25: Configuring Wireless Network

    DSL-2740U Quick Installation Guide Configuring Wireless Network 1. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own name for the wireless network or leave the value suggested by the router. 2. In the Password field, specify your own password for access to the wireless network or leave the value suggested by the router (WPS PIN of the device, see the barcode label).
  • Page 26 DSL-2740U Quick Installation Guide 4. If you want to create an additional wireless network isolated from your LAN, select the Enable guest network checkbox. 5. In the Network name field, specify your own name for the guest wireless network or leave the value suggested by the router.

  • Page 27: Configuring Lan Ports For Iptv/Voip

    DSL-2740U Quick Installation Guide Configuring LAN Ports for IPTV/VoIP 1. On the IPTV page, select the Is an STB connected to the device checkbox. 2. Select a free LAN port for connecting your set-top box. 3. For the Ethernet connection method: If the IPTV service is provided via a VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN ID field.
  • Page 28 DSL-2740U Quick Installation Guide 6. On the VoIP page, select the In an IP phone connected to the device checkbox. 7. Select a free LAN port for connecting your IP phone. 8. For the Ethernet connection method: If the VoIP service is provided via a VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN ID field.

  • Page 29: Changing Web-Based Interface Password

    DSL-2740U Quick Installation Guide Changing Web-based Interface Password On this page you should change the default administrator password. You may set any password except admin. Use digits, Latin letters (uppercase and/or lowercase), and other characters available in the US keyboard layout.

  • Page 30: Configuring Local Area Network

    DSL-2740U Quick Installation Guide Configuring Local Area Network Go to the Connections Setup / LAN page. If needed, change the IPv4 address of the router's LAN interface and the mask of the local subnet. To do this, click the IPv4 tab and specify needed values in the IP address and Subnet mask fields in the Local IP Address section.
  • Page 31 DSL-2740U Quick Installation Guide IPv4 address assignment. By default, the built-in DHCP server of the router assigns IPv4 addresses to the devices of the LAN. If you want to manually assign IPv4 addresses, disable the DHCP server (click the IPv4 tab and select the Disable value from the Mode of dynamic IP address assignment drop-down list in the Dynamic IP Addresses section).

  • Page 32: Specifications

    DSL-2740U Quick Installation Guide SPECIFICATIONS Hardware · RTL8676S Processor · 32MB, SDRAM · Flash 4MB, SPI · RJ-11 ADSL port Interfaces · 4 10/100BASE-TX LAN ports · POWER LEDs · 4 LAN LEDs · WLAN · · · INTERNET ·...
  • Page 33 DSL-2740U Quick Installation Guide DSL Parameters · ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 ADSL Standards (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs) · ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A ·...
  • Page 34 DSL-2740U Quick Installation Guide Software · Network Address Translation (NAT) Firewall functions · Stateful Packet Inspection (SPI) · IP filter · IPv6 filter · MAC filter · URL filter · · Prevention of ARP and DDoS attacks · Virtual servers ·...
  • Page 35 DSL-2740U Quick Installation Guide Wireless Module Parameters · IEEE 802.11b: 1, 2, 5.5, and 11Mbps Wireless connection rate · IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps · IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to...
  • Page 36 DSL-2740U Quick Installation Guide Physical Parameters · Dimensions (L x W x H) 175 x 133 x 29 mm (6.89 x 5.24 x 1.14 in) · 210 g (0.46 lb) Weight Operating Environment · Power Output: 12V DC, 0.5A ·...

  • Page 37: Safety Rules And Conditions

    DSL-2740U Quick Installation Guide SAFETY RULES AND CONDITIONS Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents.

  • Page 38: Technical Support

    Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
