D-Link DSL-2600u Quick Installation Manual

D-Link DSL-2600u Quick Installation Manual

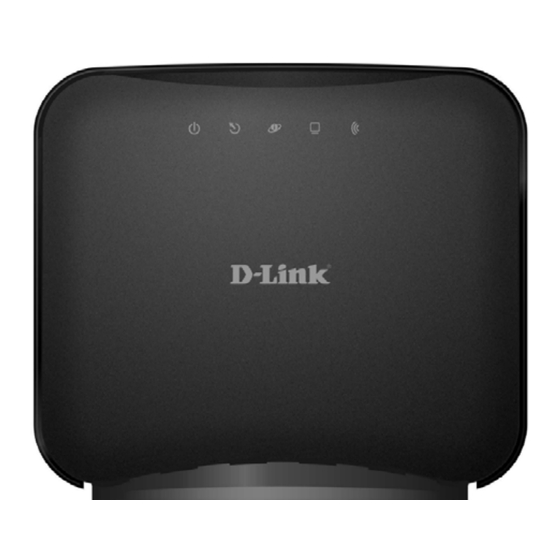

Adsl/ethernet router with wi-fi
Hide thumbs Also See for DSL-2600u:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL-2600u and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-Link DSL-2600u

Summary of Contents for D-Link DSL-2600u

  • Page 3 Quick Installation Guide...

  • Page 4: Before You Begin

    BEFORE YOU BEGIN ‫ﻗﺒﻞ ﺍﺯ ﺍﻳﻨﻜﻪ ﺷﺮﻭﻉ ﻛﻨﻴﺪ‬ Delivery Package ‫ﻣﺤﺘﻮﻳﺎﺕ ﺟﻌﺒﻪ‬ • Wireless router DSL-2600U ‫ﺭﻭﺗﺮ ﻭﺍﻳﺮﻟﺲ‬ • DSL-2600U • Power adapter DC 12V/0.5A ‫ﺁﺩﺍﭘﺘﻮﺭ ﺑﺮﻕ‬ • DC 12V/0.5A • RJ-11 telephone cable ‫ﻛﺎﺑﻞ ﺗﻠﻔﻦ‬ • RJ-11 • Straight-through Ethernet cable (CAT 5E) ‫ﻛﺎﺑﻞ...

  • Page 5: Default Settings

    Default Settings ‫ﺗﻨﻈﻴﻤﺎﺕ ﭘﻴﺶ ﻓﺮﺽ‬ IP address of router 192.168.1.1 ‫ﺩﺳﺘﮕﺎﻩ ﺭﻭﺗﺮ‬ ‫ﺁﺩﺭﺱ‬ 192.168.1.1 Username (login) admin ‫ﻧﺎﻡ ﻛﺎﺭﺑﺮﻱ‬ admin Password admin ‫ﺭﻣﺰ ﻋﺒﻮﺭ‬ admin Name of wireless network Dlink ‫ﻧﺎﻡ ﺷﺒﻜﻪ ﻭﺍﻳﺮﻟﺲ‬ Dlink...

  • Page 6: System Requirements And Equipment

    System Requirements and Equipment ‫ﺣﺪﺍﻗﻞ ﺳﻴﺴﺘﻢ ﻣﻮﺭﺩ ﻧﻴﺎﺯ‬ • A computer with any operating system that supports a web browser. . ‫ﻛﺎﻣﭙﻴﻮﺗﺮ ﺑﺎ ﻫﺮ ﺳﻴﺴﺘﻢ ﻋﺎﻣﻠﻲ ﻛﻪ ﻣﺮﻭﺭﮔﺮ ﻭﺏ ﺭﺍ ﭘﺸﺘﻴﺒﺎﻧﻲ ﻛﻨﺪ‬ • • A web browser to access the web-based interface of the Router: Windows Internet Explorer, Mozilla Firefox, or Opera.

  • Page 7: Pc With Ethernet Adapter

    CONNECTING TO PC (OS WINDOWS XP) ‫ﺍﺗﺼﺎﻝ ﺑﻪ ﻛﺎﻣﭙﻴﻮﺗﺮ ﺑﺎ ﺳﻴﺴﺘﻢ ﻋﺎﻣﻞ‬ WINDOWS XP PC with Ethernet Adapter ‫ﻛﺎﻣﭙﻴﻮﺗﺮ ﺑﺎ ﻛﺎﺭﺕ ﺷﺒﻜﻪ ﺍﺗﺮﻧﺖ‬ Make sure that your PC is powered off. . ‫ﻣﻄﻤﺌﻦ ﺷﻮﻳﺪ ﻛﺎﻣﭙﻴﻮﺗﺮ ﺷﻤﺎ ﺧﺎﻣﻮﺵ ﺍﺳﺖ‬ – Connect an Ethernet cable between the Ethernet port located on the back panel of the router and the Ethernet port of your ‫ﻳﻚ‬...

  • Page 8: Dhcp Client

    Now you should configure your PC to obtain an IP address automatically (as DHCP client). ‫ﺍﻛﻨﻮﻥ ﺑﺎﻳﺪ ﻛﺎﻣﭙﻴﻮﺗﺮ ﺧﻮﺩ ﺭﺍ ﺑﻪ ﮔﻮﻧﻪ ﺍﻱ ﺗﻨﻈﻴﻢ ﻛﻨﻴﺪ ﺗﺎ ﺑﻪ ﺻﻮﺭﺕ ﺧﻮﺩﻛﺎﺭ ﺁﺩﺭﺱ‬ ‫ﺩﺭﻳﺎﻓﺖ ﻧﻤﺎﻳﺪ . ) ﺑﻪ ﻋﻨﻮﺍﻥ ﻳ ﻚ‬ DHCP Client 1.

  • Page 9: Obtain An Ip Address Automatically

    3. In the Local Area Connection Properties window, on the General tab, in the This connection uses the following items section, select the Internet Protocol (TCP/IP) line. Click the Properties button. ‫ﺩﺭ ﻗﺴﻤﺖ‬ ‫ﺩﺭ ﭘﻨﺠﺮﻩ‬ Local Area Connection Properties – ‫ﺩﺭ...

  • Page 10: Pc With Wi-Fi Adapter

    PC with Wi-Fi Adapter ‫ﻛﺎﻣﭙﻴﻮﺗﺮ ﺑﺎ ﺁﺩﺍﭘﺘﻮﺭ‬ Wi-Fi To connect the router to a DSL line: connect a phone cable between the DSL port of the router and the MODEM port of the splitter. Connect your phone to the PHONE port of the splitter.
  • Page 11 4. Turn on Wi-Fi: push the relevant button on the back panel of the router. . ‫ﺭﺍ ﺭﻭﺷﻦ ﻛﻨﻴﺪ : ﺩﻛﻤﻪ ﻣﺮﺑﻮﻃﻪ ﺭﺍ ﺩﺭ ﭘﺸﺖ ﺭﻭﺗﺮ ﻓﺸﺎﺭ ﺩﻫﻴﺪ‬ Wi-Fi 5. Turn on your PC and wait until your operating system i s completely loaded.
  • Page 12 In the opened wireless network connection window, select the needed wireless network (DSL -2600U) and click the Connect button. ‫ﺩﺭﭘﻨﺠﺮﻩ ﻣﺮﺑﻮﻁ ﺑﻪ ﺷﺒﻜﻪ ﻫﺎﻱ ﻭﺍﻳﺮﻟﺲ ، ﺷﺒﻜﻪ ﻭﺍﻳﺮﻟﺲ ﻣﻮﺭﺩ ﻧﻈﺮ ﺧﻮﺩ ﺭﺍ‬ (DSL-2600U) – connect . ‫ﻛﻠﻴﻚ ﻛﻨﻴﺪ‬ ‫ﺍﻧﺘﺨﺎﺏ ﻛﺮﺩﻩ. ﺑﺮ ﺭﻭﻱ ﮔﺰﻳﻨﻪ‬...

  • Page 13: Configuring Router

    CONFIGURING ROUTER ‫ﺗﻨﻈﻴﻢ ﺭﻭﺗﺮ‬ Connecting to Web-based Interface ‫ﺭﻭﺗﺮ‬ ‫ﺍﺗﺼﺎﻝ ﺑﻪ ﺻﻔﺤﻪ‬ Start a web browser . ‫ﻳﻚ ﻣﺮﻭﺭﮔﺮ ﻭﺏ ﺑﺎﺯ ﻛﻨﻴﺪ‬ – 2. In the address bar of the web browser, enter the IP address of the router (by default, the following IP address is specified: 192.168.1.1).
  • Page 14 I f the error “The page cannot be displayed” (or “Unable to display the page”/“Could not connect to remote server”) occurs upon connecting to the web-based interface of the router, make sure that you have properly connected the router to your computer.

  • Page 15: Configuring Connection To The Internet

    Configuring Connection to the Internet ‫ﺗﻨﻈﻴﻢ ﺭﻭﺗﺮ ﺑﺮﺍﻱ ﺍﺭﺗﺒﺎﻁ ﺑﺎ ﺍﻳﻨﺘﺮﻧﺖ‬ Y ou should configure your WAN connection in accordance with data provided by your Internet service provider (ISP) Make sure that you have obtained all necessary information prior to configuring your WAN connection.

  • Page 16: Wan Connection

    3. In the WAN CONNECTION section, choose a wan connection you wish to use from the drop-down list. ‫ﻛﻪ ﻣﻲ ﺧﻮﺍﻫﻴﺪ ﺗﻨﻈﻴﻤﺎﺕ‬ ‫، ﻧﻮﻉ ﺍﺗﺼﺎﻟﻲ‬ ‫ﺩﺭ ﻗﺴﻤﺖ‬ WAN CONNECTION . ‫ﺍﻧﺘﺨﺎﺏ ﻛﻨﻴﺪ‬ ‫ﺁﻥ ﺭﺍ ﺍﻧﺠﺎﻡ ﺩﻫﻴﺪ ﺍﺯ ﻣﻨﻮﻱ ﺑﺎﺯﺷﻮﻧﺪﻩ‬ When you have selected a WAN Connection, the VPI and VCI will show in the relevant fields.

  • Page 17: Dynamic Ip Address

    You can choose the Dynamic IP Address type if your ISP didn’t provide you with IP Address information and /or a username and password. ‫ﺑﻪ ﺷﻤﺎ ﺍﻃﻼﻋﺎﺕ ﻣﺮﺑﻮﻁ‬ ‫ﺭﺍ ﺍﻧﺘﺨﺎﺏ ﻛﻨﻴﺪ ﺍﮔﺮ‬ ‫. ﻣﻲ ﺗﻮﺍﻧﻴﺪ‬ Dynamic IP Address . ‫ﻭ ﻳﺎ ﻧﺎﻡ ﻛﺎﺭﺑﺮﻱ ﻭ ﺭﻣﺰ ﻋﺒﻮﺭ ﺭﺍ ﺍﺭﺋﻪ ﻧﻜﺮﺩﻩ ﺑﺎﺷﺪ‬ ‫ﺑﻪ‬...

  • Page 18: Internet Connection Type

    For the PPPoE /PPPoA connection type, enter authorization data provided by your ISP in the PPPOE/PPPOA INTERNET CONNECTION TYPE section (the username (login) in the PPP Username field and the password in the Password fields). ‫ﮔﺮﻓﺘﻪ ﺍﻳﺪ ، ﺩﺭ ﻗﺴﻤﺖ‬ ‫ﺍﻃﻼﻋﺎﺗﻲ...

  • Page 19: Configuring Local Area Network

    Click the Save Settings button. . ‫ﺭﺍ ﻛﻠﻴﻚ ﻛﻨﻴﺪ‬ ‫. ﺩﻛﻤﻪ‬ Save Settings Configuring Local Area Network ‫ﺗﻨﻈﻴﻤﺎﺕ ﻣﺮﺑﻮﻁ ﺑﻪ‬ 1. Go to the SETUP / LAN Setup page and select the ROUTER SETTINGS. If needed, change the IP address and subnet mask for the LAN interface of the router in the Router IP Address and Subnet mask fields of the IP settings section.
  • Page 20 2. By default, the DHCP server of the router is enabled. If you want to manually assign IP addresses to devices of your LAN, disable the DHCP server (deselect Enable DHCP Server). ‫ﺑﺮ ﺭﻭﻱ ﺭﻭﺗﺮ ﻓﻌﺎﻝ ﺍﺳﺖ . ﺍﮔﺮ ﻧﻴﺎﺯ ﺑﻪ ﺗﻨﻈﻴﻢ ﺁﺩﺭﺳﻬﺎﻱ‬ ‫.

  • Page 22: Wireless Network Settings

    3. Go to WIRELESS NETWORK SETTINGS, you can access available wireless network by selecting Enable. ‫، ﻣﻲ ﺗﻮﺍﻧﻴﺪ ﺑﺎ ﺍﺗﻨﺨﺎﺏ‬ ‫- ﺩﺭ ﺑﺨﺶ‬ WIRELESS NETWORK SETTINGS . ‫ﺑﻪ ﺷﺒﻜﻪ ﻭﺍﻳﺮﻟﺲ ﺩﺳﺘﺮﺳﻲ ﺩﺍﺷﺘﻪ ﺑﺎﺷﻴﺪ‬ Enable Wireless 4. Go to WIRELESS SECURITY MODE, the default settings is None.
  • Page 23 6 . In the Authentication, you can choose different type (such as open or shared key option or shared key option) from the drop-down list. ‫، ﻣﻲ ﺗﻮﺍﻧﻴﺪ ﺭﻭﺷﻬﺎﻱ ﻣﺨﺘﻠﻒ ﺍﺣﺮﺍﺯ ﻫﻮﻳﺖ ﻣﺎﺑﻴﻦ ﻛﺎﻣﭙﻴﻮﺗﺮ ﻭ‬ ‫- ﺩﺭ ﻗﺴﻤﺖ‬ Authentication . ‫ﺭﻭﺗﺮ ﺭﺍ ﺍﺯ ﻣﻨﻮﻱ ﺑﺎﺯ ﺷﻮﻧﺪﻩ ﺍﻧﺘﺨﺎﺏ ﻛﻨﻴﺪ‬ 7 .
  • Page 24 Changing Administrator Password ‫ﺗﻐﻴﻴﺮ ﺭﻣﺰ ﻋﺒﻮﺭ‬ Administrator It is highly recommended to change the administrator password upon initial configuration. This helps you to improve your network security. ‫ﺭﻭﺗﺮ ﺧﻮﺩ ﻫﻨﮕﺎﻡ ﺍﻧﺠﺎﻡ ﺗﻨﻈﻴﻤﺎﺕ‬ ‫ﺍﻛﻴﺪﺍ ﺗﻮﺻﻴﻪ ﻣﻲ ﮔﺮﺩﺩ ﺭﻣﺰ ﻋﺒﻮﺭ‬ Administrator ‫ﺍﻭﻟﻴﻪ ﺗﻐﻴﻴﺮ ﺩﻫﻴﺪ . ﺍﻳﻦ ﻛﺎﺭ ﺑﻪ ﺷﻤﺎ ﻛﻤﻚ ﺧﻮﺍﻫﺪ ﻛﺮﺩ ﻛﻪ ﺍﻣﻨﻴﺖ ﺷﺒﻜﻪ ﺧﻮﺩ ﺭﺍ ﺑﻬﺒﻮﺩ‬ .

  • Page 25: Saving Settings To Non-Volatile Memory

    3. Click the Apply Settings button. . ‫ﻛﻠﻴﻚ ﻛﻨﻴﺪ‬ ‫ﺑﺮ ﺭﻭﻱ‬ Apply Settings R emember or write down the new password for the administrator account. In case of losing the new password, you can access the settings of the router only after restoring the factory default settings via the hardware Reset button.

  • Page 26: Technical Support

    ‫ﻣﺎ ﻣﻲ ﺗﻮﺍﻧﻴﺪ ﺩﺭ ﺳﺎﻳﺖ ﻣﺎ ﺑﻪ ﺁ ﺧﺮﻳﻦ ﻧﺮﻡ ﺍﻓﺰﺍﺭﻫﺎﻱ ﺑﻪ ﺭﻭﺯ ﺷﺪﻩ ﻭ ﻣﺴﺘﻨﺪﺍﺕ‬ ‫ﺵ‬ . ‫ﻣﺮﺑﻮﻁ ﺑﻪ ﻛﺎﺭﺑﺮﺍﻥ ﻣﻮﺩﻡ ﺧﻮﺩ ﺩﺳﺘﺮﺳﻲ ﭘﻴﺪﺍ ﻛﻨﻴﺪ‬ D-Link provides its customers with free support within the product's warranty period. .‫ﺑﻪ ﻣﺸﺘﺮﻳﺎﻥ ﺧﻮﺩ ﺧﺪﻣﺎﺕ ﺭﺍﻳﮕﺎﻥ ﺩﺭ ﻃﻮﻝ ﻣﺪﺕ ﮔﺎﺭﺍﻧﺘﻲ ﺍﺭﺍﺋﻪ ﻣﻲ ﻛﻨﺪ‬...
  • Page 27 TECHNICAL SUPPORT D-Link Middle East - Dubai, U.A.E. Egypt Plot No. S31102, 1, Makram Ebeid Street - City Lights Building Jebel Ali Free Zone South, Nasrcity - Cairo, Egypt P.O.Box 18224, Dubai, U.A.E. Floor 6, office C2 Tel: +971-4-8809022 Tel.: +2 02 26718375 - +2 02 26717280...
