AUTOMATE

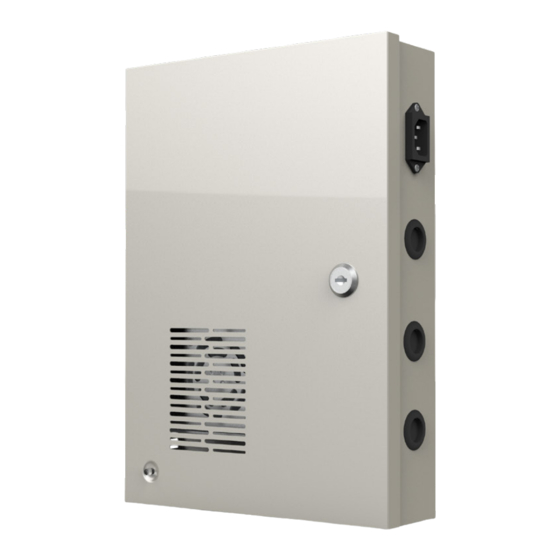

DC Power Distribution Panel
AUTOMATE | DC Power Distribution Panel provides power for up to 18 separate ARC DC motors.
Higher 15V output allows for greater cable lengths from motor to power panel, freeing up routing
options within an installation.
Removes the need for multiple individual power adaptors for each DC motor in an installation,
combining each power source into a single location. Channels may also be wired in parallel to
provide additional power to larger motors. Additional information and updates are available at
https://www.rolleaseacmeda.com
Part #: MT03-0301-411005 Automate |15V DC,24A,360W, 18CH Power 100-240VAC
FEATURES:
Capacity for up to 18 ARC DC motors (25mm and 28mm motors)
Ability to parallel connect motor supplies for higher current motors (35mm and 45mm motors)
LED status indication for checking whether power is being applied to panel
LED status indication for each individual motor supply
INSTR. MT03-0301-411005 V1.7 JAN 2021
DC POWER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTOMATE MT03-0301-411005 and is the answer not in the manual?

Questions and answers

Summary of Contents for rollease acmeda AUTOMATE MT03-0301-411005

  • Page 1 AUTOMATE ™ DC Power Distribution Panel DC POWER AUTOMATE | DC Power Distribution Panel provides power for up to 18 separate ARC DC motors. Higher 15V output allows for greater cable lengths from motor to power panel, freeing up routing options within an installation.
  • Page 2: Table Of Contents

    3.4 Wiring Diagram – Two Wire Entry Connections in Parallel (MTDCRF45/35) 3.5 JST Connector Recommendations for Custom Cable Adaptors 3.6 Status LED Indication SPECIFICATIONS TROUBLESHOOTING WIRE GAUGE DIMENSIONS APPENDIX CONTENTS ROLLEASE ACMEDA 2 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 3: Features

    (Quick Blow Fuse 3.15A M205) 18 Channel Status LEDs Plastic Plugs (For cable routing) Potentiometer for output voltage adjustment Cooling fan 10. Terminal Block Note: Keys can’t be replaced if lost. ROLLEASE ACMEDA 3 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 4: Safety Instructions

    Assurez-vous que le câble d’alimentation du moteur et l’antenne sont dégagés et protégés des pièces mobiles. • Si le câble ou le connecteur d’alimentation est endommagé, ne l’utilisez pas. ROLLEASE ACMEDA 4 | Automate Installation Instructions | DC Power Distribution Panel...
  • Page 5 Ne pas jeter avec les déchets ordinaires. Veuillez recycler les piles et les produits électriques endommagés de manière appropriée. 5005833 5 0 1 4 3 6 0 ROLLEASE ACMEDA 5 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 6: Installation

    16 AWG 180m 16 AWG 16 AWG 185m - 210m 16 AWG 215m *Refer to section 6 on page 11 for detailed American Wire Gauge (AWG) dimensions ROLLEASE ACMEDA 6 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 7: Motor Power Distribution Setup

    MT03-0304-050007 - Automate|1.8M/6FT 3 PIN US Plug AC Power Cord Adaptor (required one per Panel) Cable Run MT03-0301-069012 - Automate Connection Harness for DCRF Motors-JST sc (required one per motor) ROLLEASE ACMEDA 7 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 8: Wiring Diagram - Individual Connection (Mtdcrf28/25)

    En raison de la limite de 1,33 A par canal, le courant de travail peut être doublé à 2,66 A avec une configuration en parallèle, comme indiqué ci-des- sus, permettant la connexion de moteurs de 45 mm et 35 mm. ROLLEASE ACMEDA 8 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 9: Jst Connector Recommendations For Custom Cable Adaptors

    Female (Power Output) Grey Dashes (Positive) Male (Motor Input) Solid White (Positive) JST Connector Recommendations for Custom Cable Adaptors Rollease Acmeda recommends the following JST connectors for DC power connections: RECOMMENDED JST CONNECTORS DESCRIPTION PART NO. MANUFACTURER Digikey.com PART NO.
  • Page 10: Status Led Indication

    11.4 - 15 VDC Maximum Output Current (all 18 channels) 24 A Power Output Rating 360 W Single Channel Absolute Maximum Current Output 1.33 A Ingress Protection IP20 ROLLEASE ACMEDA 10 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 11: Troubleshooting

    0.8128 mm (0.032 in) 0.518 mm (0.00080 in 18 AWG 1.02362 mm (0.0403 in) 0.823 mm (0.00128 in 16 AWG 1.29032 mm (0.0508 in) 1.31 mm (0.00203 in ROLLEASE ACMEDA 11 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 12: Appendix Contents

    A.1 PULSE 2.0 HUB - ADDITIONAL INSTALLATION/SET UP INSTRUCTIONS A.2 ADJUSTMENT PROCEDURE A.3 TROUBLE SHOOTING A.4 NOTES APPENDIX 1 | DC POWER DIST. PANEL + PULSE 2.0 HUB & APP. ROLLEASE ACMEDA 12 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 13: Pulse 2.0 Hub - Additional Installation/Set Up Instructions

    Philips Head screwdriver. MTDCRF-TILT-1 When motors are to be controlled via the MTDCRF25-1.1 Automate Pulse 2 Hub, the maximum MTDCRF28-2 allowable voltages for each motor is as shown: MT01-3001-069001 ROLLEASE ACMEDA 13 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 14: Trouble Shooting

    Adjust Trim-Pot to increase output voltage updating App animation and motor position Voltage at motor terminal is too high/too Adjust Trim-Pot to decrease/increase the output Motor showing as offline voltage ROLLEASE ACMEDA 14 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 15: Notes

    NOTES ROLLEASE ACMEDA 15 | Automate Installation Instructions | DC Power Distribution Panel ™...
  • Page 16 ROLLEASE ACMEDA | AUSTRALIA 110 Northcorp Boulevard, Broadmeadows VIC 3047 T +61 3 9355 0100 | F +61 3 9355 0110 ROLLEASE ACMEDA | USA 7th Floor / 750 East Main Street, Stamford, CT 06902 6320 T +1 800 552 5100 | F +1 203 964 0513...
