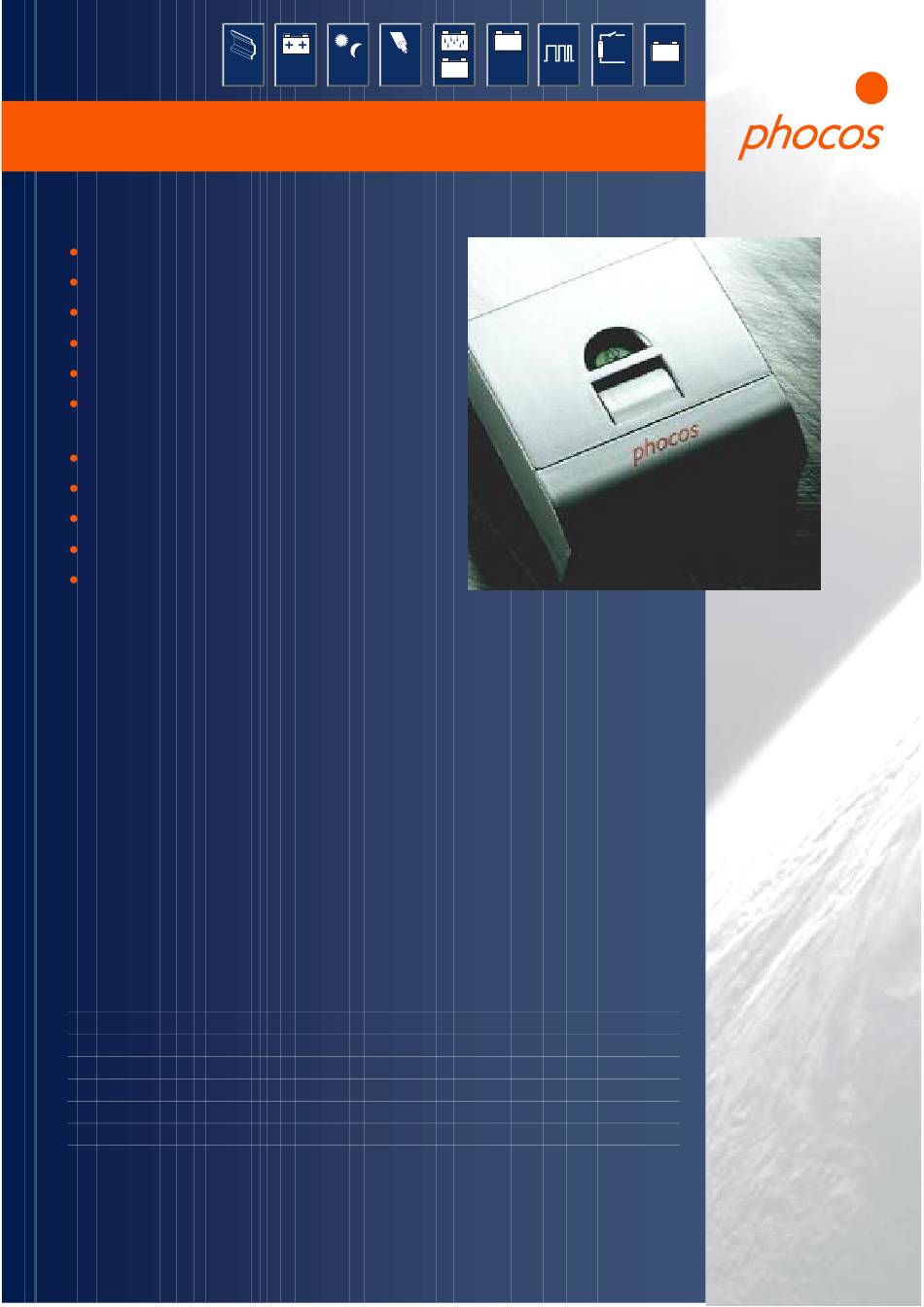

Phocos CX Series User Manual

DIN
Rail
Mounting
CX10, CX20, CX40
Solar Charge Regulator with LC Display
Battery State-of-Charge display LCD
Charge and discharge status display
Acoustic load disconnect pre-warning
Load status indication
Choose between 3 load disconnect algorithms
boost/absorption/float PWM-regulation (series
type)
Prepared for DIN rail mounting
Automatic 12 / 24 Volt detection
Integrated temperature compensation
Covered terminals (up to 16mm² wire size)
Full solid-state protection

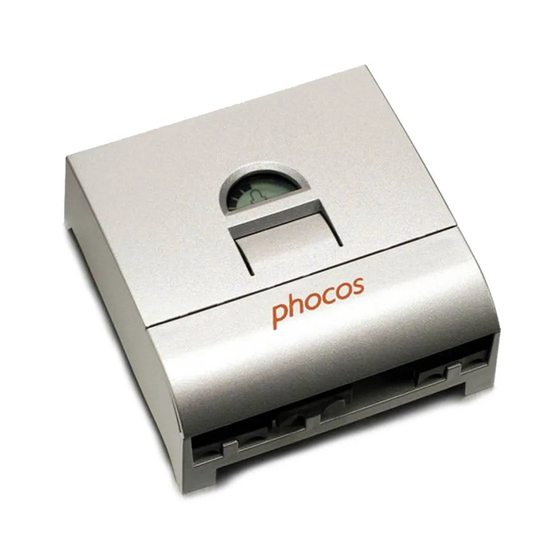

The CX series is a sophisticated solar charge regulator family with exceptional features
in this price range. Beside a perfect PWM regulation with integrated temperature
compensation the controllers provide extraordinary display-, programming- and safety
functions. The battery state of charge is clearly displayed with a bar chart, as well as
energy flows from and to the battery and the load status (e.g. overload, load short
circuit). The deep discharge protection function can be set up to three different modes:
voltage controlled, SOC controlled or adaptive (fuzzy logic).
Acoustic warnings are built in, as well as a programmable nightlight function.
The CX also provides a built-in excess energy management function which means that
in combination with especially designed loads (e.g. Phocos Solar Refrigerators/Coolers
SF32E, SF50E) it is possible to make use of excess energy which would be lost
otherwise because of the overcharge protection of the battery. A better utilization of
the solar system is the benefit.
The compact case design is prepared for DIN rail mounting (mounting device available
as an accessory).
CX10
Charge current max. 10 A
Load current max. 10 A
System voltage 12/24 V
Self power consumption < 4 mA
Dimensions (wxhxd) 89x90x39 mm
Type of protection IP20
Datasheet_CX_ENG
Excess
GEL
16mm²
Energy Nightlight
AWG #6
Management
Function
CX20
20 A
20 A
12/24 V
< 4 mA
89x90x39 mm
IP20
Subject to change without notice
Adaptive
Deep
Discharge Series
PWM
Protection
Regulation
CX40
40 A
40 A
12/24 V
< 4 mA
89x90x39 mm
IP20
07.03.2005
12 & 24 V
