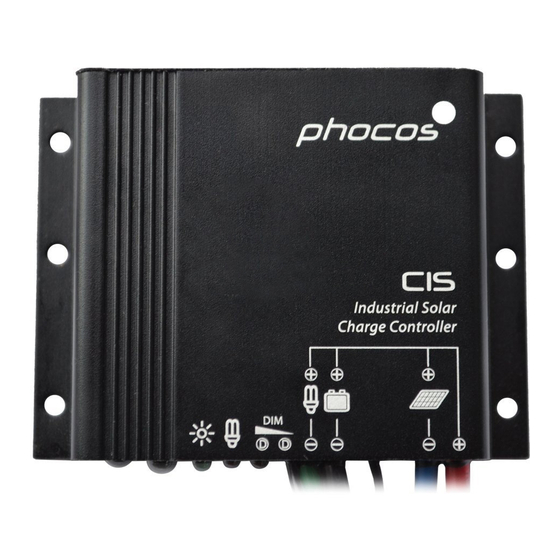

Phocos CIS Quick Start Manual

Quick start CIS charge controller (positive grounded)
Installation recommendations valid for both versions (CIS Dimming and CIS Dual Load):

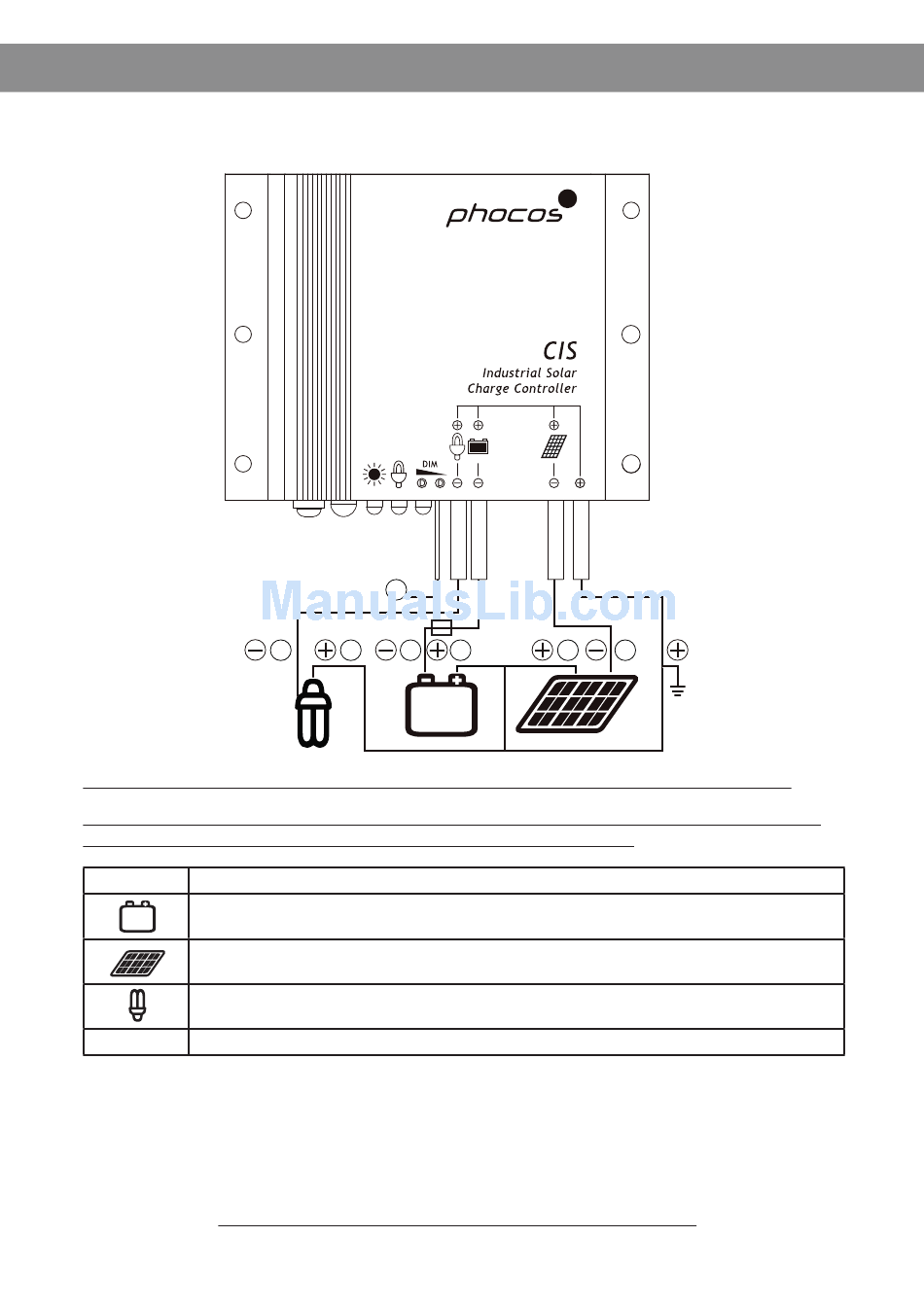

1. Detailed installation wiring
To dimming terminal of
LED driver electronics
IMPORTANT: Connect wires in the order indicated 1 2 3 4 5 6 7 to avoid installation faults!
VERY IMPORTANT: When disconnecting the charge controller, the reverse order (7 6 5 4 3 2 1)
must be observed or permanent damage to the controller may result!
Step Function
1 Positive battery wire
2 Negative battery wire
3 Positive panel wire
4 Negative panel wire
5 Positive load wire
6 Negative load wire
DIM
7 Dimming signal wire
* Note 1: The COMMON + is consists of one single conductor exiting from the charge controller:
This conductor is used to connect to multiple external system components like PV panel,
battery and load. Please use a high quality connector rated for this purpose.
Note 2: Previous versions of the CIS controller presented all wires in black color.
From the charge controller: this conductor is connected to multiple devices like PV panel,
battery and load. Please use a high quality connector for these interconnections.
7
Fuse
6 5 2
Cable marker
COMMON* +
BATTERY -
COMMON* +
SOLAR -
COMMON* +
LOAD -
--
1 3 4
Wire size (cross section) Color
2.5 mm
2.5 mm
2.5 mm
2.5 mm
2.5 mm
2.5 mm
0.6 mm
