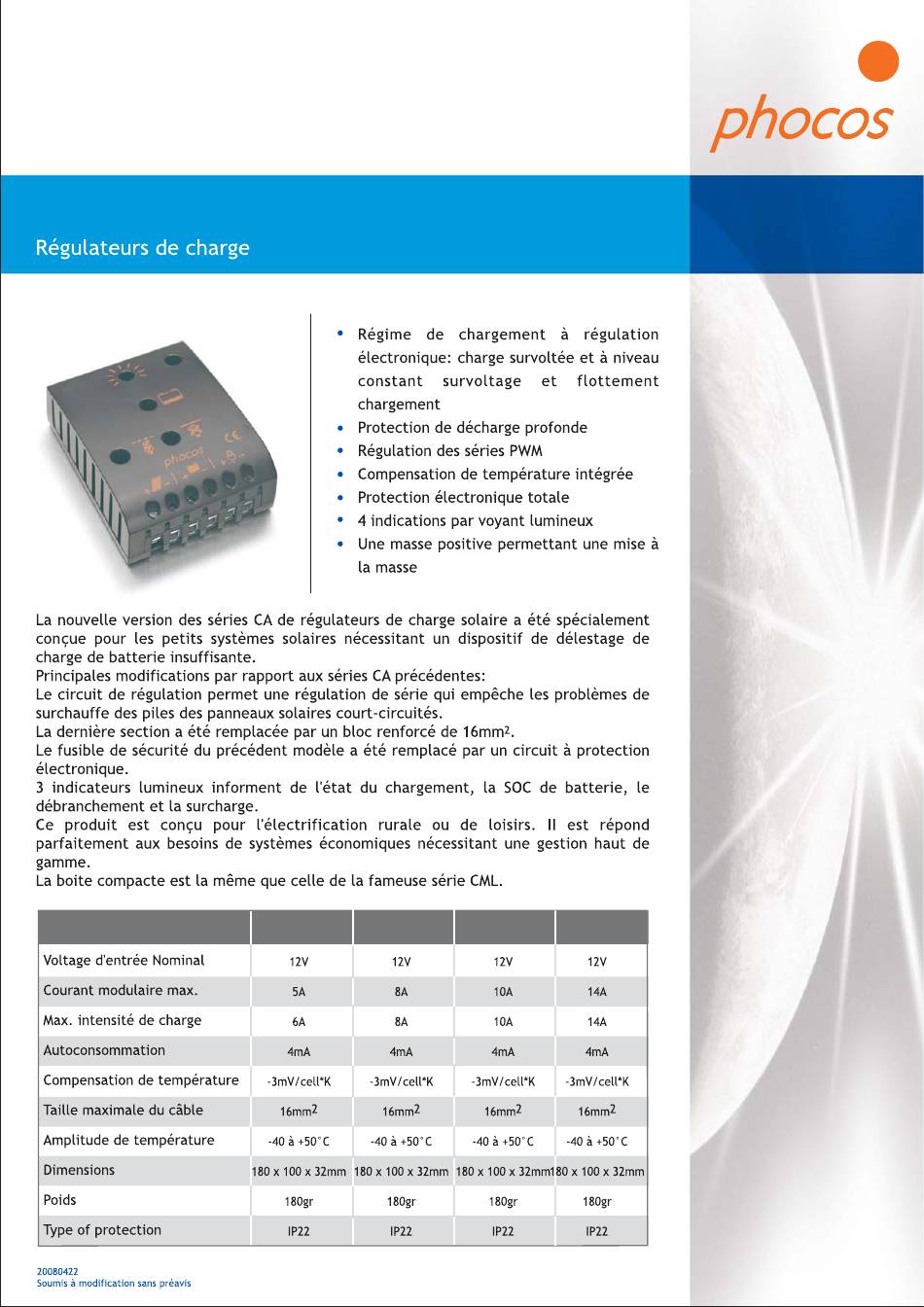

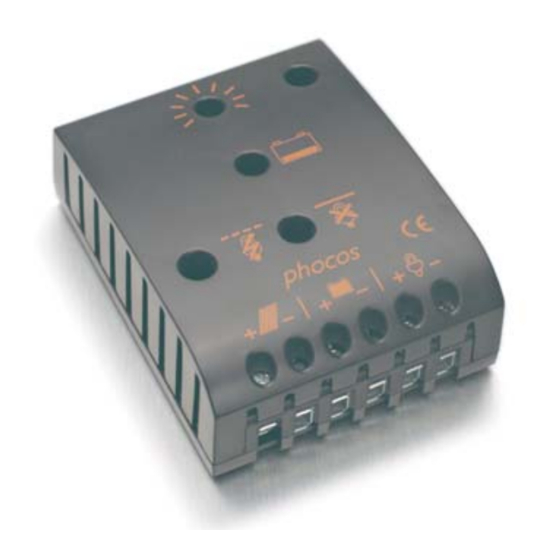

- Page 1 Datasheet_CA_FRA Final Version CA06-2.1, CA08-2.1, CA10-2.1, CA14-1.1 Phocos AG, Germany info@phocos.com Phocos China Ltd., China Info-china@phocos.com Phocos India Solar Pvt. Ltd., India Info-india@phocos.com Phocos Latin America S.R.L, Bolivia Info-latinamerica@phocos.com Phocos Rep. Office Australia, Australia Info-australia@phocos.com CA08-2.1 Type CA06-2.1 CA10-2.1 CA14-1.1 Phocos Rep.
- Page 2 Phocos CA CID: 181802511...
- Page 3 CONTENTS 1~13 14~26 27~39 40~52 53~65 66-77...
- Page 4 Phocos CA Solar - Laderegler Bedienungsanleitung (Deutsch)
- Page 5 Funktionsbeschreibung...
-
Page 6: Montage Und Anschluss
Montage und Anschluss... - Page 9 Erdung des Solarsystems...
- Page 10 Inbetriebnahme Hinweise zum Betrieb...
- Page 11 Anzeigefunktionen im Normalbetrieb Ladungsanzeige Batteriespannung Lastzustandsanzeige Ladungsanzeige...
- Page 12 Batteriespannung gering sehr gering (LED aus) (LED an) (LED blinkt) Tiefentladeschutz (LVD)
- Page 13 Schutzfunktionen ------- ------- -------...
- Page 14 Fehlerbeschreibung Fehler Anzeige Ursache Abhilfe Allgemeine Sicherheits- und Verwendungshinweise...
- Page 15 Sicherheitshinweise Haftungsausschluss...
-
Page 16: Technische Daten
Technische Daten ISO9001:2000 RoHS... -
Page 17: Solar Charge Controller
Phocos CA Solar Charge Controller User Manual (English) Dear customer, Thank you very much for buying this Phocos product. Please read the instructions carefully and thoroughly before using the product. -
Page 18: Description Of Functions
Your new CA controller is a state-of-the art device which was developed in accordance with the latest available technical standards. It comes with a number of outstanding features, such 3 LEDs for a clear, readable display of the state of charge 16 mm connector clamps Temperature compensation... -
Page 19: Mounting And Connecting
Mounting and Connecting The controller is intended for indoor use only. Protect it from direct sunlight and place it in a dry environment. Never install it in humid rooms (like bathrooms). The controller measures the ambient temperature to determine the charging voltage. Controller and battery must be installed in the same room. - Page 20 Keep in mind the recommended wire length (min. 30 to max approx. 100 cm) and the wire size: CA06-2.1: min. 2.5mm CA08-2.1: min. 4mm CA10-2.1: min. 6mm CA14-1.1: min. 10mm WARNING: If the battery is connected with reverse polarity, the charge controller will also give the wrong polarity on the load terminals.
- Page 21 Keep in mind the recommended wire size: CA06-2.1: min. 2.5mm CA08-2.1: min. 4mm CA10-2.1: min. 6mm CA14-1.1: min. 10mm REMARK: place positive and negative wires leading to the solar generator close to each other to minimize electromagnetic effects.
- Page 22 Grounding the Solar System Be aware that the positive terminals of the controller are connected internally and therefore have the same electrical potential. If any grounding is required, always do this on the positive wires. REMARK: If the device is used in a vehicle which has the battery negative on the chassis, loads connected to the regulator must not have an electric connection to the car body.
-
Page 23: Starting Up The Controller
Starting up the Controller System Voltage The controller is intended for use at 12V system voltage. Battery Type The controller does not generate an equalization charge, and is therefore suitable for use with lead acid batteries with liquid electrolyte (vented battery) and lead acid batteries with solid electrolyte ('gel' or 'fleece' type). -
Page 24: Display Functions In Normal Operation
Display Functions in normal operation The controller is equipped with 3 LEDs for display of the operating status. Charge display Battery voltage display Load status display In normal operation mode, the controller displays the charging status, the status of battery voltage, and the status of the load output. - Page 25 Battery voltage display OK (LED off) very low low (LED on) (LED flashing) When the battery voltage is indicated as low, it is recommended to use the remaining energy economically. The charge controller will subsequently switch off the load. Load status display In case of deep discharge or overload/short-circuit, the load output is switched off.
-
Page 26: Safety Features
Safety Features The controller is protected against improper installation or use: At the solar At the battery At the load terminal terminal terminal Battery connected with correct Unrestricted Normal operation Unrestricted polarity Battery connected Yes, if only the Unrestricted Unrestricted with wrong polarity battery is connected. -
Page 27: Error Description
Error Description Error Display Reason Recomendation Load will Battery is low reconnect as soon (LED on) as battery is Loads are recharged. not supplied Switch off all loads. Overcurrent/ Remove short circuit. Short circuit Controller will switch of loads on load automatically (LED flashing) after max 1 minute. -
Page 28: Liability Exclusion
Safety Recommendations Batteries store a large amount of energy. Never short circuit a battery under any circumstances. We recommend connecting a fuse (slow acting type) directly to the battery. Batteries can produce flammable gases. Avoid making sparks, using fire or any naked flame under any circumstances. Make sure that the battery room is ventilated. -
Page 29: Technical Data
Dimensions Weight Max. wire size Self consumption Ambient temperature range Case protection Subject to change without notice. Version: 20080122 ISO9001:2000 Made in one of the following countries: Germany - China - Bolivia - India Phocos AG - Germany RoHS www.phocos.com... - Page 30 Phocos CA...
- Page 35 Toma de tierra del Sistema Solar...
- Page 36 Activar el controlador Recomendaciones de Uso...
- Page 38 bajo muy bajo (LED encendida) (LED haciendo flashes) Visualización del estado del consumo...
-
Page 39: Características De Seguridad
Características de Seguridad ------- ------- -------... - Page 40 Generales sobre Seguridad y Manejo...
- Page 41 Recomendaciones Generales de Seguridad...
- Page 42 ISO9001:2000 RoHS...
- Page 43 Phocos CA...
-
Page 44: Description Des Fonctions
Description des fonctions... - Page 45 Montage et Connexion...
-
Page 49: Recommandations D'utilisation
Recommandations d'utilisation... - Page 52 ------- ------- -------...
- Page 53 Erreur Affichage Cause...
-
Page 55: Fiche Technique
Fiche technique ISO9001:2000 RoHS... - Page 56 Phocos CA...
- Page 58 Montando e Conectando...
- Page 62 Iniciando o Controlador...
- Page 65 ------- ------- -------...
- Page 66 Mostrador Erro...
- Page 68 ISO9001:2000 RoHS...
- Page 69 Phocos CA...
- Page 80 ISO9001:2000 RoHS...
