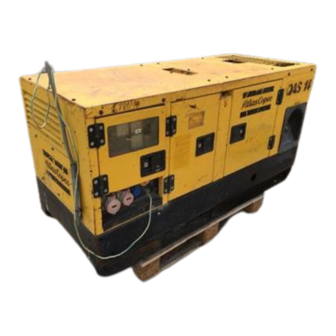

Instruction Manual
for AC Generators
QAS14 Yds
Instruction manual
.................................................................................................................................
Bedieningshandleiding
Manuel d'instructions
Bedienungsanleitung
Libro de instrucciones
Instruktionsbok
.....................................................................................................................................
Manuale di istruzioni
Instruksjonsbok
.................................................................................................................................
Betjeningsvejledning
BÈ‚Ï›Ô Ô‰ËÁÈÒÓ
.....................................................................................................................................
Manual de instruções
Siirrettävien
.............................................................................................................................................
Parts list – Onderdelenlijst – Liste de pièces – Ersatzteilliste –
Lista de las partes – Reservdelsförteckning – Listino parti di
ricambio – Deleliste – Reservedelsliste – K·Ù¿ÏÔÁÔ˜
EÍ·ÚÙËÌ¿ÙˆÓ – Lista de peças – Osaluettelo
Glossary– Woordenlijst – Glossaire – Glossar – Glosario –
Ordlista – Glossario – Ordliste – Ordliste – °ÏˆÛÛ·ÚÈÔ –
Glossário – Sanasto
.........................................................................................................................
From following serial number onwards - Geldig vanaf volgend serienummer - Valable à partir de numéro de
s é r i e s u i v a n t - G ü l t i g a b S e r i e n n u m m e r - A p a r t i r d e l s i g u i e n t e n ú m e r o d e s e r i e - F r . o . m .
tillverkningsnummer - Dal seguente numero di serie in avanti - Gjelder fra følgende serienummer -
Gældende fra flg. serienummer - °È· Έ‰ÈÎÔ‡˜
Sueraavista sarjanumeroista lähtien
AIP -
and Parts List
...................................................................................................................
.......................................................................................................................
.......................................................................................................................
.....................................................................................................................
........................................................................................................................
....................................................................................................................
..................................................................................................................
ÚÔ˚fiÓÙˆÓ · fi – A partir do seguinte número de série –
ATLAS COPCO – PORTABLE AIR DIVISION
B-2630 AARTSELAAR BELGIUM
PAGE
..........................................................
3
17
31
45
59
73
87
101
115
129
143
157
181
203

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QAS14 Yds and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas Copco QAS14 Yds

  • Page 1 ÚÔ˚fiÓÙˆÓ · fi – A partir do seguinte número de série – Sueraavista sarjanumeroista lähtien AIP - Registration code Collection : APC Q Sequence : 0923 Printed matter N° 2927 1208 01 EN ATLAS COPCO – PORTABLE AIR DIVISION 1995 – 12 B-2630 AARTSELAAR BELGIUM...
