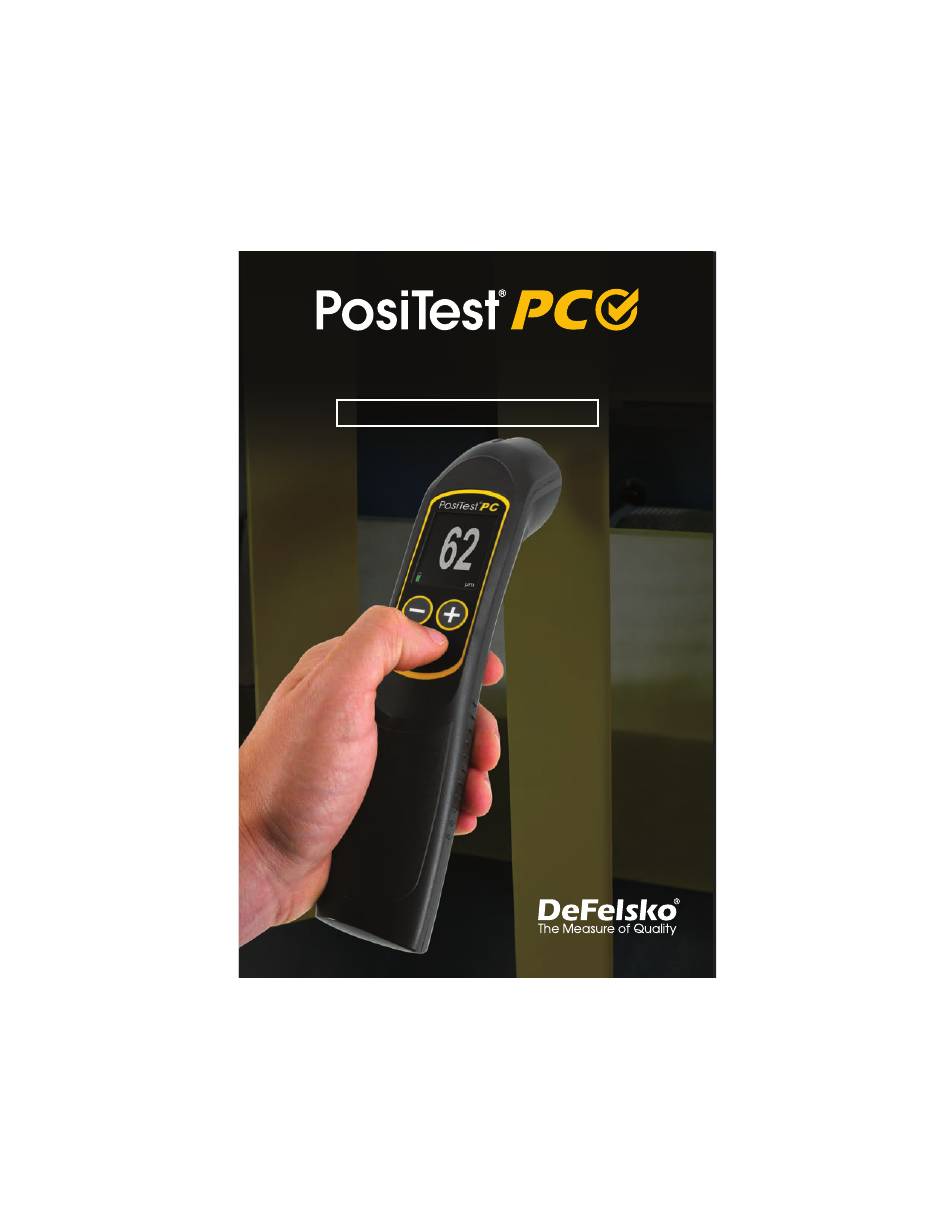

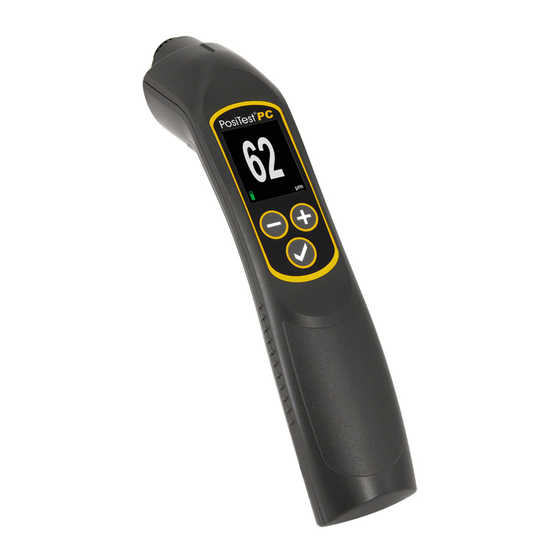

- Page 1 Powder Checker Uncured Coating Thickness Gage Instruction Manual v. 3.0 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Quick Start
3. MEASURE the applied powder (pg. 4). 4. ADJUST to the specific powder if necessary (pg. 8). NOTE: To preserve battery life, the PosiTest PC will power down after approximately 5 minutes of no activity. All settings are retained. The USB Port has several functions: Sensor/Screen Gage updates (pg. - Page 3 Menu Navigation RESET Memory Mode. All stored readings and the running average will be cleared from gage memory. Turns Memory Mode OFF Memory Mode is unavailable when USB Keyboard NOTES: Mode is active While in Memory Mode, press the button to discard the last reading Zero: Zeroes the instrument using the supplied Zero Fixture (pg.
- Page 4 (See Scan Mode, pg. 6) USB Keyboard Mode: When enabled and connected to a computer, the PosiTest PC will be recognized as a keyboard. Readings are sent to the computer as they are taken, emulating keystrokes. (pg. 10) NOTE: Memory Mode is unavailable when in USB Keyboard Mode.
- Page 5 Zeroing 1. Select Zero from the Gage menu. 2. Place the probe tip in the supplied Zero Fixture. 3. Press the button and hold the Zero Fixture on the probe until the hourglass icon disappears and a green check mark is displayed.
- Page 6 a. The Distance Paddle is near the Distance Target Bar. This indicates that the instrument is the correct distance away from the part. b. The Distance Paddle is as wide as possible. This indicates that the instrument is being held perpendicular to the surface. GlobalTestSupply www.
- Page 7 Single Reading Mode (default) Scan Mode Maintenance GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 8: Calibration And Adjustment
PosiTector 6000. A successful verification requires that the average of a series of measurements by both instruments be within their combined tolerances. If not, adjust the PosiTest PC using one of the methods described in Adjustment Techniques (pg 8). GlobalTestSupply www. -
Page 9: Adjustment Techniques
2. Select 1-Pt Adjust from the gage menu. 3. Take at least 3 uncured powder measurements with the PosiTest PC. Press button to discard the last reading if it should not be included in the average of the measurements. - Page 10 3. Take at least 3 uncured powder measurements on the first (thin) powder sample with the PosiTest PC. Press the button to discard the last reading if it should not be included in the average of the measurements.
- Page 11 DO NOT unplug the Gage during the update operation. USB Keyboard Mode / Live Stream Measurements When enabled, the PosiTest PC will be recognized as a USB keyboard device when connected to a computer. This mode is compatible with any software that accepts keystrokes. Readings are sent to the computer as they are taken, emulating keystrokes.
- Page 12 Technical Data 20-100 microns 0.8-4.0 mils Measuring Range + 5 microns + 0.2 mil Accuracy 1 micron 0.1 mil Resolution 2-5 seconds Measurement Time 19 mm 0.75 inch Measurement Distance to Powder 2 mm 0.08 inch Measurement Area 0 to +50°C +32°...
-
Page 13: Returning For Service
© 2018 DeFelsko Corporation USA All Rights Reserved This manual is copyrighted with all rights reserved and may not be reproduced or transmitted, in whole or part, by any means, without written permission from DeFelsko Corporation. DeFelsko, PosiTest, PosiTector and PosiSoft are trademarks of DeFelsko Corporation registered in the U.S.
