6. Installing The Mounting Bracket

Remember to disconnect the power at the circuit breaker.

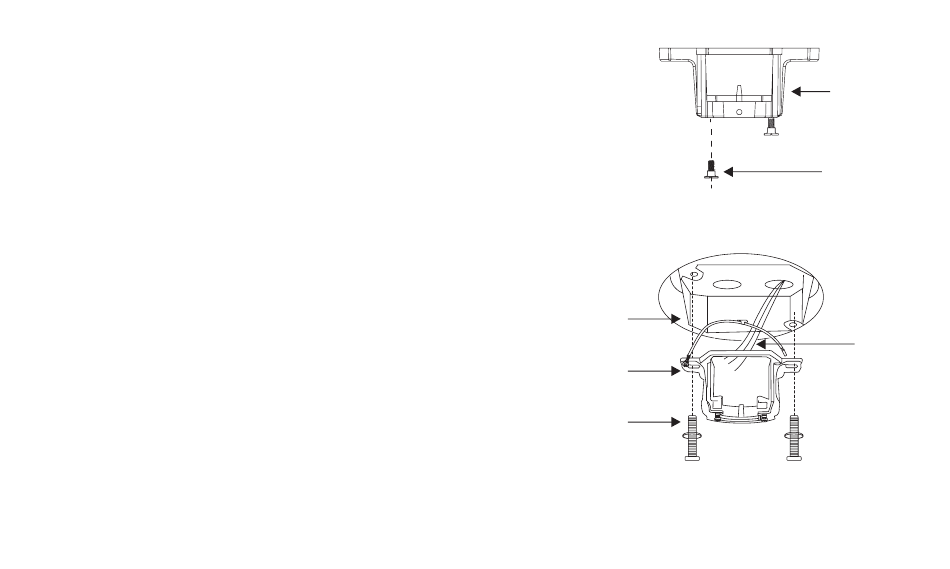

1. Remove 1 of 2 screws from the bottom of the mounting
bracket and save for use in section 11. Loosen the other
screw (FIG.5).
2. Pass the 120-volt supply wires through the center hole in the
mounting bracket as shown (FIG.6).
3. Secure the mounting bracket to the ceiling outlet box with the
screws and washers provided with your outlet box.
NOTE: Make sure that mounting screws are tight.
F R - W1 9 10 - 5 2 / 6 2L
UL/Cul Listed
Electrical Box
Mounting Bracket
Mounting Screws
Mounting Bracket
Screw
FIG.5
120V Wire
FIG.6
