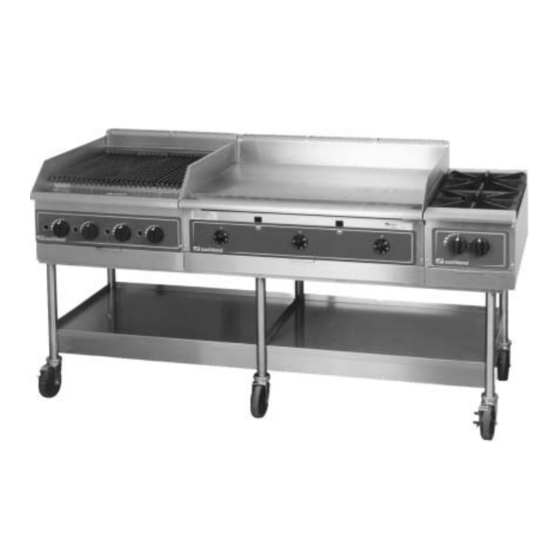

Southbend G-72-M Owner's Manual

Heavy duty counterline griddles, charbroilers and open top models

Hide thumbs

Table Of Contents

Heavy Duty Counterline

Griddle Models

HDG-24

HDG-36

HDG-36-RE

HDG-48

HDG-48-RE

HDG-60

HDG-60-RE

HDG-72

HDG-72-RE

Improper installation, adjustment, alteration, service or maintenance can cause property damage,

injury or death. Read the installation, operating and maintenance instructions thoroughly before

1182845

ANUAL

REV

$21.00

OWNER'S MANUAL

HDG-24-M

HDG-36-M

HDG-48-M

HDG-60-M

HDG-72-M

WARNING

installing or servicing this equipment.

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526

www.southbendnc.com

Please complete this information and retain this

manual for the life of the equipment:

Model #: ___________________________

Serial #: ___________________________

Date Purchased: ____________________

Charbroiler Models

HDC-24

HDCL-24

HDC-36

HDCL-36

HDC-48

HDCL-48

IMPORTANT FOR FUTURE REFERENCE

Open Top Models

HDO-12

HDO-24SU

HDO-24

HDO-36SU

HDO-36

HEAVY DUTY COUNTERLINE

MANUAL SECTION HD

Table of Contents

Need help?

Do you have a question about the G-72-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Southbend G-72-M

Page 1 OWNER’S MANUAL Heavy Duty Counterline Griddle Models HDG-24 HDG-36 HDG-36-RE HDG-48 HDG-48-RE HDG-60 HDG-60-RE HDG-72 HDG-72-RE Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before 1100 Old Honeycutt Road, Fuquay-Varina, NC 27526 1182845 ANUAL $21.00...
Page 2: Safety Precautions
SAFETY PRECAUTIONS Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions. The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator, service personnel, or to the equipment.
Page 3: Table Of Contents
Congratulations! You have purchased one of the finest pieces of commercial cooking equipment on the market. You will find that your new equipment, like all Southbend equipment, has been designed and manufactured to meet the toughest standards in the industry. Each piece of Southbend equipment is carefully engineered and designs are verified through laboratory tests and field installations.
Page 4: Specifications
The serial plate is located on the interior side of the valve panel (see Figure 1 on page 3). It indicates the type of gas the unit is equipped to burn. All Southbend equipment is adjusted at the factory. Check type of gas on serial plate.
Page 5 Air for combustion enters the rear of the appliance. An exhaust flue runs along the top rear edge of griddle and charbroiler models. Southbend recommends that a ventilation canopy extend 6" past the edges of the appliance and be located 6'6" above the floor.
Page 6 PECIFICATIONS Figure 2 DIMENSIONS OF GRIDDLE MODELS 31.5" 16.0" 15.1" 10.0" 2.0" 29.4" Side View of Front-Trough Models 16.0" 29.4" Side View of Rear-Trough Models Model HDG-24 & HDG-24-M HDG-36, HDG-36-RE, & HDG-36-M HDG-48, HDG-48-RE, & HDG-48-M HDG-60, HDG-60-RE, & HDG-60-M HDG-72, HDG-72-RE, &...
Page 7 EAVY OUNTERLINE CONSTRUCTION OF GRIDDLE MODELS The front, sides, and 5" riser are all stainless steel. The rear and bottom panels are aluminized steel. The reinforced double-wall sides are fully insulated. The griddle surface is high-carbon, 1" thick, polished steel plated with trivalent chromium. The chrome plate has an emissivity rating of approximately 0.08.
Page 8 PECIFICATIONS CONSTRUCTION OF CHARBROILER MODELS The front, top-rail sides, and 5" riser are all stainless steel. The rear and bottom panels are aluminized steel. The reinforced double-wall sides are fully insulated. Each 6" section has a gas valve for independent control of flame. Each burner is covered by a stainless steel radiant or by a layer of ceramic briquettes.
Page 9: Installation
EAVY OUNTERLINE NSTALLATION Installation must comply with National Fuel Gas Code, ANSI Z223.1, Natural Gas Installation Code, CAN/CGA-B149.1, or the Propane Installation Code, CAN/CGA-B149.2, as applicable. These installation procedures must be followed by qualified personnel or warranty will be void. Local codes regarding installation vary greatly from one area to another.
Page 10 NSTALLATION Step 2a: Installation on Countertop Legs To install the appliance using countertop legs, do the following: 1. Locate the box of four legs shipped with the appliance (if countertop legs were ordered). 2. Raise the appliance about 6" so that the legs can be screwed into the bottom near the corners. Lift the appliance only from the ends, never from the middle! Support the lifted appliance so that it will not fall while you are attaching the legs.
Page 11 EAVY OUNTERLINE Step 2b: Installation Directly on a Non-Combustible Countertop Surface The appliance may be installed directly onto a flat NON-COMBUSTIBLE surface, as follows: 1. Place the appliance in the position that it will be used. Lift the appliance only from the ends, never from the middle! 2.
Page 12 NSTALLATION Step 2c: Installation on Insulated Base The appliance may be installed onto a flat NON-COMBUSTIBLE (but heat sensitive) surface using the optional insulated base, as follows: 1. Attach the side pieces of the insulated base (items “A” in Figure 7 below) to the front piece (item “B”) using the four sheet metal screws provided.
Page 13 EAVY OUNTERLINE Step 2d: Installation on Floor Stand (24", 36", and 48" Models) The 24", 36", and 48" appliances may be installed on top of an optional floor stand (for 60" and 72" griddles, go to Step 2e on page 15). The floor stand is shipped in a separate crate and must be assembled, as follows: 1.
Page 14 NSTALLATION Figure 9 7. Check the partially assembled stand to make sure that the legs are straight and that all corners are square. Now tighten all bolts, but do not over tighten. 8. If legs with casters were ordered, lift the stand and screw the caster assemblies into the bottom of the legs.
Page 15 EAVY OUNTERLINE Step 2e: Installation on Floor Stand (60" and 72" Models) A 60" or 72" griddle may be installed on top of an optional floor stand (for 24", 36", and 48" griddles, go to Step 2d on page 13). The floor stand is shipped in a separate crate and must be assembled, as follows: 1.
Page 16 NSTALLATION Figure 11 7. Check the partially assembled stand to make sure that the legs are straight and that all corners are square. Now tighten all bolts, but do not over tighten. 8. If legs with casters were ordered, lift the stand and screw the caster assemblies into the bottom of the legs.
Page 17 1. Secure the restraining-device bracket (item “B” in the following illustration) to a wall stud located as close as possible to the appliance connector inlet and outlet connections. Use four #12 screws (items “C”) and plastic anchors (items “A”) if necessary. Figure 12 Note: Kit can be purchased from Southbend (part number 1176867). ’ WNER NOTICE...
Page 18 The serial plate is located interior side of the control panel (see Figure 1 on page 3). It indicates the type of gas the appliance is equipped to burn. All Southbend equipment is adjusted at the factory. Check type of gas on serial plate.
Page 19 EAVY OUNTERLINE 5. Connect the vent line from the pressure regulator to the outdoors in accordance with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1, Natural Gas Installation Code, CAN/CGA-B149.1, or the Propane Installation Code, CAN/CGA-B149.2, as applicable. 6.
Page 20 NSTALLATION 5. Light the burners. Set the control knobs to only low temperatures for now. 6. Check (and, if necessary, adjust) the burner air shutters using the procedure on page 29. Step 7: Final Installation Steps for Griddle Models This step applies only to the installation of griddle models. New griddles should be carefully tempered and cared for in order to avoid possible damage.
Page 21: Operation
EAVY OUNTERLINE PERATION Purchaser of equipment must post in a prominent location, detailed instructions to be followed in the event the operator smells gas. Obtain the instructions from the local gas supplier. To eliminate gas build up which could result in an explosion, in the event of main burner ignition failure a five minute purge period must be observed prior to re-establishing ignition source.
Page 22 PERATION OPERATION OF THERMOSTATIC GRIDDLE MODELS Each 12"-wide griddle section has a thermostatic-control knob on the front panel that directly controls the flow of gas, and so the heat. Turn the knob clockwise to increase the heat; turn it counterclockwise to reduce the heat.
Page 23 EAVY OUNTERLINE OPERATION OF MANUAL GRIDDLE MODELS Each 12"-wide griddle section has a knob on the front panel that directly controls the flow of gas, and so the heat. Turn the knob clockwise to increase the heat; turn it counterclockwise to reduce the heat. After each period of use, allow the griddle surface to cool normally.
Page 24 PERATION OPERATION OF CHARBROILER MODELS Each 6"-wide charbroiler section has a knob on the front panel that directly controls the flow of gas, and so the heat. Turn the knob counterclockwise to increase the heat; turn it clockwise to reduce the heat. To use the charbroiler, turn all the control knobs to the full “ON”...
Page 25 EAVY OUNTERLINE OPERATION OF OPEN-TOP BURNER MODELS Each 12"-wide open-top burner section has two knobs on the front panel that directly control the flow of gas to the section’s two burners, and so control the heat. Turn a knob clockwise to increase the heat; turn it counterclockwise to reduce the heat.
Page 26: Cleaning
LEANING LEANING Southbend equipment is constructed with the best quality materials and is designed to provide durable service when properly maintained. To expect the best performance, your equipment must be maintained in good condition and cleaned daily. Naturally, the frequency and extent of cleaning depends on the amount and degree of usage.
Page 27 LEANING EAVY OUNTERLINE the metal. Rubbing cleanser, as gently as possible, in the direction of the polished lines will not mar the finish of the stainless steel. NEVER RUB WITH A CIRCULAR MOTION. Soil and burnt deposits which do not respond to the above procedure can usually be removed by rubbing the surface with SCOTCH-BRITE scouring pads or STAINLESS scouring pads.
Page 28: Adjustments
(A) Service work is performed by other than a qualified technician, or (B) Other than genuine Southbend replacement parts are installed. Before making any adjustment, make sure the appliance is connected to the type of gas for which it is equipped.
Page 29 EAVY OUNTERLINE ADJUSTMENT OF PILOT FLAME (GRIDDLE MODELS) The pilots are adjusted at the factory. If later the pilots are over-adjusted to the point where the flame is leaving its port, or “blowing off,” the result is an unstable condition in which the pilot may extinguish. If necessary, adjust each burner’s pilot using the following procedure: 1.
Page 30 (“NAT” or “LP”). Re-attach the hex-threaded plug. 6. Check the manifold pressure (the procedure is on page 28). Note: A kit for conversion to a different type of gas may be purchased from Southbend. EAVY ’...
Page 31 EAVY OUNTERLINE ADJUSTMENT OF GRIDDLE THERMOSTATS Each burner’s control knob operates a snap-action thermostatic valve that was adjusted at the factory. If the griddle surface temperature is different from the thermostat dial setting, adjust the valve using the following procedure: 1.
Page 32: Troubleshooting
ROUBLESHOOTING ROUBLESHOOTING Consult the following table for troubleshooting guidance. Problem No burners or pilots will turn on Problem with a particular burner Griddle will not heat up Lava-rock charbroiler has “hot spots” Burners produce excessive carbon deposits Pilot produces excessive carbon deposits Pilot will not stay lit Burner makes a slight popping noise when turned off Electronic ignition module will not generate a spark...
Page 33: Figure
Agency. Consult the Southbend Authorized Parts/Service Distributor list for the Authorized Parts supplier in your area. If this list is not available, call Southbend at 1-800-348-2558 to obtain this list. Except where a part number is explicitly associated with a particular model number, all parts listed are used by all the models covered by this manual.
Page 34 1183384-01 1182609 1183385-01 1182605 1183386-01 1187911-01 1182554 1180299 * Contact Southbend to obtain part numbers for optional grooved-griddle assemblies. ** Not shown on drawing. Description " " Knob (for thermostatic griddles) Knob (for manual griddles) Door weld assembly, 24" Door weld assembly, 36"...
Page 35 ARTS EAVY OUNTERLINE Griddle Chassis Parts See parts list on previous page. Model HDG-24 is shown. ’ 1182845 WNER ANUAL...
Page 36 ARTS Thermostatic Griddle Gas System Parts See drawing on following page. Quantity for Griddle Width Part Number 24" 36" 48" 1182564 P5244-4 P9158 1182566 1160008 1-5771 1146806 1182594 1182567 1182580 1182565 1182633 1182638 1182562 1182574 1182560 1182571 1166150 1181499 1182553 1057200 1008732 1183381...
Page 37 ARTS EAVY OUNTERLINE Thermostatic Griddle Gas System Parts See parts list on previous page. Model HDG-36 is shown. Electronic Ignition Module Parts ’ 1182845 WNER ANUAL...
Page 38 ARTS Manual Griddle Gas System Parts See drawing on following page. Quantity for Griddle Width Part Number " " " 1182846 1180583 1146910 1188180 1188181 1188182 1178202 P6016 1183503 1148306 1148301 1008745 1008755 1183371 1147007 1099002 1188977 1183686 1189262 Description "...
Page 39 ARTS EAVY OUNTERLINE Manual Griddle Gas System Parts See parts list on previous page. Model HDG-36-M is shown. ’ 1182845 WNER ANUAL...
Page 40 ARTS Charbroiler Parts See drawing on following page. Quantity for Width Part Number 24" 36" 48" 1177704 1182775 1182785 1182803 1182758 1182833 1182834 1182612 1182620 1182624 1182591 1182592 1182624 1182846 1178815 1182835 1182755 1182806 1182807 1182808 1182818 1178202 1008755 1008745 1166004 1182794 1182766...
Page 41 ARTS EAVY OUNTERLINE Charbroiler Parts See parts list on previous page. Models HDCL-36 and HDC-36 are shown. ’ 1182845 WNER ANUAL...
Page 42 ARTS Open Top Parts See drawing on following page. Quantity for Width Part Number 12" 24" 36" 1177704 1182979 1182980 1182981 1182761 1182060 1182061 1182294 1182295 1182296 1182591 1182592 1182847 1182999 1178815 1177439 1177111 1181100 1178942 1178941 1166004 1178202 1008755 1008742 1178960 1178936...
Page 43 ARTS EAVY OUNTERLINE Open Top Parts See parts list on previous page. Models HDO-24SU and HDO-24 are shown. ’ 1182845 WNER ANUAL...
Page 44 ARTS Floor Stand Parts for 24", 36", and 48" Width Units See drawing on following page. Part Number for Unit Width 24" 36" 48" 1173709 1173709 1173709 1173710 1173723 1173724 1173707 1173707 1173707 1173706 1173706 1173706 1146500 1146500 1146500 1146200 1146200 1146200 1164827...
Page 45 EAVY OUNTERLINE Floor Stand Parts for 24", 36", and 48" Width Units See parts list on previous page. Model HDG-36 is shown. ’ WNER 1182845 ANUAL ARTS...
Page 46 ARTS Floor Stand Parts for 60" Width Units See drawing on following page. Part Number Description 1173709 Bottom brace, left & right sides 1173728 Bottom brace, front & rear 1173707 Leg bracket 1173706 Corner brace 1146500 1/4" lock washer 1146200 1/4"...
Page 47 ARTS EAVY OUNTERLINE Floor Stand Parts for 60" Width Units See parts list on previous page. Model HDG-60 is shown. ’ 1182845 WNER ANUAL...
Page 48 ARTS Countertop Legs and Insulated-Base Parts Part Number for Unit Width* 12" 24" 36" 1163561 1163561 1163561 1172857 1172857 1172857 Part Number for HDG/HDC/HDCL 1182277 1182278 Part Number for HDO 1186662 1186663 1186664 Description 48" 60" 1163561 1163561 4" leg (single) 1172857 1172857 4"...
Page 49 EAVY OUNTERLINE Notes: ’ 1182845 WNER ANUAL...
Page 50 EAVY OUNTERLINE Notes: ’ 1182845 WNER ANUAL...
Page 51 EAVY OUNTERLINE Notes: ’ 1182845 WNER ANUAL...
Page 52 When service is needed, contact a Southbend Authorized Service Agency, or your dealer. To avoid confusion, always refer to the model number, serial number, and type of your unit.
