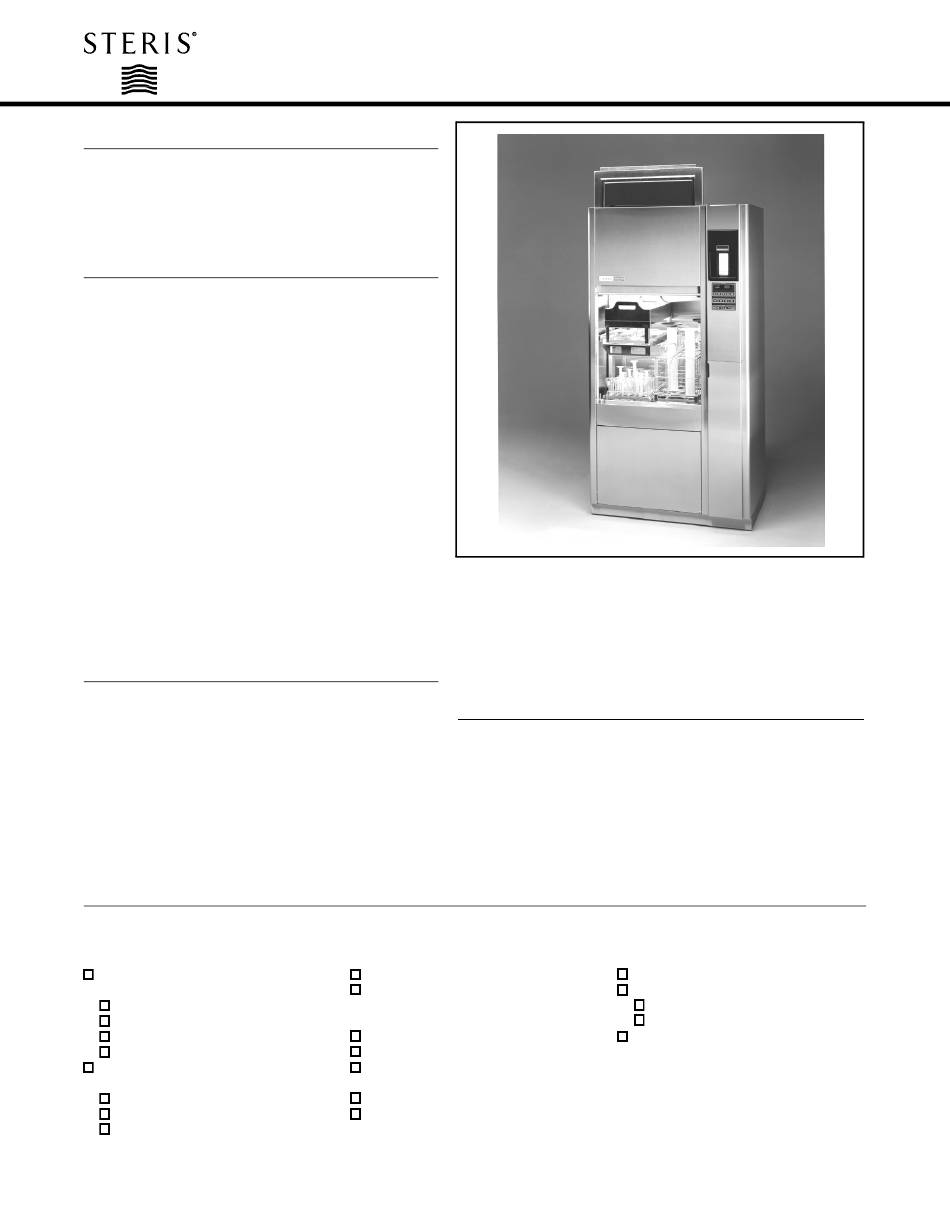

Steris RELIANCE 400 Manual

APPLICATION
The Reliance 400 Laboratory Glassware Washer is
designed for thorough cleaning of laboratory glassware,
plastic and metal goods used in research, production
support and quality control laboratories.
DESCRIPTION
The Reliance 400 Laboratory Glassware Washer is a
cabinet-type washer equipped with an Eagle 3000 Stage
3 control system. The washer is preprogrammed with three
adjustable cycles: light, medium and heavy. Seven
additional cycles are available for customized
programming to meet specific operating requirements.
Pre-programmed descaling and priming cycles are also
provided for routine maintenance.
Washer is built to seismic building code requirements and
is available as a single- or double-door unit, for installation
either as a freestanding unit or recessed through a barrier
wall(s).
Size (W x H x L)
Chamber load capacity:
• 26 x 25-1/2 x 26" (660 x 647 x 660 mm)
Overall dimensions:
• 42 x 80-3/4 x 32-1/2" (1067 x 2051 x 825 mm)
STANDARDS
The Reliance 400 Glassware Washer meets the applicable
requirements of the following standards, as certified by UL:
• Underwriters Laboratories (UL) Standard 61010-1.
• Canadian Standards Association (CSA):
CAN/CSA-C22.2 No. 61010-1.
• International Standard EN/IEC 61010-1.
• International Standard EN/IEC 61326.
• Governing Directive for the Affixing of the CE Mark:
Machinery Directive (98/37/EC).
MODEL
❑ Steam-Heated Unit
VOLTAGE
❑ 120/208 Volt, 60 Hz, 3-Phase, 4-Wire
❑ 380/400/415 Volt, 50 Hz, 3-Phase, 3-Wire
❑ 480 Volt, 60 Hz, 3-Phase, 3-Wire
❑ 600 Volt, 60 Hz, 3-Phase, 3-Wire
❑ Electric-Heated Unit
VOLTAGE
❑ 380/400/415 Volt, 50 Hz, 3-Phase, 3-Wire
❑ 480 Volt, 60 Hz, 3-Phase, 3-Wire
❑ 600 Volt, 60 Hz, 3-Phase, 3-Wire
LABORATORY GLASSWARE WASHER
The Selections Checked Below Apply To This Equipment
POWER DOOR CONFIGURATION
❑ Single Door
❑ Double Door (Pass-Through)
OPTIONS
❑ Non-Recirculated Heated Pure Water Rinse
❑ Non-Vented Vapor Condenser
❑ Drain Discharge Cool Down and Cold Water
Pre-Wash
❑
Drying System
❑
Universal Shelving System

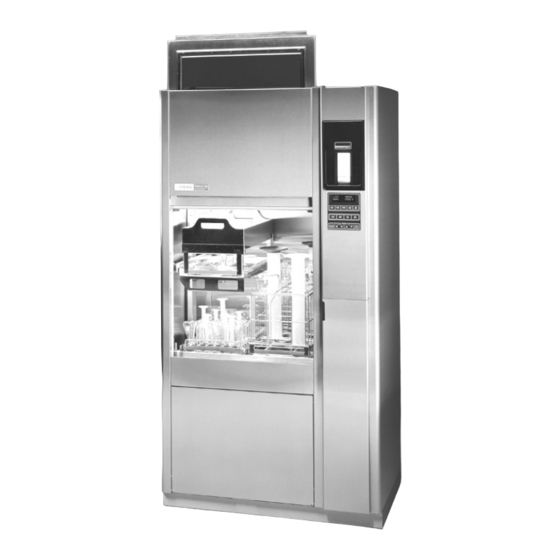

(Typical only - some details may vary.)
• Conformity to other applicable directives: Electromagnetic
Compatibility Directive (89/336/EEC) amended by Directive 91/
263/EEC, Directive 92/31/EEC, and Directive 93/68/EEC; Low
Voltage Directive 2006/95/EC.
FEATURES
Vertical sliding power door(s) is constructed of tinted, tempered
glass with stainless-steel trim, allowing the operator to view the
chamber with door(s) closed. While cycle is in progress, glass
remains cool to the touch. Power sliding door(s) operates
automatically by pneumatic cylinders when the appropriate touch
pad is pressed. The door is equipped with a safety switch to
automatically retract (open) the door if obstruction is detected in the
doorway. If power failure occurs, the door can be manually opened.
ACCESSORIES*
❑ Additional (Maximum Two) Chemical Pump(s)
❑ Air Compressor
❑ 110-115 Volt
❑ 200-240 Volt
❑ Barrier Wall Flange Assembly
* Refer to SD419 for material handling accessories
RELIANCE 400
®
Item ________________________
Location(s)___________________
____________________________
SD574 (03/01/10)
