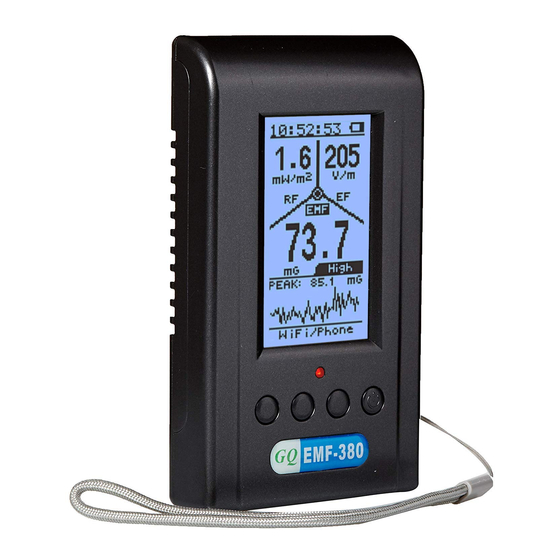

GQ EMF METER
Quick Start Guide
Model: EMF-360V2, EMF-360+V2, EMF-380V2, EMF-390
Facebook : GQ Electronics LLC
Instagram : @gqelectronicsllc
Website :
www.gqelectronicsllc.com
Software download :
download.gqelectronicsllc.com
Email :
support@gqelectronicsllc.com
Address : 5608 Delridge Way SW, Seattle WA 98106, USA
Advertisement
Table of Contents
Related Manuals for GQ Electronics EMF-360V2
Summary of Contents for GQ Electronics EMF-360V2
- Page 1 GQ EMF METER Quick Start Guide Model: EMF-360V2, EMF-360+V2, EMF-380V2, EMF-390 Facebook : GQ Electronics LLC Instagram : @gqelectronicsllc Website : www.gqelectronicsllc.com Software download : download.gqelectronicsllc.com Email : support@gqelectronicsllc.com Address : 5608 Delridge Way SW, Seattle WA 98106, USA...
-
Page 2: Table Of Contents
Contents Package Content ................... 2 Full User Guide ..................2 Operation Setup ................... 2 Software ....................2 Technical question and support ............3 The multi-function keys ................ 3 User Interface ..................3 Hold and position the meter ..............5 EMF/ELF/EF/RF Basics ................6 How to select a testing mode? .............. -
Page 3: Package Content
GQ EMF Meter (For EMF-360V2, EMF-360PlusV2, EMF-380V2, EMF-390) Package Content EMF meter main unit. USB cable Quick start guide. Full User Guide https://www.gqelectronicsllc.com/GQ-EMF-UserGuide.pdf Operation Setup Power on the unit. Pressing the power (S4) key for 3 seconds will turn on the unit. -
Page 4: Technical Question And Support
Technical question and support Please use forum : https://www.gqelectronicsllc.com/forum The multi-function keys (S1, S2, S3, and S4) The key’s function will be reassigned dynamically based on the Display Mode. S4: Power ON/OFF, Confirm, Select, Enter. S3: up, or content depended ... - Page 5 In All in one mode, press S3 key to change the main measurement type among: EMF in mG (milliGauss) EF in V/m (Volts per meter) RF in mW/m2 S1 key: select display mode Horizontal All In One Mode S2 key: select RF unit S4 key: enter Main menu There is a table mode on EMF- 360+V2/EMF-380V2/EMF-390 models.
-
Page 6: Hold And Position The Meter
Hold and position the meter To get as accurate of a reading as possible, always point the top of the meter (sensors) to the source. You can hold the meter at the lower part, or just simply place the meter near the target source. -
Page 7: Emf/Elf/Ef/Rf Basics
EMF/ELF/EF/RF Basics... -
Page 8: How To Select A Testing Mode
How to select a testing mode... -
Page 9: How To Turn On/Off
How to turn ON/OFF ? ON : Press and hold S4 button for 3 seconds, until see GQ logo. OFF : Press and hold S4 button again for 3 seconds How to charge the battery? You will receive a USB cable along with EMF meter in the package Plug A into USB socket on any USB ports (eg. -
Page 10: Faq
FAQ: 1. Is GQ Meter designed for general use purpose or professional measurement? It is for general use purpose. 2. Is your meter designed for beginner users or experienced users? It is for both. Basic features are for beginners. Advanced features for experienced users to explore. - Page 11 10. What should I do if my meter is defective? Please call or email GQ Electronics LLC. The staff will arrange the return regardless of where you purchased the meter. 11. Why does the reading change when I put my hand on the meter?
- Page 12 Every meter has a specified frequency range and it has different frequency response (Nonlinear response) A meter only responds to a portion of the RF spectrum. Location is one of the most important factor impacts the RF reading.
