8.

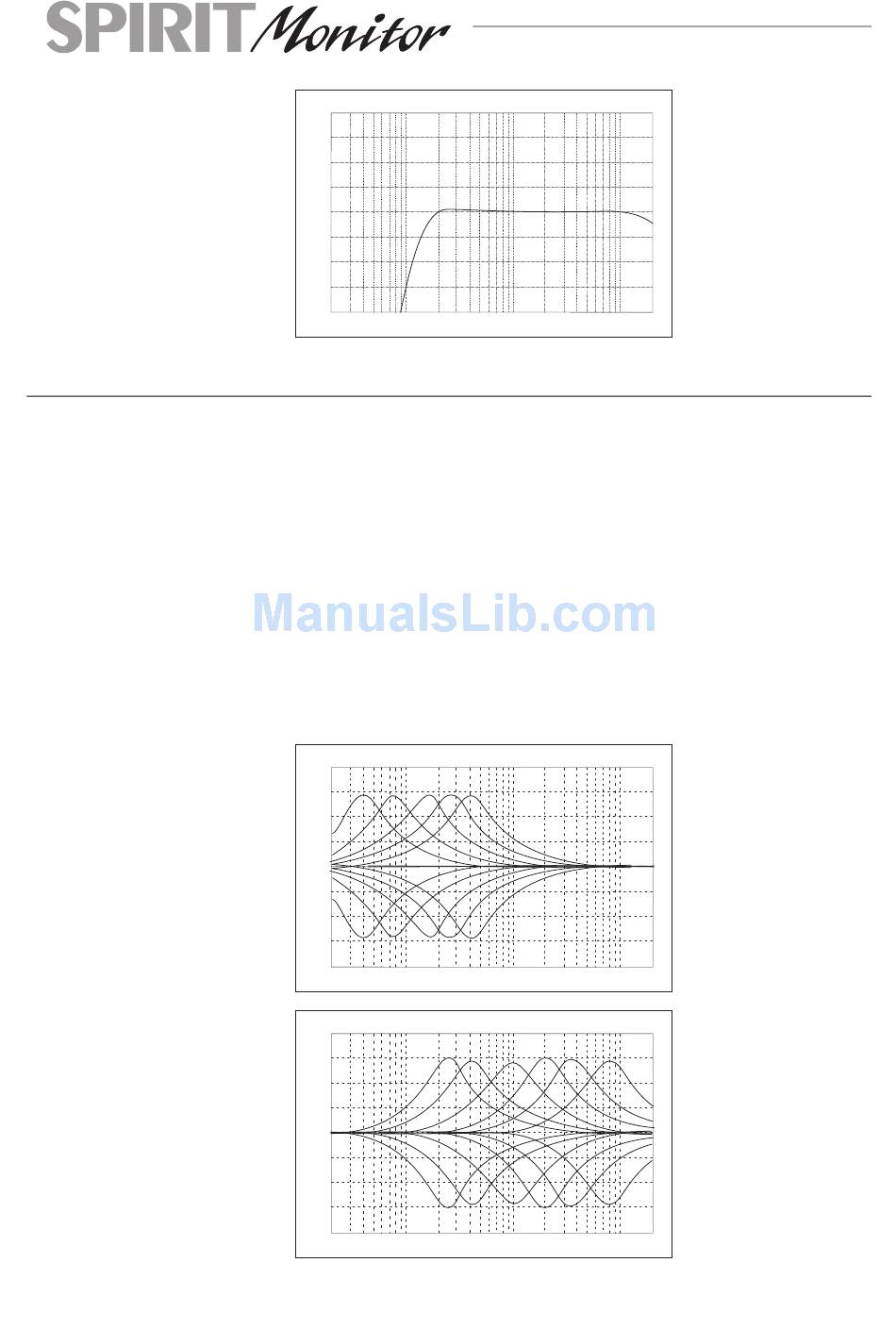

HI-Pass Filter
dB
4.0
3.0
2.0
1.0
0.0
-1.0
-2.0
-3.0
-4.0
20 100
Frequency/Hz
EQUALISER
The Equaliser(EQ) comprises three sections. The upper con-
trol provides H.F.(treble) boost and cut of +/-15dB.
lower two pairs of knobs are arranged as a cut/boost control
(lower knob) of +/- 15dB, and a SWEEP(frequency) control
which determines at which frequency the boost/cut action
will be centred. The LF sections are essentially Swept Low
Frequency controls, covering a range from 40 to 400Hz and
providing much greater flexibility than a conventional
LF(bass) control. The MID section, with a frequency range
from 250Hz to 8kHz is particularly versatile for vocals, ena-
bling particular characteristics of the singer to be lifted or
LF Section
dB
20.0
15.0
10.0
5.0
0.0
-5.0
-10.0
-15.0
-20.0
20 100
Frequency/Hz
MID Section
dB
20.0
15.0
10.0
5.0
0.0
-5.0
-10.0
-15.0
-20.0
20 100
Frequency/Hz
Page 14
1k 10k 20k
1k 10k 20k
1k 10k 20k
The
