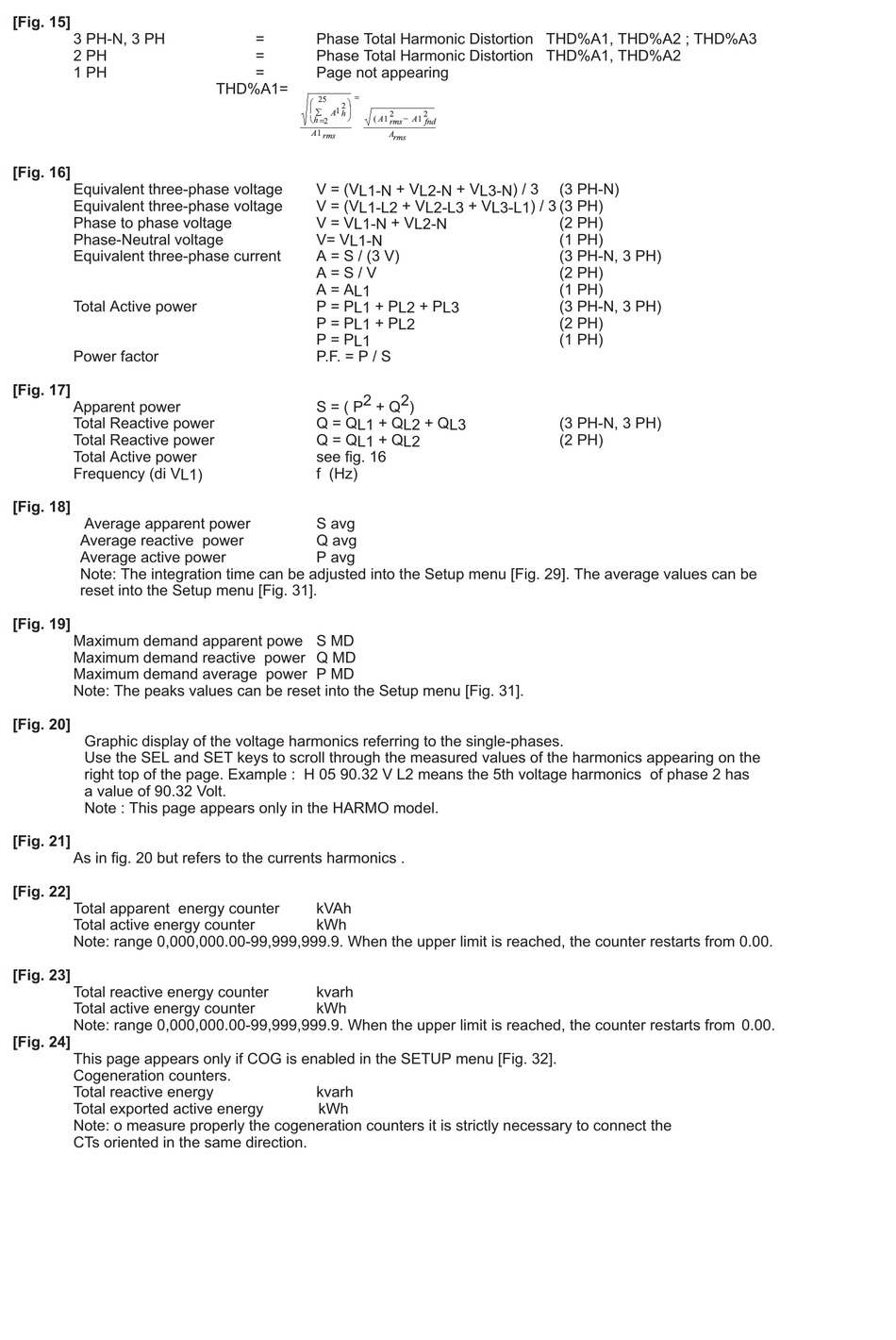

[Fig. 15]
3 PH-N, 3 PH
2 PH
1 PH
[Fig. 16]
Equivalent three-phase voltage
Equivalent three-phase voltage
Phase to phase voltage
Phase-Neutral voltage
Equivalent three-phase current
Total Active power
Power factor
[Fig. 17]
Apparent power
Total Reactive power
Total Reactive power
Total Active power
Frequency (di V L1)
[Fig. 18]
Average apparent power
Average reactive power
Average active power
Note: The integration time can be adjusted into the Setup menu [Fig. 29]. The average values can be
reset into the Setup menu [Fig. 31].
[Fig. 19]
Maximum demand apparent powe S MD
Maximum demand reactive power Q MD
Maximum demand average power P MD
Note: The peaks values can be reset into the Setup menu [Fig. 31].
[Fig. 20]
Graphic display of the voltage harmonics referring to the single-phases.
Use the SEL and SET keys to scroll through the measured values of the harmonics appearing on the
right top of the page. Example : H 05 90.32 V L2 means the 5th voltage harmonics of phase 2 has
a value of 90.32 Volt.
Note : This page appears only in the HARMO model.
[Fig. 21]
As in fig. 20 but refers to the currents harmonics .
[Fig. 22]
Total apparent energy counter
Total active energy counter
Note: range 0,000,000.00-99,999,999.9. When the upper limit is reached, the counter restarts from 0.00.
[Fig. 23]
Total reactive energy counter
Total active energy counter
Note: range 0,000,000.00-99,999,999.9. When the upper limit is reached, the counter restarts from 0.00.
[Fig. 24]
This page appears only if COG is enabled in the SETUP menu [Fig. 32].
Cogeneration counters.
Total reactive energy
Total exported active energy
Note: o measure properly the cogeneration counters it is strictly necessary to connect the
CTs oriented in the same direction.
= Phase Total Harmonic Distortion THD%A1, THD%A2 ; THD%A3
= Phase Total Harmonic Distortion THD%A1, THD%A2
= Page not appearing
THD%A1=
=
25
æ ö
2
ç 1 ÷
å A
h
ø
(
h
è = 2
A1
rms
V = (V L1-N + V L2-N + V L3-N ) / 3
V = (V L1-L2 + V L2-L3 + V L3-L1 ) / 3 (3 PH)
V = V L1-N + V L2-N
V= V L1-N
A = S / (3 V)
A = S / V
A = A L1
P = P L1 + P L2 + P L3
P = P L1 + P L2
P = P L1
P.F. = P / S
S = ( P 2 + Q 2 )
Q = Q L1 + Q L2 + Q L3
Q = Q L1 + Q L2
see fig. 16
f (Hz)
S avg
Q avg
P avg
kVAh
kWh
kvarh
kWh
kvarh
kWh
2 2
-
A 1 A 1
rms fnd
A
rms
(3 PH-N)
(2 PH)
(1 PH)
(3 PH-N, 3 PH)
(2 PH)
(1 PH)
(3 PH-N, 3 PH)
(2 PH)
(1 PH)
(3 PH-N, 3 PH)
(2 PH)
