Summary of Contents for Ursalink UC1152
-
Page 2: Table Of Contents
UC1152 User Guide Contents 1. Preface.............................3 2. Introduction............................ 3 2.1 Features..........................3 2.2 Parameters..........................4 2.3 LED Indicator Description......................4 3. Installation............................5 3.1 Environment.......................... 5 3.2 Power Supply.........................5 3.3 Micro USB Port........................6 3.4 Terminal Description......................6 3.5 Digital Input........................... 7 3.6 Relay Output..........................7... -
Page 3: Preface

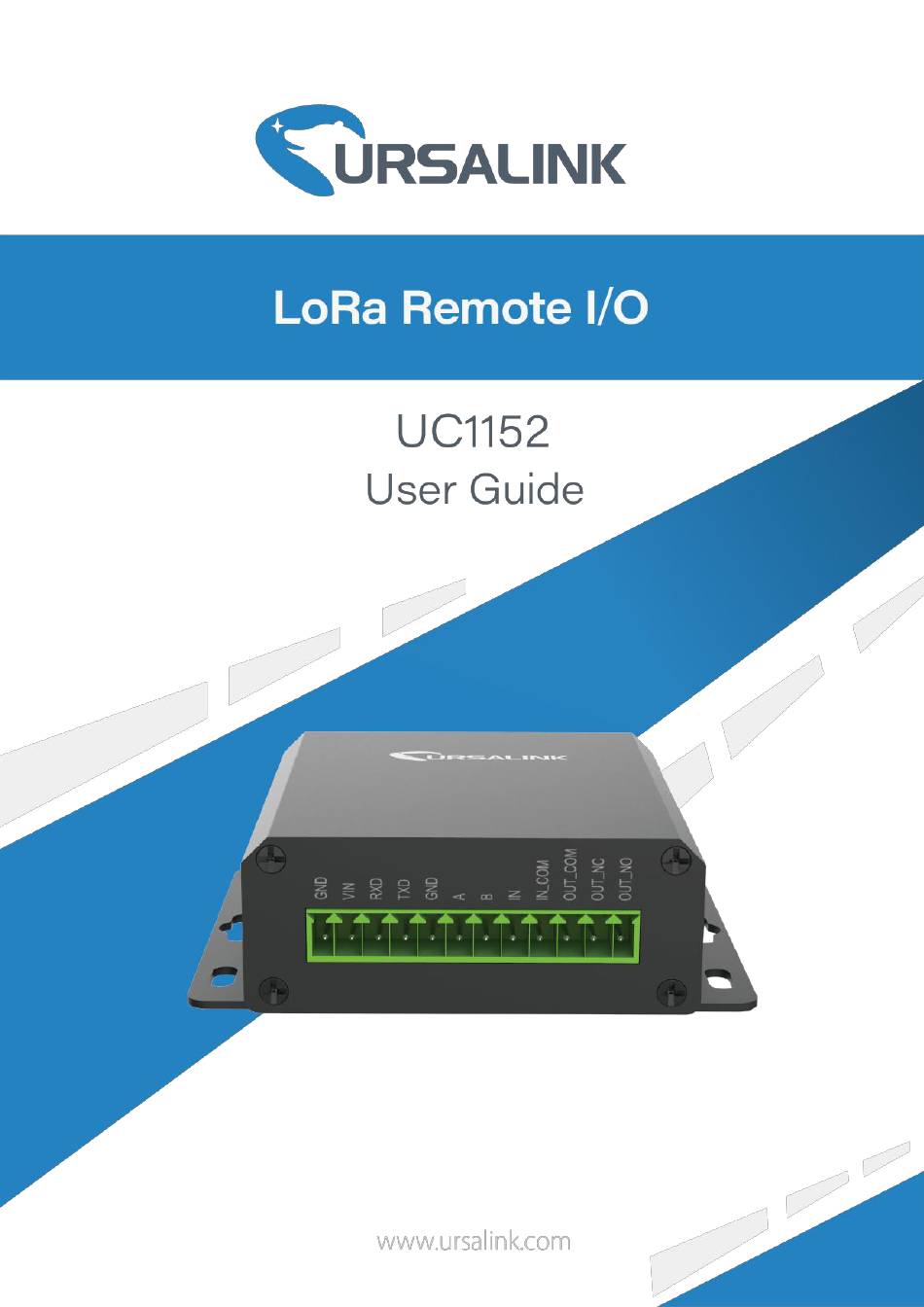

UC1152 User Guide 1. Preface Thank you for choosing Ursalink UC1152 LoRa Remote I/O. This user guide will present in detail all the functions and features of the product. Ursalink UC1152 is designed for both industrial and commercial applications. The product should be used under the guidance of this user guide, referring to parameters and technical specifications. -
Page 4: Parameters
UC1152 User Guide 2.2 Parameters Parameter Item Reference Scope Antenna 50 Ω SMA Antenna Interface EU 433, CN 470-510, EU 863-870, US 902-928, AU Frequency Band 915-928, KR 920-923 Sensitivity -147 dBm @300bps Output Power 20dBm Protocol LoRaWAN Class C... -
Page 5: Installation
Please Note: While the Ursalink UC1152 has fairly rugged internal power supply circuitry, no special provision for lightning protection is well in place. If the Ursalink UC1152 is used in an area where thunderstorm is about to occur, it is advisable to use a commercially available lightning suppressor (the same applies to inputs or outputs that are connected to wires longer than 2 or 3 meters). -
Page 6: Micro Usb Port
UC1152 User Guide 3.3 Micro USB Port The Ursalink UC1152 provides a micro USB port to connect to a PC via USB cable, which allows the PC to configure the unit. 3.4 Terminal Description [DC 5-24V] Terminal Description Positive terminal of the DC power supply (+) -
Page 7: Digital Input
UC1152 User Guide 3.5 Digital Input When the input is triggered either as high or low, the Ursalink UC1152 will take action if you have pre-configured related command. Terminal "IN" is internally pulled high. Leaving the connection open or connecting it to "0 -1 ... -
Page 8: Configuration
Power on the Ursalink UC1152. Step 3: Run the Ursalink ToolBox. The software will display this interface when getting started. Here you can create a new setup, import an existing setup from your PC, or retrieve the current setup from the Ursalink UC1152... -
Page 9: Serial Port Settings
UC1152 User Guide 4.1.1 Serial Port Settings When the Ursalink ToolBox displays: Connecting to device, please wait... You can click Serial Port Settings to set the correct serial port parameters. -
Page 10: Status
UC1152 User Guide Serial Port Settings Item Description Default Select the serial port for data Serial Port Null transmission. Login Password Enter the login password. 123456 Baud Rate Select from "9600", "57600", "115200". 115200 Data Bits Select from "5", "7", "8". -
Page 11: General
Input Show the status of Digital Input. Output Show the status of Digital Output. The number of data frames sent uplink from UC1152 to the Uplink Frame-counter network server. Downlink The number of data frames sent downlink from the network Frame-counter server to UC1152. -
Page 12: Rs485
UC1152 User Guide Basic Setting Item Description Default Set the regular report interval. The device will send the I/O status/value and signal Reporting Interval 1800 strength to the user-built server regularly. The interval range is 1-3600 seconds. Data Polling Interval The interval of reading data from analog input. -
Page 13: Rs232
UC1152 User Guide bridge LoRaWAN slave devices and then send it to Network Server via LoRaWAN. This mode also has the capability to change the behaviour of the ModBus device by writing into its registers. Eenter the LoRaWAN frame port for... -
Page 14: Lorawan
UC1152 User Guide Note: data will be sent out to public network when real serial data size reaches the preset packet size, even though it's within the serial frame interval. 4.4 LoRaWAN 4.4.1 Basic Basic Settings Item Description Default Device EUI Enter the identifier of the gateway. - Page 15 UC1152 User Guide procedure every time it has lost the session context information. ABP: Activation by Personalization. Under certain circumstances, end-devices can be activated by personalization. Activation by personalization directly ties an end-device to a specific network by-passing the join request - join accept procedure.
-
Page 16: Channel
Note: Make sure that you have configured the corresponding channel on the gateway. E.g. If you have configured a 923.2 MHz channel on UC1152, then you have to configure a 923.2 MHz channel on gateway as well. -
Page 17: Advanced
Default Disabled: UC1152 will send uplink unconfirmed packet. Confirm Mode Disabled Enabled: The last packet sent from UC1152 to Network Server will be uplink confirmed packet. ADR Mode: Adaptive Data Rate. Enabled: The Network Server will adjust the ADR Mode datarate by MAC command. - Page 18 UC1152 User Guide UC1152. The TX (transmit power) setting is used to control TXPower the transmission power of the device. Specified in the Number of seconds before receive windows are LoRaWAN™ Join Delay1 opened for join. Regional Parameters Specified in the The Join Accept Delay between the end of the Tx LoRaWAN™...
-
Page 19: Channel
The execution interval between each command. Range: Interval(ms) 10-1000. The default value is 50. Set the maximum response time that the Ursalink UC1152 waits for the response to the command. If the device does Max Resp Time(ms) not get a response after the maximum response time, it's determined that the command has timed out. -
Page 20: Command
UC1152 User Guide Max Retry Times Set the maximum retry times after it fails to read, range: 0-5. Assign the channel for the slave device, 8 channels Channel ID Null selectable. Set the name to identify the remote channel. It cannot be... -
Page 21: Read Command From Device
The Ursalink UC1152 is running with a number of defined behaviour commands. Each command takes the form of an IF-THEN statement pair. You are thus able to select certain trigger conditions to cause desired actions. The Ursalink UC1152 allows up to 8 separate behaviour commands with some models. - Page 22 UC1152 User Guide specified range of dates, or on every selected day of the week. The user can choose the day of the week from: The user can also set the time from 00:00 to 23:59 on a certain day.
- Page 23 UC1152 User Guide Thus, if the user chooses "Goes Active", then as soon as the specified input changes from inactive to active, the command will be triggered. Also, it applies to the remaining options when the preset conditions are met.
-
Page 24: Supported Then Actions
UC1152 User Guide triggered. If you select a "Lockout Time" of 10s, a "Continue Time" of 5s, and choose , the statement will be triggered as soon as the value of the selected channel input goes above 10, and remains above 10 for 5s. It will then start checking the value of the selected channel input again after 10s and be triggered once more if the value of the selected analog input is above 10 for 5s. - Page 25 Only letter, number, comma, period, separator, space and exclamation mark are allowed in the message, and the maximum character length is 60. 4.7.2.3 THEN Restart the Device A command containing this Action will restart the Ursalink UC1152 if the condition is met.
-
Page 26: Upgrade
Note: Any operation on Ursalink ToolBox is not allowed during upgrading, otherwise the upgrading will be interrupted, or even the device will break down. -
Page 27: Control Appliances
UC1152 User Guide The Ursalink UC1152 will send a custom message at 8 a.m. every Monday. 5.2 Control Appliances Send an Alert When Channel Value Exceeds a Certain 5.2.1 Threshold Configuration: Hardware: Software: -END-...
