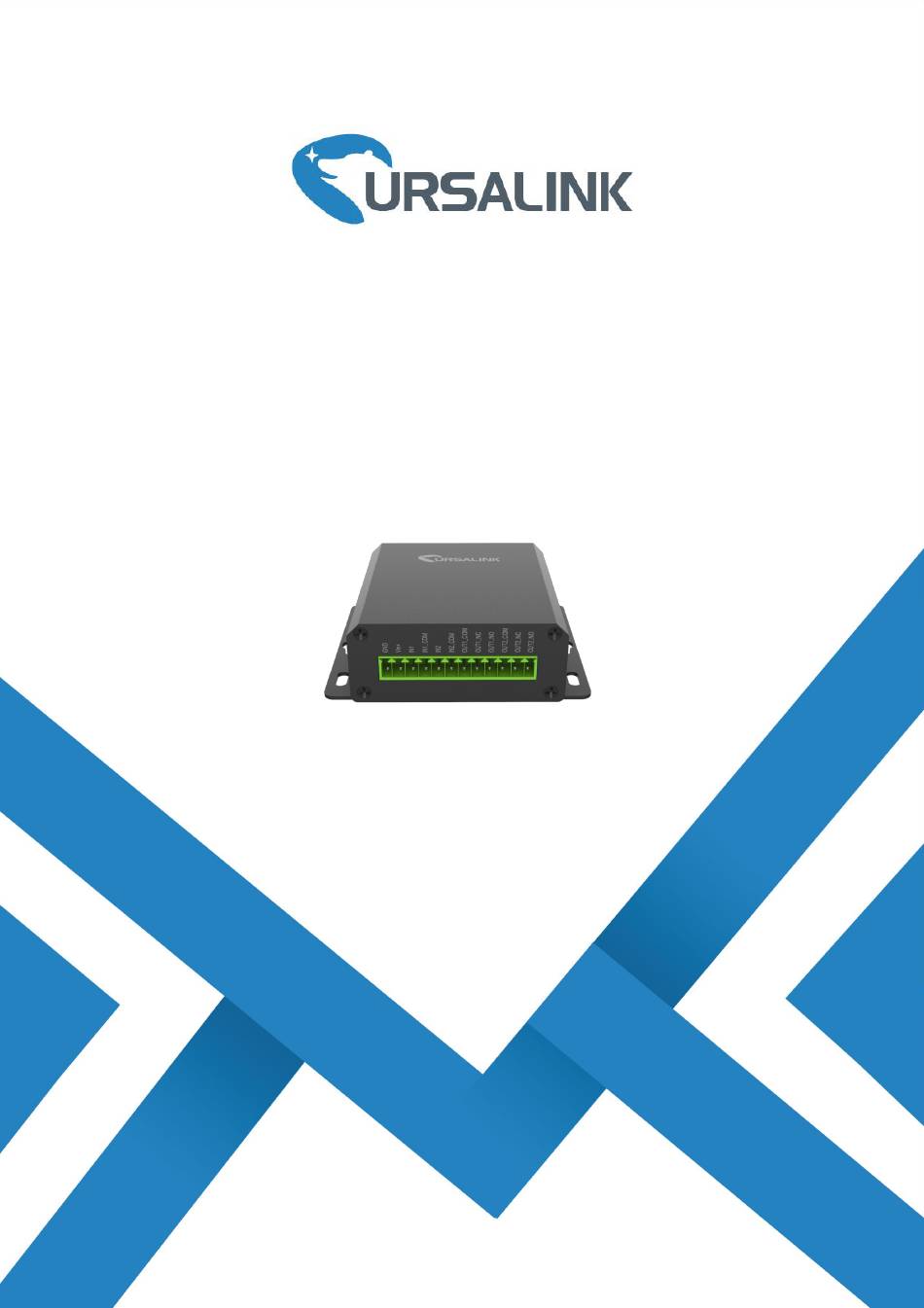

- Page 1 UC11 Series LoRa Remote I/O Quick Start Guide...
-
Page 2: Related Documents
Thank you for choosing Ursalink UC11 series remote LoRa I/O. This guide describes how to install the UC11 series remote LoRa I/O and how to connect to Ursalink LoRaWAN gateway. Once you complete the installation, refer to the Ursalink UC11 User Manual for instructions on how to perform configurations on the device. -
Page 3: Package Contents
Ursalink UC11 Quick Start Guide 1. Packing List Before you begin to install the UC11 series remote LoRa I/O, please check the package contents to verify that you have received the items below. 1.1 Package Contents Setscrews 1 × UC11 1 ×... -
Page 4: Hardware Introduction
Ursalink UC11 Quick Start Guide 2. Hardware Introduction 2.1 Overview A. Front Panel LED Indicator Area System: System Indicator ACT: Network Indicator LoRa Antenna Connector Micro USB Interface Rear Panel 12-Pin Pluggable Terminal 2.2 Dimensions (mm) www.ursalink.com... -
Page 5: Led Indicators
Ursalink UC11 Quick Start Guide 2.3 Pinouts Models UC1114 UC1122 UC1152 IN1_COM AIN1+ AIN1- IN2_COM AIN2+ OUT1_COM AIN2- OUT1_NC OUT1_NO IN_COM IN_COM OUT2_COM OUT_COM OUT_COM OUT2_NC OUT_NC OUT_NC OUT2_NO OUT_NO OUT_NO 2.4 LED Indicators Indication Status Description Solid On System booting... -
Page 6: Hardware Installation
Ursalink UC11 Quick Start Guide 3. Hardware Installation Environmental Requirements - Power Input: 5-24 VDC - Operating Temperature: -40°C to 70°C (-40°F -158°F) - Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F 3.1 Antenna Installation Rotate the antenna into the antenna connector accordingly. -
Page 7: Getting Started
4. Connect to Ursalink LoRaWAN Gateway 4.1 Configure UC11 via Toolbox UC11, connect PC USB port to micro USB port of UC11 series remote LoRa I/O directly, PC Power on the Setup the Toolbox. Select Serial port and input the login password, default “123456”, then click “Save”... - Page 8 Ursalink UC11 Quick Start Guide Click “LoRaWAN” configure the LoRaWAN parameters, Including the EUI, channels. ④ www.ursalink.com...
- Page 9 Ursalink UC11 Quick Start Guide Click “Channel” configure RS485 modbus master channels ⑤ www.ursalink.com...
- Page 10 Ursalink UC11 Quick Start Guide 4.2 Configure LoRaWAN Gateway ① Log in the Gateway A. Start a Web browser on your PC (Chrome and IE are recommended), type in the IP address, and press Enter on your keyboard. B. Enter the username and password, click “Login”.
- Page 11 Ursalink UC11 Quick Start Guide Click “LoRaWAN → Network Server → General”, enable embedded Network Server ④ Click “LoRaWAN → Network Server → Applications”, add applications ⑤ www.ursalink.com...
- Page 12 Ursalink UC11 Quick Start Guide Click “LoRaWAN → Network Server → Profiles”, add profiles ⑥ Click “LoRaWAN → Network Server → Device”, input the device EUI and application key of end node ⑦ www.ursalink.com...
- Page 13 Ursalink UC11 Quick Start Guide Check device active status and packets ⑧ www.ursalink.com...
- Page 14 Ursalink UC11 Quick Start Guide Click “LoRaWAN → Network Server → Applications”, configure sending data from Network Server to ⑨ Application Server via HTTP or MQTT [END] www.ursalink.com...
