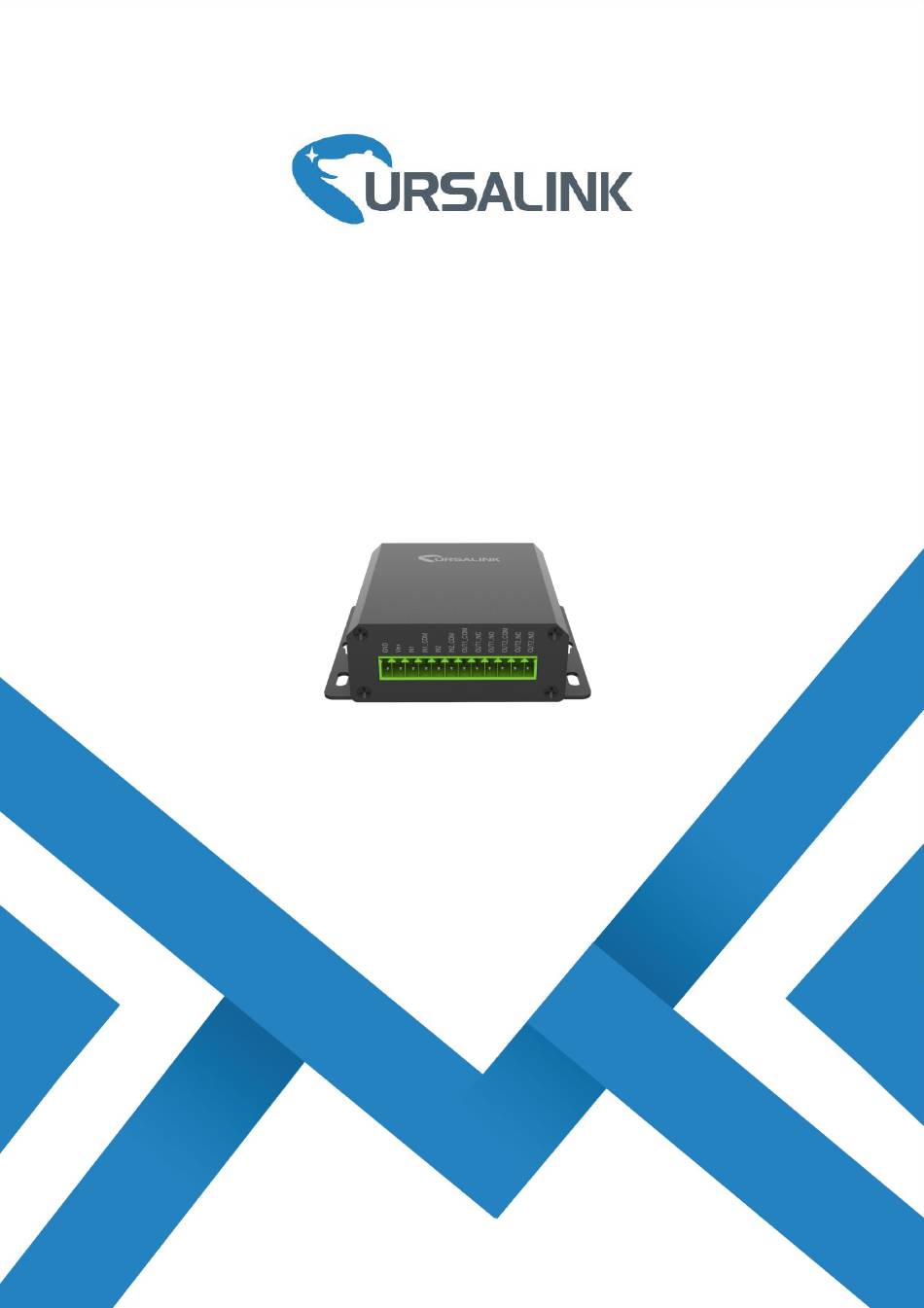

- Page 1 UC1X14 Series SMS Remote I/O Quick Start Guide...
-
Page 2: Related Documents
Thank you for choosing Ursalink UC1x14 series SMS remote I/O. This guide describes how to install the UC1x14 series SMS remote I/O. Once you complete the installation, refer to the Ursalink UC1x14 User Manual for instructions on how to perform configurations on the device. -
Page 3: Package Contents
Optional Accessories 1 × Power Adapter 1 × Magnetic Mount (Optional) Cellular Antennas (Optional) If any of the above items is missing or damaged, please contact your Ursalink sales Representative. 2. Hardware Introduction 2.1 Overview A. Front Panel LED Indicator Area... -
Page 4: Dimensions (Mm)

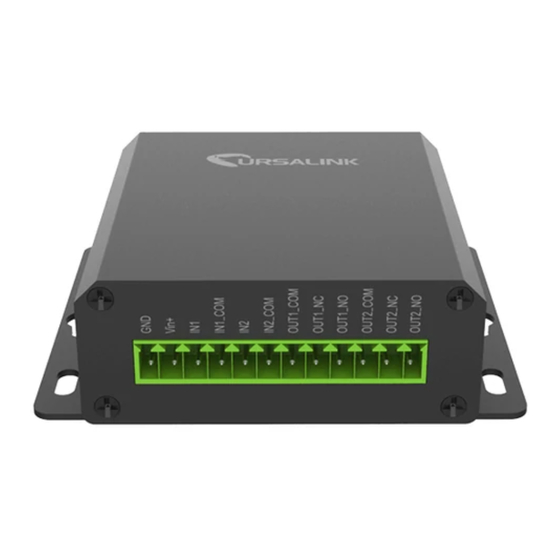

Ursalink UC1x14 Quick Start Guide Rear Panel 12-Pin Pluggable Terminal 2.2 Dimensions (mm) 2.3 Pinouts Power Digital Input Relay Output Description DC power supply (-) DC power supply (+) Input1 IN1_COM Common Ground Input2 IN2_COM Common Ground2 OUT1_COM Common Ground... -
Page 5: Hardware Installation
Ursalink UC1x14 Quick Start Guide 2.4 LED Indicators Indication Status Description Solid On Equipment starts System System Status On for 500ms, off for 500ms All OK On for 100ms, off for 100ms Device can not send SMS Network registration fails... -
Page 6: Antenna Installation
Ursalink UC1x14 Quick Start Guide E. Re-install the mother board into the case 3.2 Antenna Installation Rotate the antenna into the antenna connector accordingly. The external cellular antenna should be installed vertically always on a site with a good cellular signal. - Page 7 Ursalink UC1x14 Quick Start Guide 3.4 Mount the UC1x14 Use 2 pcs of flat head Phillips screws to fix the UC1x14 onto the wall mounting. 4. Confiure UC1x14 4.1 Configure UC1x14 via Toolbox Please connect PC USB port to micro USB port of UC1x14 series SMS remote I/O directly, PC Setup the Toolbox.
- Page 8 Ursalink UC1x14 Quick Start Guide Click “ ” to check status of the Remote I/O ② Click “ ”, network type use Auto and configure the SMS center number of the SIM card ③ www.ursalink.com...
- Page 9 Ursalink UC1x14 Quick Start Guide ④Click “ ” configure the IF&THEN commands. ⑤Click “ ” to configure the IF&THEN commands and click “ ”, check details of the commands in user manual www.ursalink.com...
- Page 10 Ursalink UC1x14 Quick Start Guide ⑥Click “ ” to save the command into UC1x14 ⑦Click “ ” to read the commands configured in the UC1x14 www.ursalink.com...
- Page 11 Ursalink UC1x14 Quick Start Guide ⑧Click “ ” to configure the SMS control phone center number and SMS report phone number, then click “Save” [END] www.ursalink.com...
