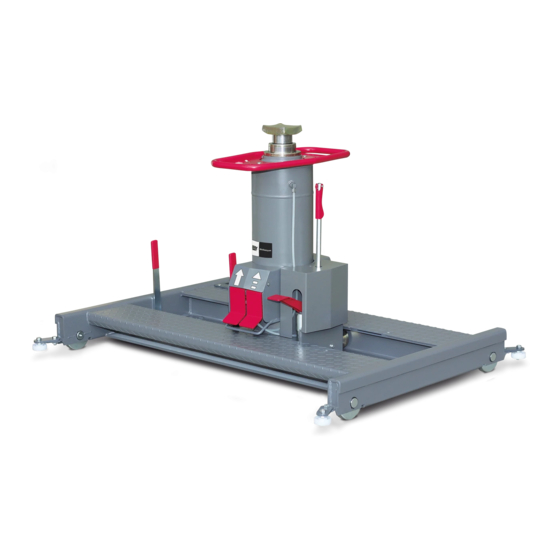

Blitz R 15/15 Instruction Manual And Spare Parts List

Mobile pit lifts
Hide thumbs
Table of Contents

Advertisement

Quick Links

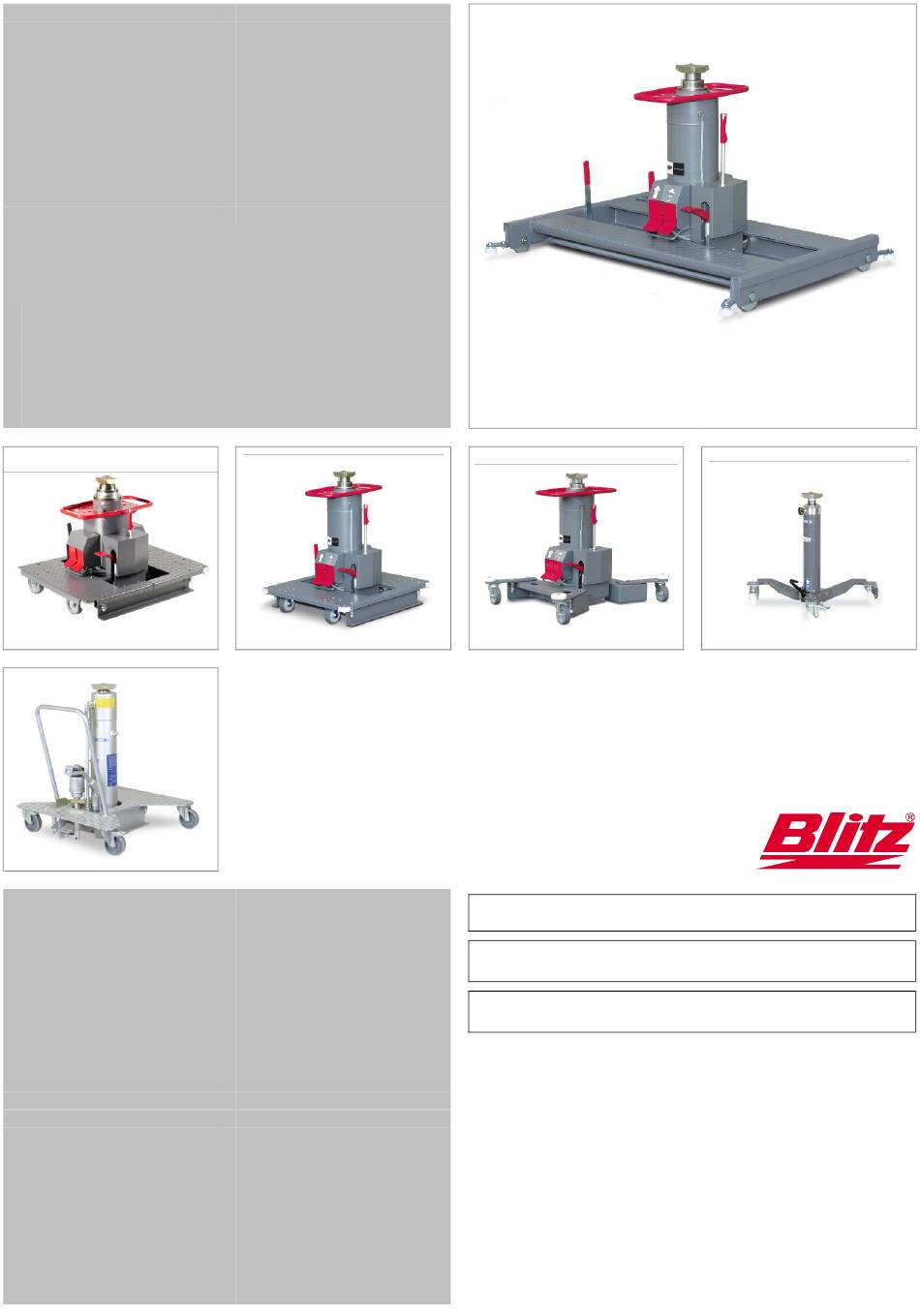

Instruction Manual and Spare Parts
List
for Mobile Pit Lifts
Original Instruction Manual
Blitz
R 15/15
R 20/15
R 15/15/15
Blitz
X 15/15
X 20/15
X 15/15/15
Blitz
M 15/15
M 20/15
M 15/15/15
Junior Jack
0,5 S3
2,0 S3
Master Jack
2,5
4,0
Type
Serial Number
Date
Rev. D 118774
05/2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R 15/15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blitz R 15/15

Summary of Contents for Blitz R 15/15

  • Page 1 Instruction Manual and Spare Parts List for Mobile Pit Lifts Original Instruction Manual Type Blitz R 15/15 R 20/15 Serial Number R 15/15/15 Blitz X 15/15 Date X 20/15 X 15/15/15 Blitz M 15/15 M 20/15 M 15/15/15 Junior Jack...
  • Page 3 We hereby declare that the machine described below Product designation Pit lift Series/Type description Blitz R, Blitz M, Blitz X, Junior Jack, Master Jack Machine/Serial No.: Year of construction: ......
  • Page 4 Oil drain screw lifting Compressed air connection [11] Oil dip stick lifting / oil filler neck Oil drain screw return [12] Oil dips stick return / oil filler screw [10] Brake Series: [11] Operating pressure measuring screw Blitz M [12] Deflector rollers...
  • Page 5 Instruction Manual for Mobile Jacks [10] [12] [10] [12] Series: Series: Blitz X Blitz R [10] Series: Series: Junior Jack S3 Master Jack...

  • Page 6: Table Of Contents

    Instruction Manual for Mobile Jacks Contents Introduction & Basic Safety Instructions ................7 1.1 Intended Use ..............................7 1.2 Basic Instructions ............................7 1.3 Safety-relevant components ........................7 1.4 Explanation of Notes ........................... 7 Storage ............................7 Transport, Installation, and Assembly ................8 3.1 Prepare Lifting Cylinder for Operation .....................

  • Page 7: Introduction & Basic Safety Instructions

    Instruction Manual for Mobile Jacks 1 Introduction & Basic Safety Instructions Blitz lifts are the result of long years of experience. The high quality standards and the superior concept guarantee you reliability, long fatigue life, and efficiency. In order to avoid unnecessary damage and hazards, you should read this instruction manual carefully and should always follow the instructions.

  • Page 8: Transport, Installation, And Assembly

     Transport the lift cylinder horizontally and with the controls at the top.  Secure moving and loose parts. 3.1 Prepare Lifting Cylinder Operation Junior Jack S3 Blitz 15/15 Blitz 15/15/15 Master Jack The above-named lifts are supplied  ready for operation (including oil) and can be used immediately.
  • Page 9  Match rollers E to the pit width.  Check safe contact of the rollers over the entire length of the rails. Free floor-running carriage (Blitz M)  Before assembly, it is helpful to support the base frame so that the rollers are free.

  • Page 10: Compressed Air Supply

    Required compressed air quality according to ISO8573-1:  Air quality: Pressure dew point ≤5 °C Filtration of all solid particles > 3 micron  Connection pressure: Blitz Master Jack min. 9 bar max. 12 bar Blitz Junior Jack min. 3 bar max.

  • Page 11: Electrical Connection

    Instruction Manual for Mobile Jacks Electrical Connection WARNING Risk of injury and material damage from electric shock  The electrical connection and the applicable national protection regulations shall be provided and checked by a specialist. The electrical connection must be composed of a cable with 5-pin CEE coupling 16 A, which is connected to a 400 V/50 Hz mains supply.

  • Page 12: Supporting Bridges And A-Frames

    Instruction Manual for Mobile Jacks Transmission plate Safe removal, installation, and transport of vehicle parts. Use special support plates and extensions, when required, for load pick-up points which are difficult to access. Contact the manufacturer for further information concerning all load pick-up devices. Supporting Bridges and A-frames Safety Notes ...

  • Page 13: Advice On Hazards

    Instruction Manual for Mobile Jacks Advice on hazards CAUTION Please refer to the instruction manual. DANGER Start movement of the lift only when there is no danger to personnel. Always monitor lifting and lowering movements. Use the lift only in a proper condition in relation to safety. DANGER Always check that the vehicle is secure at the pick-up points after a short lift.

  • Page 14: Lifting, Lowering, And Transporting Loads

    Instruction Manual for Mobile Jacks Lifting, Lowering, and Transporting Loads DANGER Danger to life, risk of injury from lifted vehicles  Only load lift and load pick-up devices centrically by positioning the center of gravity in the middle. Safety Notes ...

  • Page 15: Maintenance And Repair

    Instruction Manual for Mobile Jacks 6 Maintenance and Repair WARNING Risk of injury and material damage  Always service and repair the lift without a load. Safety Notes  Maintenance and repair work on the lift may be performed only by specialists. ...

  • Page 16: Check The Hydraulic Fluid Level

    Instruction Manual for Mobile Jacks Check the hydraulic fluid level. Hydraulic fluid load lift  Retract the piston rod [1] completely.  Disconnect the lift from the compressed air supply or the mains.  Remove the load lifting dipstick [7] by turning it, and check the hydraulic fluid level. If required, fill with hydraulic fluid up to the mark.

  • Page 17: Replacing The Hydraulic Hoses

    Instruction Manual for Mobile Jacks  After the fluid change, bleed the lift. ( 6.8) Replacing the hydraulic hoses  Retract the piston rod [1] completely.  Disconnect the lift from the mains.  Remove the bleed screw and install the cover D. ( 3.1) ...

  • Page 18: Replace The Hydraulic Block

    Instruction Manual for Mobile Jacks 6.10 Replace the Hydraulic Block Does not apply for Junior Jack S3.  Disconnect the lift from the compressed air supply.  Place the lift horizontally. In the case of inground carriages, remove the lift cylinder first. ( 3.2) ...

  • Page 19: Troubleshooting

    Instruction Manual for Mobile Jacks 7 Troubleshooting If the lift does not function without problems, it may have a simple cause. Please contact customer service in the case of an undefined problem. Problem Possible cause Repair Piston rod [1] moves down ...
  • Page 20 Instruction Manual for Mobile Jacks...
  • Page 21 Instruction Manual for Mobile Jacks...
  • Page 22 BlitzRotary GmbH Hüfinger Straße Telephone: +49.771.9233.0 78199 BRÄUNLINGEN Fax: +49.771.9233.99 DEUTSCHLAND www.blitz.rotarylift.com www.rotarylift.com...
