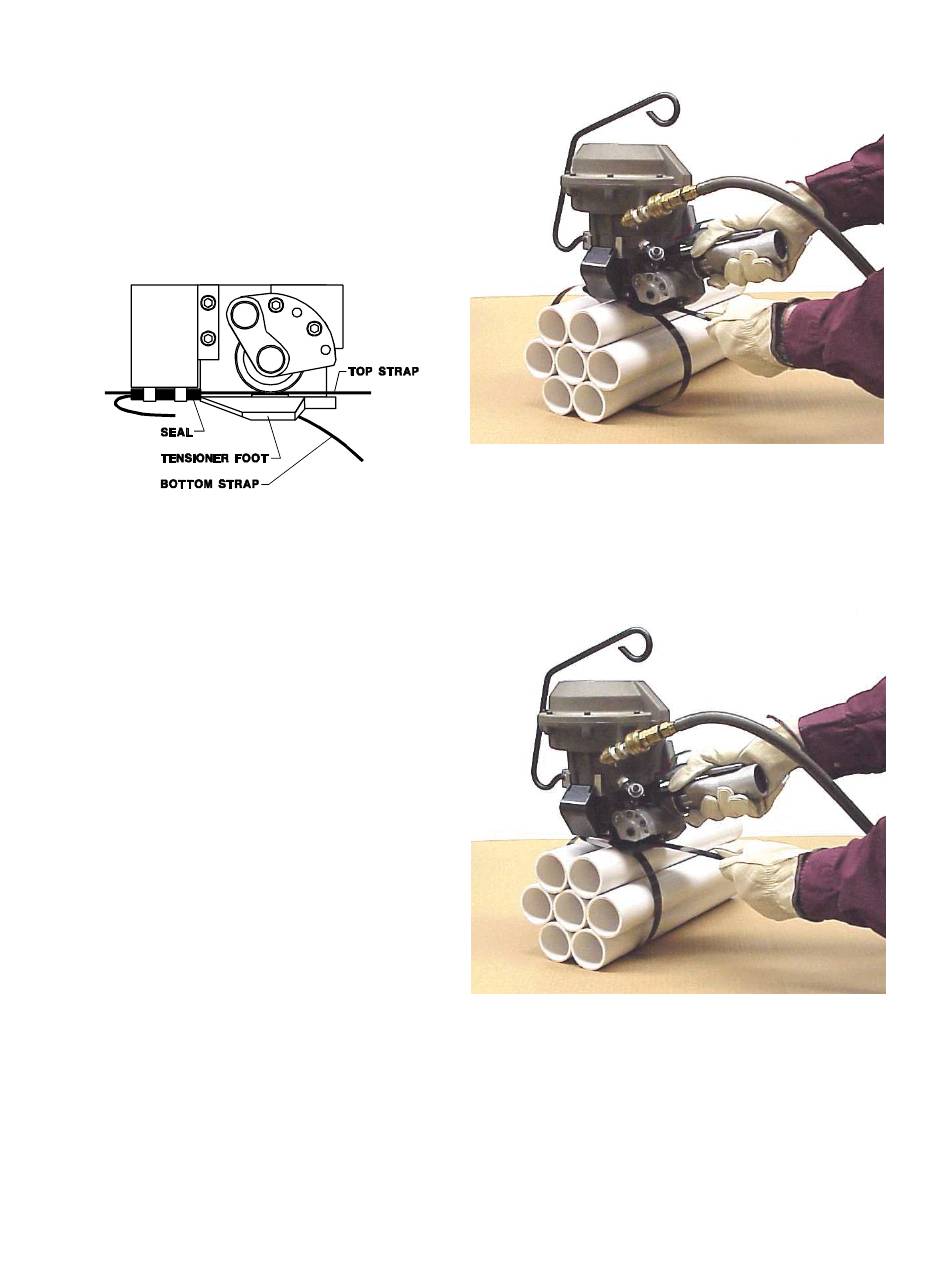

2. POSITIONING THE TOOL
Squeeze the handle and the air motor
together to create an opening between the
feedwheel and the tensioner foot. Grasp
the TOP STRAP and insert it sideways
into the tool between the feedwheel and
the tensioner foot. Make sure the strap
end is in contact with the inside surface of
the tensioner foot. When the TOP STRAP
is properly loaded, the sealing mechanism
will be in line with the seal.
Push the tool forward until the nose of the tensioner foot contacts the end of the seal.
3. REMOVING THE STRAP SLACK
Pull back on the TOP STRAP to eliminate
additional slack strap around the package.
NOTE: Before continuing, make sure the
TOP STRAP and the seal are still in
position, as described above. Note that
the BOTTOM STRAP will be positioned in
the channel on the bottom surface of the
breaker foot. This too, is necessary to
maintain strap alignment during tension.
