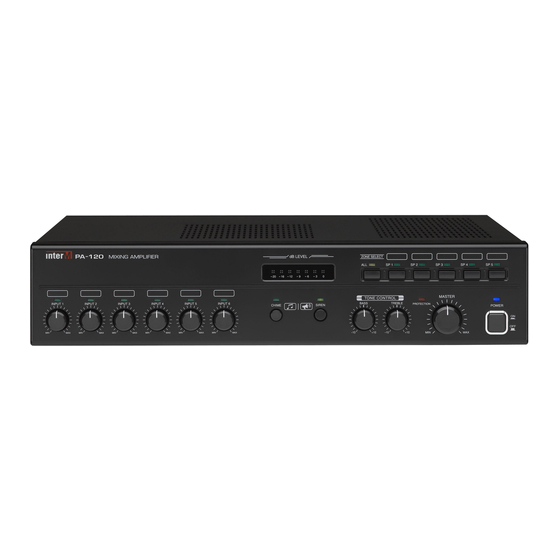

- Page 1 Integrated mixer amplifier PA-120...
- Page 2 ∴ SUMMARY The Inter-M PA-120 are integrated mixer amplifiers. They are complete and economical multi-purpose desktop mixer-amplifiers providing a cost-effective solution to public address and similar applications. Three versions are available with outputs of 120 watts respectively into direct (4 ohms) or distributed (70V/100V line) speaker systems.
- Page 3 ∴ THE NEW PA-120 ADVANTAGE Frequency Response (CH1~6) The new PA-120 offers enhanced frequency response compared to the former PA-4000. With an improved widened frequency response of 50Hz to 16Kz the new PA series offers better speech intelligibly and higher quality sound for Music reproduction.
-
Page 4: Technical Notes
PROTECTION The PA-120 employs a protection circuit to protect the amplifier from momentary or long-term overload and overheating. The PROTECTION LED on the front panel when lit indicates that the protection circuit is activated. No audio will be heard when the amp is in protection mode. - Page 5 ∴ FEATURE •High-efficiency Class-D Amplifier Offer greater power efficiency over traditional amplifiers, reduced physical size and lower heat dissipation. •Multiple input 6-Inputs (3 x 3 pin balanced XLR/ euroblock, 2 x balanced euroblock, 1 x stereo phono) Telephone input (Euroblock connectors) •Priority broadcasting Priority-telephone, mic 1, mic 2, chime and Siren, in order from ch1 to ch6.
- Page 6 ∴ SPECIFICATION PA 120 Rated Output 120W Frequency Response (@ Speaker Output, 1W) 80Hz - 15kHz THD (@ Rated Power, 1kHz) less than 1% S/N (@ Rated Output, Line Input) more than 78dB TONE CONTROL (100Hz, 10kHz, ±3dB) ±10dB Input Sensitivity / Impedance (@ High-Z Output) -50dBu / 2kΩ...
- Page 7 ∴ APPLICATION Applications include BGM, background music or paging. Ideal for use in places such as the classroom, training center, restaurant, and cafe. •Restaurants and Lounge •Seminar rooms and lecture halls •K through 12 •Higher education •Conference Room •Retail Shops Our technology can be found in schools, hospitals, malls, campus, transportation, correctional facilities and a variety of commercial and industrial applications.
- Page 8 ∴ ACCESSORIES BKT-A120 Inter-M Corp. (IMK) 719, Dobong-ro, Dobong-gu, Seoul, Korea Overseas Sales Team Tel_ +82-2-2289-8141~7 Fax_ +82-2-2289-8149 E mail_ overseas@inter-m.com www.inter m.com 2015. 3. V1 ※ Design and specification are subject to be changed for the improvement of product quality without pre notice.
