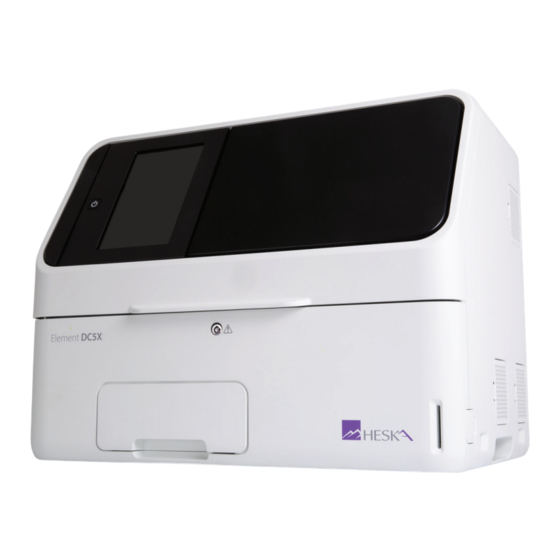

Heska Element DC5X Quick Step Manual

Veterinary chemistry analyzer
Hide thumbs Also See for Element DC5X:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

qs
q uick steps guide
Element DC5X Veterinary Chemistry Analyzer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Element DC5X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heska Element DC5X

Summary of Contents for Heska Element DC5X

  • Page 1 Element DC5X Veterinary Chemistry Analyzer...

  • Page 2: Replacing Consumables

    Veterinary Chemistry Analyzer q uick steps guide Element DC5X™ Veterinary Chemistry Analyzer Supplies NOTE: For access to the full user manual for this product, please visit www.heska.com/productmanuals. Remove testing supplies from refrigerator and warm to room temperature: • Slides: 5 minutes in foil pouch.
  • Page 3 Element DC5X Veterinary Chemistry Analyzer q uick steps guide Replacing Consumables (Cont’ d ) Replacing Mixing Cups 1. Touch the mixing cup image to turn sample carousel. 2. Remove used mixing cups from carousel and replace with new mixing cups.

  • Page 4: Sample Collection And Handling

    Suction limit 2. Transfer plasma or serum to a 0.5-ml Heska Red Top tube for analysis. NOTE: Full 0.5-ml Red Top tube−adequate volume for all available tests. The 1.5-ml Red Top tube should only be used if it can be filled to at least the 1-ml mark (second line).

  • Page 5: Basic Operation

    Element DC5X Veterinary Chemistry Analyzer q uick steps guide Basic Operation Make sure that [Ready], [Warming Up], or [Lamp Warming Up] is displayed before loading samples and slides. To stop sampling, touch STOP. Lift front cover. Place slides to be tested, barcode surface down, into slide cartridge and place weight on top.

  • Page 6: Running Samples

    Element DC5X Veterinary Chemistry Analyzer q uick steps guide Running Auto-Dilution Samples Example: To rerun Sample C with 5 times dilution: 1. Replace slides in slide cartridge C and place slide cartridge in position. 2. On test results screen, touch (Rerun) 3.

  • Page 7: Daily Maintenance

    NOTE: Test name and lot #’s appear on the display and will print out. Analyzer will store 5 lots per analyte or panel. Controls NOTE: Always wear gloves when running controls. 1. Run HESKA Chemistry Control solution as you would a patient sample by transferring into a 0.5-ml Red Top tube. 2. Select [Control] for your species. Daily Maintenance 1.
  • Page 8 Element DC5X Veterinary Chemistry Analyzer Slides Quantity Per Box CAT 6330-ALB Albumin 24/box CAT 6330-ALP Alkaline Phosphatase 24/box CAT 6330-ALT ALT (GPT) 24/box CAT 6330-AMY Amylase 24/box CAT 6330-AST AST (GOT) 24/box CAT 6330-BUN 24/box CAT 6330-CA Calcium 24/box CAT 6330-CHOL...
  • Page 9 For further assistance, please call Heska’s Technical Support Services at 800.464.3752, option 3. ©2018 Heska Corporation . All Rights Reserved. HESKA is a registered trademark and Element DC5X is a trademark of Heska Corporation in the U.S. and other countries. 18MD0501 CAT6609...
