Summary of Contents for Mikasa MTX-60ER

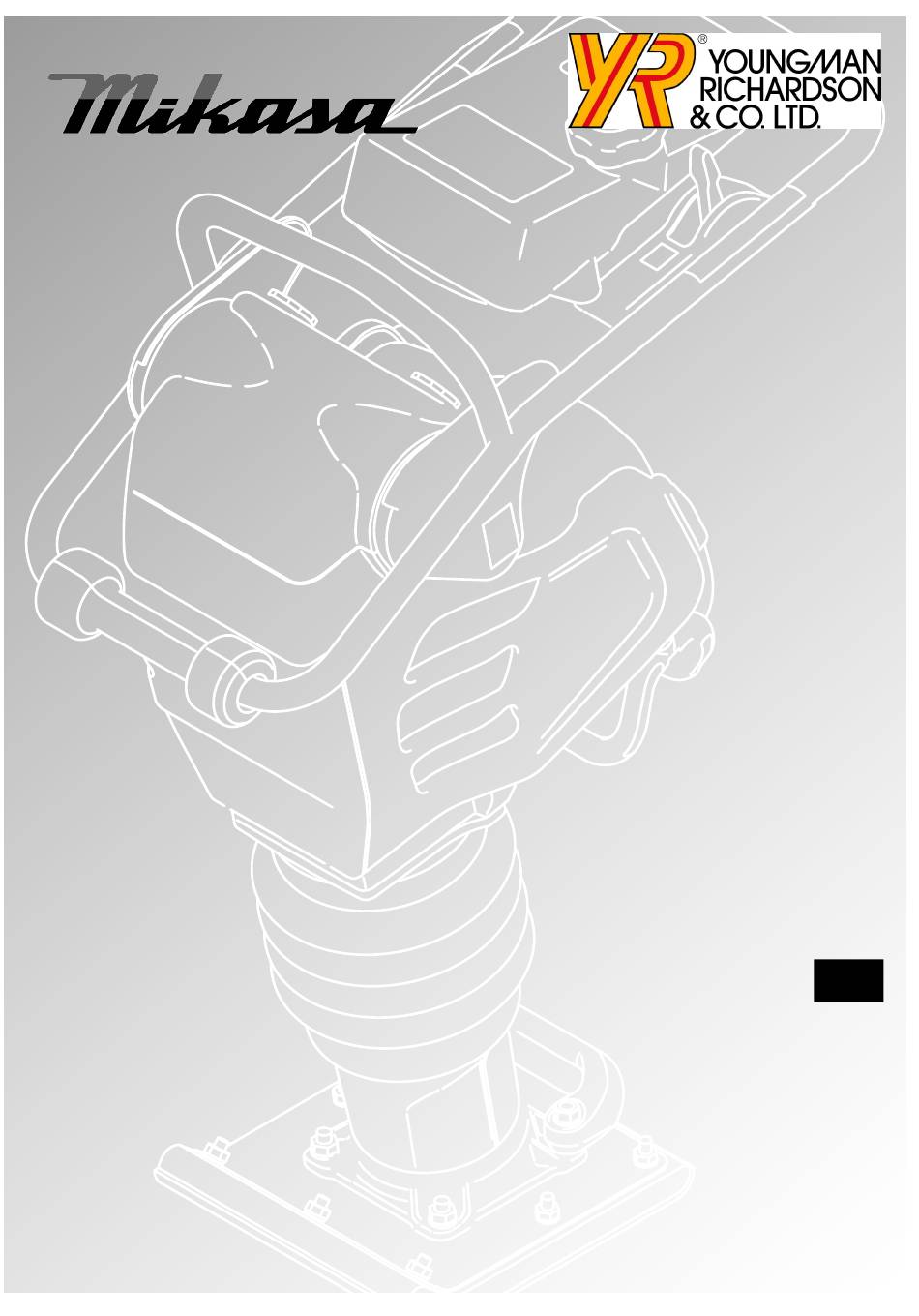

- Page 1 TAMPING RAMMER MTX-60ER MTX-70ER MTX-80ER INSTRUCTION MANUAL 302-05401 Original...
- Page 3 2012-05-01 Specifications for MTX-series Rammer Specifications Model MTX-60ER MTX-70ER MTX-80ER Overall height 1,025 1,027 1,027 Overall width Overall length Shoe Size W x L 265 x 340 285 x 340 10.7 ～11.6 10.7 ～ 11.6 10.7 ～ 11.3 Number of Blow (644 ～...
-
Page 4: Table Of Contents
MTX TAMPING RAMMER INSTRUCTION MANUAL Table of contents Preface ................1 Application ................ 1 Warning about incorrect applications and techniques ..1 Structure ................1 Power transmission ............1 Warning labels ..............2 Precautions for safety ............2 General precautions ............ -
Page 5: Preface
For inquiries about repair parts, parts lists, service manuals, and repair of the machine, please contact the shop where you purchased it, our sales office, or the Mikasa Parts Service Center. In addition, parts lists are available on the MIKASA website at: http://www.mikasas.com/english/... -
Page 6: Warning Labels
Before performing any maintenance, be sure to turn the engine off. ■ Mikasa does not accept any liability for accidents or problems caused as a result of not using genuine Mikasa parts (foot assembly, etc.), or if the machine has been modified. -
Page 7: Precautions When Adding Fuel
Precautions when adding fuel DANGER ！ ■ When adding fuel. Be sure to work in a well ventilated location. Be sure to turn the engine off and wait until it has cooled down. Take the machine to a clear flat location without any combustibles nearby. Be careful not any over fuel. -
Page 8: Precautions While Lifting
Precautions before starting work(Continued) DANGER ！ ■ Take the utmost care not to allow the machine to fall during work, or when s t o p p e d o r s t o r e d . S e c u r e t h e machine with a rope or similar tie when stored or left idle so that it cannot fall. -
Page 9: Transportation And Storage Precautions
Transportation and storage precautions DANGER ！ When transporting ■ Before transporting the machine, stop the engine. ■ DO NOT try to move it before the engine and machine body have cooled down enough. ■ Drain any fuel before transporting the machine. ■... -
Page 10: Places Where Decals Are Attached
BETREIBSGEWICHT/ PESO.MAX./PESO OPERATIRO 8(QUICK MANUAL) OUTPUT/PUISS.MAXI./ LEISTNG/POTENZA MASSIMA/ POTENCIA MAX Made in Japan MIKASA SANGYO CO.,LTD 1-4-3,Sarugaku-cho,Chiyoda-ku,Tokyo,Japan series quick manual Engine Oil Use SAE 10W/30,SE or higher grade motor oil RAMMING CYLINDER OIL Use SAE 10W/30,SF or higher grade moter oil... - Page 11 Product number name plate Product name, machine serial number, weight, MODEL/MACHINE TYPE/ engine output, and CE mark MODELL/MODELLO/MODELO SERIAL NO./N DE SERIE/ FABRI.NR./N.MATRICOLA/ N.MATRICULA WEIGHT/POIDS TOTAL/ BETREIBSGEWICHT/ PESO.MAX./PESO OPERATIRO OUTPUT/PUISS.MAXI./ LEISTNG/POTENZA MASSIMA/ POTENCIA MAX Made in Japan MIKASA SANGYO CO.,LTD 1-4-3,Sarugaku-cho,Chiyoda-ku,Tokyo,Japan...
-
Page 12: Dimensions
Dimensions 350(MTX-60ER,70ER) 713(MTX-60ER) 365(MTX-80ER) 788(MTX-70ER,80ER) 265(MTX-60ER) 285(MTX-70ER,80ER) -
Page 13: Components
Components HOOK AIR CLERNER COVER (UPPER) COMBINATION LEVER ASSY HANDLE ASSY ROLLER ASSY BELLOWS FOOT ASSY FUEL TANK ASSY FUEL TANK CAP ASSY MUFFLER ASSY ENGINE ASSY RECOIL STARTER OIL GAUGE DRAIN PLUG HOUR AND TACHO METER... -
Page 14: Inspection Before Operation
Inspection before operation WARNING ！ ■ Only check the machine while the engine is stopped. Otherwise, you may be caught by the rotating components and be seriously injured. ■ Check the machine body only after it has cooled down. The muffler is very hot and you may be badly burned. -
Page 15: Operation
Operation Starting Slide the throttle lever from the stop to the idle position( ). That opens the fuel cock and the e n g i n e e l e c t r i c a l c i r c u i t i s t u r n e d o n automatically. -
Page 16: Operation
Hold the recoil starter handle and pull it a little. You will feel resistance. Then, pull it hard to turn the engine. Allow the starter rope to return slowly into the case before letting go of the handle. (Fig.6) After the engine has started, open the choke lever gradually until it is wide open. -
Page 17: Stopping The Machine
In the cold season, the oil in the machine will be thicker, and the resistance of the components will be much larger, which may cause irregular m o t i o n . S h i f t t h e t h r o t t l e l e v e r f r o m t h e operation to the idle position several times and allow it to warm up sufficiently before starting actual work. -
Page 18: Maintenance And Storage
Maintenance and storage Wash off any dirt or mud on each part of the For prolonged storage machine using fresh water. - Slide the throttle lever to the stop position. - Drain any fuel and replace the lubrication oil. After the engine and main body have cooled Apply grease to the lubrication points. - Page 19 Remove the drain plug on the lower part of the machine body and drain the oil inside. Then Oil gauge add the specified amount of new oil. (Fig.11) Drain plug Model MTX-60ER MTX-70ER MTX-80ER Capacity 0.65 0.82 0.82 (liters) fig.11...
- Page 20 Secondary element (clean every 100 to 150 hours) When the secondary element (under the primary element) becomes dirty, wash it with neutral detergent solution and dry it well. Then reuse it. (Fig.13, 14) Secondary element fig.13 fig.14 Be sure to check the fuel line for damaged or looseness.
-
Page 21: Troubleshooting
Troubleshooting Engine 1.Won't start Fuel is present Electricity is being The gap in the spark plug tip is clogged. but the spark plug s u p p l i e d t o t h e Carbon is stuck on the spark plug is not sparking. - Page 22 Note - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
