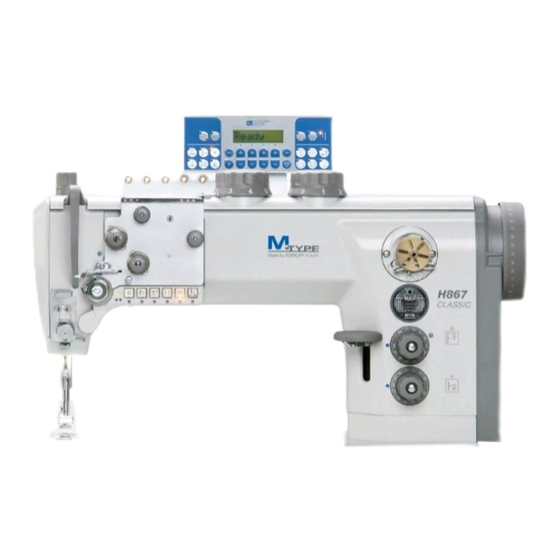

DURKOPP ADLER 867 Additional Instructions

DURKOPP ADLER 867 Additional Instructions

Remaining thread monitor
Hide thumbs Also See for 867:

Advertisement

867
867-M
867-M PREMIUM
Additional Instructions
Remaining thread monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 867 and is the answer not in the manual?

Questions and answers

Summary of Contents for DURKOPP ADLER 867

  • Page 1 867-M 867-M PREMIUM Additional Instructions Remaining thread monitor...
  • Page 2 IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE All rights reserved. Property of Dürkopp Adler AG and protected by copyright. Any reuse of these contents, including extracts, is prohibited without the prior written approval of Dürkopp Adler AG. Copyright © Dürkopp Adler AG 2018...
  • Page 3: Table Of Contents

    PREMIUM machines ............. 10 Setting the remaining thread monitor electrically......12 Software settings ................ 14 2.4.1 Parameter settings for classes 867 and 867-M ......14 2.4.2 Parameter settings for class 867-M PREMIUM ......16 Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 4 Table of Contents Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 5: General Information

    Cylinder-head bolt M3x30 9710 982003 Silencer 9840 121002 Cable tie 9840 120025 Mounting clip 0791 867720 EN Additional Instructions Kit 0867 590104 9202 002077 Cylinder-head bolt M4x10 0767 150170 Bobbin 0867 150240 Bobbin Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 6 0867 150170 Compression spring Kit 0867 590134 0667 156014 Bobbin case 0667 155614 Bobbin case 9202 002078 Cylinder-head bolt M4x10 0667 150880 Bobbin 0867 150560 Bobbin 9790 030020 Y-connection 0867 150170 Compression spring Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 7: Kits For M-Type Premium

    PREMIUM machine, you will need the following additional kits: (see  Parts List): • 9780 000108: Compressed air maintenance unit • 0867 593534: Pneumatic connection PREMIUM • 0797 003031: Pressure line K Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 8: Assembling The Remaining Thread Monitor

    As a rule, the front edge of the remaining thread monitor (1) must be assembled parallel to the front edge of the carrier (4). 3. Connect the hose (2) used for the blow-off. Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 9: Connecting The Remaining Thread Monitor

    2. Attach the circuit board (2). 3. Connect the cables to the circuit board (2): • A = Valve circuit board • B = Light barrier, left needle • C = Light barrier, right needle Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 10 7. Connect the cable (6) to plug connection X24 of the valve circuit board. 8. Guide the cables of the remaining thread monitors through the holes in the base plate and fix them to the existing cables with cable tie. Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 11 15. Assemble hoses and cables with clips to the oil return line and to the knee lever shaft. 16. Connect the magnet valve electrically to the valve circuit board. • X22, PIN 1/7/8 (+) and PIN4 (FL) • X22, PIN 1/7/8 (+) and PIN2 (FA) Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 12: Connecting The Remaining Thread Monitor On Premium Machines

    (1) - Circuit board 1. Loosen the circuit board (1). To do so, push the circuit board (1) down and off the white spacers. 2. Screw the connection plate and magnet valve together. Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 13 5. Tighten the connection plate (4) on the holder (3). Fig. 8: Connecting the remaining thread monitor on PREMIUM machines (3) ⑤ ⑥ ⑦ (5) - Compressed air maintenance unit (7) - Valve (6) - Hose Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 14: Setting The Remaining Thread Monitor Electrically

    3. Turn the hook to a position that the light beam falls through the slot in the hook housing onto the bobbin. 4. Set the potentiometer (5) or (7) to the highest sensitivity. To do this, turn the potentiometer clockwise. Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 15 The output to the control and the auxiliary output are switched on. 6. Turn potentiometer (5) or (7) counterclockwise to reduce the sensitivity until the reflection can just be detected. When sewing begins, the system leaves setting mode automatically. Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 16: Software Settings

    Assembling the remaining thread monitor 2.4 Software settings 2.4.1 Parameter settings for classes 867 and 867-M DAC classic control Parameter Value Function Operator level o 06 00 Remaining thread monitor o 06 05 0 - 9999 Number of stitches for the remaining thread...
  • Page 17 Information A detailed functional description of the remaining thread monitor functions and the stitch counts can be found in the instructions for use of the DA82GA or DA321G controls. Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 18: Parameter Settings For Class 867-M Premium

    3. Assign mode 2 (cleaning signal for RTM) to the output to which the remaining thread monitor is connected. Machine output signal Output RA (X16) X120B.12 STL (X17) X120B.22 STL (FA) (X18) X120B.23 Additional Instructions 867/867-M PREMIUM - 00.0 - 07/2018...
  • Page 20 DÜRKOPP ADLER AG Potsdamer Str. 190 33719 Bielefeld Germany Phone: +49 (0) 521 925 00 Email: service@duerkopp-adler.com www.duerkopp-adler.com...
