- Page 1 UNITY & UNITY OPERATION MANUAL UNITY_OM_EN_EU Part No.: 1964161_01...
-
Page 2: Table Of Contents
UNITY & UNITY+ CONTENTS CONTENTS ..............................2 MANUAL REVISIONS ..........................4 GENERAL INFORMATION ........................5 Hazard intensity levels ..........................5 Warnings ..............................5 Introduction ...............................6 Precautions ..............................9 Intended use ...............................9 User groups ..............................9 Possible types of misuse ........................10 Installation notes .............................10 Electrical connection notes ........................10 Warm connection requirements ......................11 Refrigeration system information .......................12 Safe milk handling reminders ........................13... - Page 3 UNITY & UNITY+ CONTENTS OPERATION ..............................25 Adjust slider .............................25 Make a drink.............................25 Fill coffee ..............................26 Fill ingredients ............................26 Fill FMU ..............................27 DAILY CLEANING AND CARE ......................29 Empty drip tray ............................29 Empty waste bin ............................30 Run rinsing cycle .............................31 FMU cleaning............................32 WEEKLY CLEANING AND CARE ....................36 Clean brewers with tablet ........................36 ON SCREEN MESSAGES AND ALERTS ..................38...
-
Page 4: Manual Revisions
MANUAL REVISIONS Rev. # Date TSB# Description April 15, 2019 None First draft released for initial review by Crem Technical Dept. -
Page 5: General Information
UNITY & UNITY+ GENERAL INFORMATION Hazard intensity levels There are two different levels of notification intensity within this manual, as identified by the signal words WARNING and Note. Always observe these warnings to ensure safety and prevent potential injury or equipment damage. CAUTION: Indicates a potentially hazardous situation which, if ignored, could result in serious injury or even death. -
Page 6: Introduction
UNITY & UNITY+ GENERAL INFORMATION Introduction CAUTION: Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. ▪... - Page 7 UNITY & UNITY+ GENERAL INFORMATION Introduction ▪ If the machine is likely to be exposed to temperatures below 0ºC during handling and transport, make sure that service personnel empties the boiler and water system. (The machine’s boiler and water system is empty when delivered from the factory.) ▪...
- Page 8 UNITY & UNITY+ GENERAL INFORMATION Introduction ▪ Avoid scalding! Keep hands and other body parts away from the paired coffee dispenser while drinks are being dispensed and during the rinsing program. ▪ Do not place cups, pots, or containers filled with hot liquids on top of the appliance. ▪...
-
Page 9: Precautions
UNITY & UNITY+ GENERAL INFORMATION Precautions ▪ Do not try to open the appliance or repair it in any way. ▪ Only have the appliance repaired in a technical workshop, service centre or by a qualified person. ▪ Remove the mains cable from the socket when the appliance is not in use for longer periods. ▪... -
Page 10: Possible Types Of Misuse
UNITY & UNITY+ GENERAL INFORMATION Possible types of misuse ▪ Danger caused by incorrect installation. ▪ Relying on personnel to care for the appliance that have not been properly instructed and are not fully qualified. ▪ Using products or ingredients that are out of date or are close to their best-before date. ▪... -
Page 11: Warm Connection Requirements
UNITY & UNITY+ GENERAL INFORMATION Warm connection requirements ▪ When connecting the appliance and/or refrigerator unit to the mains power supply make sure that the power rating shown in the “FACTS & WEIGHT” section matches the supply voltage for the installation location. ▪... -
Page 12: Refrigeration System Information
UNITY & UNITY+ GENERAL INFORMATION Refrigeration system information ▪ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ▪ Do not damage the refrigerant circuit. ▪ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. -
Page 13: Safe Milk Handling Reminders
UNITY & UNITY+ GENERAL INFORMATION Safe milk handling reminders CAUTION: Risk of machine damage! Improper handling of the appliance can result in damage! Under no circumstance may the appliance be used to heat or dispense any liquid other than the intended milk products (UHT / Pasteurized milk / Almond milk / Wheat milk / Soy milk). -
Page 14: Disassembly And Disposal
UNITY & UNITY+ GENERAL INFORMATION Disassembly and disposal ▪ Dispose of the dispenser in accordance with appliance regional disposal regulations. ▪ This appliance is subject to the Waste Electrical and Electronic Equipment Directive (WEEE/EU directive) and must not be disposed of together with normal domestic waste. ▪... -
Page 15: Compliance Code Calculator
UNITY & UNITY+ GENERAL INFORMATION Compliance code calculator The UNITY and UNITY+ coffee dispensing platform is designed to be modular and highly flexible so as to adapt to a nearly unlimited array of serving environments. Additionally, the platform is easily customizable due to easy part and system interchangeability. - Page 16 UNITY & UNITY+ GENERAL INFORMATION Compliance code calculator ...continued from previous page. A I E F - G # # # Sample code: POSITION #: CODE I.D.: EXPLANATION: indicates Standard version indicates CVS door cover version indicates FMU module version indicates 3G module version indicates FMU module + CVS door cover version indicates FMU module + 3G module version...
-
Page 17: Dispenser Specifications
UNITY & UNITY+ GENERAL INFORMATION Dispenser specifications SPECIFICATIONS ES14/18_BTB_FMU_IN ES14/18_BTB_IN Built-in grinder Compliance code AIEF-G39I-33BM AIEF-G39B-33BM Drink options 10 standard (220 possible) Ingredient canister Fresh milk unit Bean hopper Waste bin volume 2kg used coffee waste (dry weight) Drip tray volume Electronic temperature control Adjustable spout Adjustable cup height... -
Page 18: Component Overview
UNITY & UNITY+ COMPONENT OVERVIEW ES14/18_BTB_FMU_IN Dimensions Side view, right Front view Side view, doors open Position Dimension(mm) -18-... -

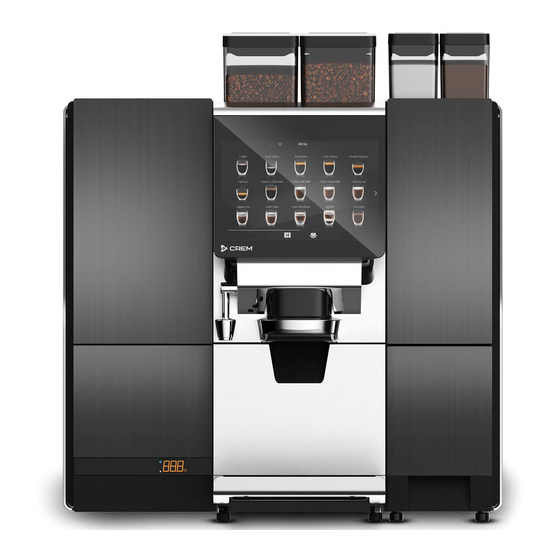

Page 19: Front View
UNITY & UNITY+ COMPONENT OVERVIEW Front View Coffee Canisters Instant Canisters Main Module Touchscreen Instant Module Hot Water Tap Adjustable Spout Waste Bin FMU Compressor Water Tank (Optional) Drip Tray Front View, doors open Mixers Milk Tank Espresso Brewer BTB Brewer -19-... -
Page 20: Es14/18_Btb_In
UNITY & UNITY+ COMPONENT OVERVIEW ES14/18_BTB_IN Dimensions Side view, right Back view Side view, doors open Position Dimension(mm) -20-... -
Page 21: Front View
UNITY & UNITY+ COMPONENT OVERVIEW Front View Coffee Canisters Instant Canisters Main Module Touchscreen Instant Module Hot Water Tap Adjustable Spout Waste Bin Water Tank (Optional) Drip Tray Front View, doors open Mixers Espresso Brewer BTB Brewer -21-... -
Page 22: Installation
UNITY & UNITY+ INSTALLATION Important: The appliance is intended to be installed by a trained technician only. If you are unsure about any of the installation steps listed below, do not attempt installation. Contact your distributor for a technician to perform the installation for you. - Page 23 UNITY & UNITY+ INSTALLATION Initial set up and installation -23-...
- Page 24 UNITY & UNITY+ INSTALLATION Initial set up and installation -24-...
-
Page 25: Operation
UNITY & UNITY+ OPERATION Adjust slider ± 20mm Make a drink -25-... -
Page 26: Fill Coffee
UNITY & UNITY+ OPERATION Fill coffee Fill ingredients -26-... -
Page 27: Fill Fmu
UNITY & UNITY+ OPERATION Fill FMU -27-... - Page 28 UNITY & UNITY+ OPERATION Fill FMU -28-...
-
Page 29: Daily Cleaning And Care
UNITY & UNITY+ DAILY CLEANING AND CARE Empty drip tray -29-... -
Page 30: Empty Waste Bin
UNITY & UNITY+ DAILY CLEANING AND CARE Empty waste bin -30-... -
Page 31: Run Rinsing Cycle
UNITY & UNITY+ DAILY CLEANING AND CARE Run rinsing cycle Press the top right corner to access Service Menu. Input the Service Menu password. (Password is available from the distributor.) Press the Cleaning icon to access the cleaning Press the Rinsing icon. options. -
Page 32: Fmu Cleaning
UNITY & UNITY+ DAILY CLEANING AND CARE FMU cleaning Unlock the door. Open the door. Remove the milk container. Dispose of any remaining milk. Wash the milk container either by hand (A), or in a dishwasher (B) that does not exceed 69ºC. -32-... - Page 33 UNITY & UNITY+ DAILY CLEANING AND CARE FMU cleaning Place the milk contianer on the door (A) and insert the dip tube into the cleaning vessel (B). Replace the milk container fully into the fridge. Add one cleaning tablet to the cleaning vessel. Press the Cleaning icon to access the cleaning Press the Cleaning FMU icon.
- Page 34 UNITY & UNITY+ DAILY CLEANING AND CARE FMU cleaning Place an empty 1L container under the outlet. Press Start, follow on screen instructions. To save time during FMU cleaning, wipe exterior After cleaning is finished, remove the dip tube from surfaces and interior of FMU.
- Page 35 UNITY & UNITY+ DAILY CLEANING AND CARE FMU cleaning Replace the milk container fully into the fridge. Close the door. Lock the door. -35-...
-
Page 36: Weekly Cleaning And Care
UNITY & UNITY+ WEEKLY CLEANING AND CARE Clean brewers with tablet Adjust the spout to the top position. Open the door lock access cover. Unlock the door. Raise the door to the highest position. Input the Service Menu password. (Password is Press top right corner to access Service Menu. - Page 37 UNITY & UNITY+ WEEKLY CLEANING AND CARE Clean brewers with tablet Press Program to access the short-cut cleaning Add one cleaning tablet to each brewer. menu. Press the Purification icon. Close the door. Place an empty 1L container under the outlet. Cafiza E-22 cleaning tablets (Art.
-
Page 38: On Screen Messages And Alerts
UNITY & UNITY+ ON SCREEN MESSAGES AND ALERTS Dispenser error messages The following error messages may be displayed as a result of a fault in the coffee or instant ingredient systems. Error Code: Error Explanation: Required Action: EC_1 General system fault EC_2 No machine connected EC_3... -
Page 39: Dispenser Error Messages
UNITY & UNITY+ ON SCREEN MESSAGES AND ALERTS Dispenser error messages The following error messages may be displayed as a result of a fault in the coffee or instant ingredient systems. Error Code: Error Explanation: Required Action: ELE_1 Grinder-1 has no beans left Add coffee. -
Page 40: Dispenser Error Messages
UNITY & UNITY+ ON SCREEN MESSAGES AND ALERTS Dispenser error messages The following error messages may be displayed as a result of a fault in the coffee or instant ingredient systems. Error Code: Error Explanation: Required Action: Too much current: Brewer-1/2 ECC_13 motor or Brewer-1/2 wiper ECC_14... -
Page 41: Fmu Error Messages
UNITY & UNITY+ ON SCREEN MESSAGES AND ALERTS FMU error messages The following error messages may be displayed as a result of a fault in the FMU system. Error Code: Error Explanation: Required Action: Gear pump not connected. Gear pump friction is too high. Air valve not connected. - Page 44 For the warranty to be valid the conditions for maintenance must have been followed according to the manufacturer’s instructions, proper precaution has been made and warranty claim has been issued without delay. The affected equipment may not be used while awaiting service if there is any risk that the damage or defect could worsen.
