SIGNAL FLOW

MOD
MOD
WHEEL
OSC
VCA

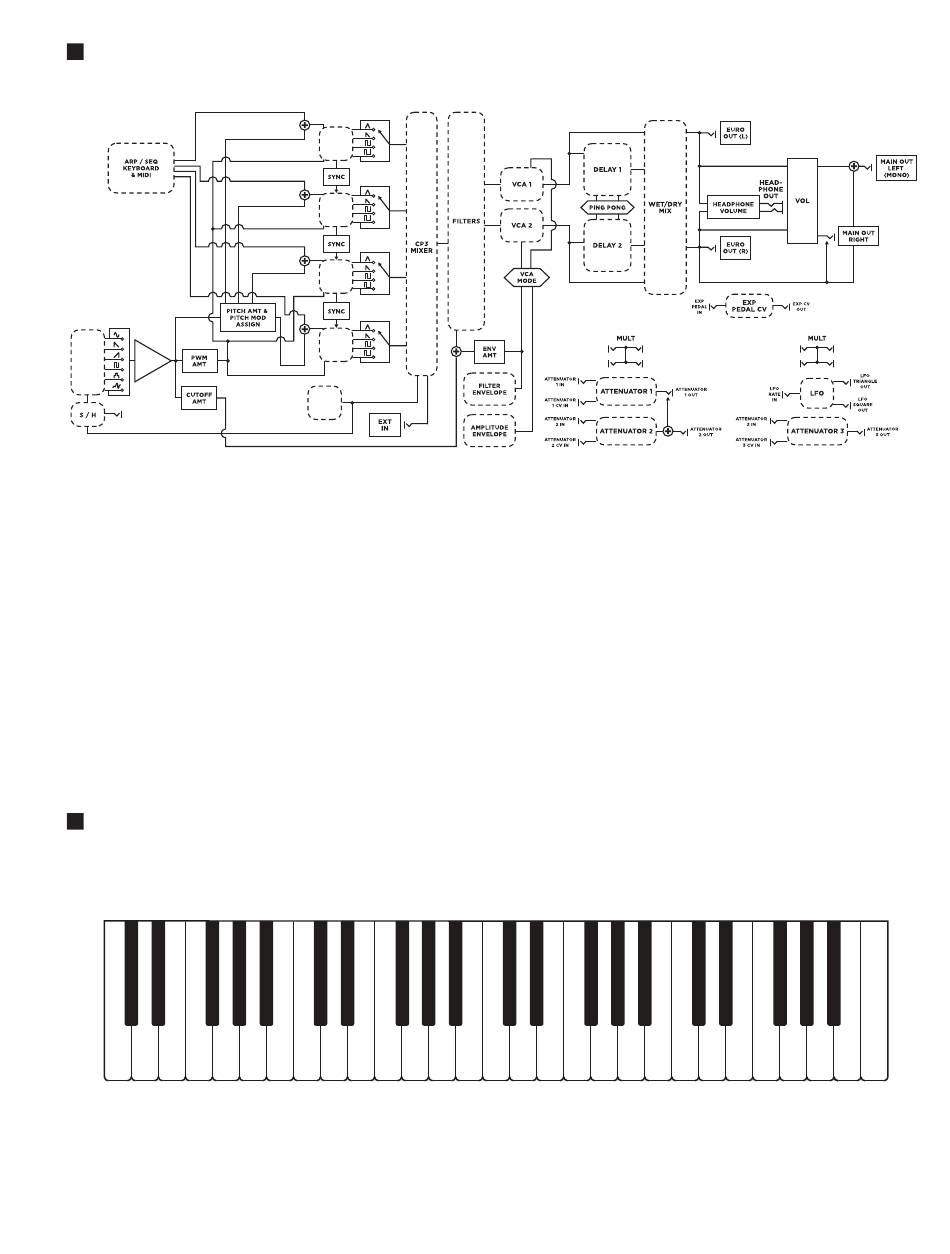

REFERENCE: To view the full Signal Flow diagram see Page 70-71.
FEATURES & CONTROLS
Matriarch's panel is comprised largely of single-function knobs, switches, and buttons that are grouped
together by module. Each module is equipped with a set of 3.5mm patch points that can be utilized
to create new audio and control pathways within Matriarch. These patch points can also be used to
establish synchronization and interconnectivity with other Moog synthesizers like Mother-32, DFAM,
and Grandmother, or to create a completely a new instrument through deep integration with a
Eurorack modular system.
NOTE: Additional patch points and connectors are available on Matriarch's rear panel.
KEYBOARD
Matriarch offers a 49-note Fatar keyboard with velocity and channel aftertouch. There are no hardwired
connections for these signals; they can be easily accessed via rear-panel patch points and MIDI.
NOTE: By using the Mults and Attenuators found in the Utilities modules, multiple parameters can be affected –
in varying amounts – using the Keyboard Pitch, Velocity and Aftertouch control signals.
PITCH
OSC 1
PWM
PITCH
OSC 2
PWM
PITCH
OSC 3
PWM
PITCH
OSC 4
PWM
NOISE
