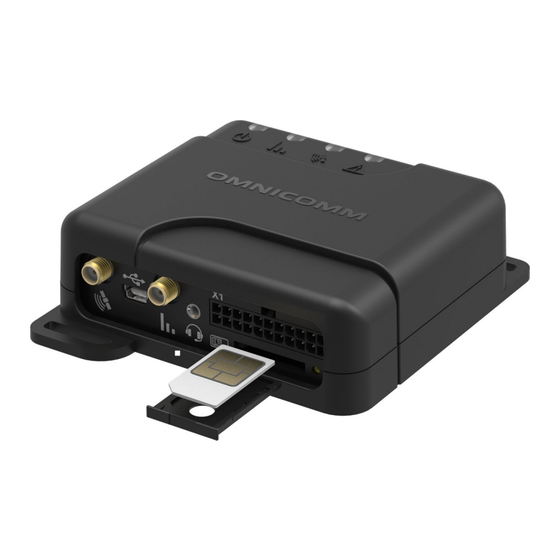

Omnicomm 3.0 Terminals
Profi, Profi Wi-Fi, Optim, Smart
User Manual
Omnicomm Configurator 6
30.09.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Profi and is the answer not in the manual?

Questions and answers

Related Manuals for Omnicomm Profi

Summary of Contents for Omnicomm Profi

  • Page 1 Omnicomm 3.0 Terminals Profi, Profi Wi-Fi, Optim, Smart User Manual Omnicomm Configurator 6 30.09.2019...

  • Page 2: Table Of Contents

    Second SIM Card and SD Card Inserting for Optim Protective Insert Placing for Optim Connector Pin Assignment Power Supply and Ignition Key Terminal Antennas Setting Overview Omnicomm Configurator Remote Configuration Server (RCS) Operation Parameters Setting GPRS connection Wi-Fi Data Transmission Connection to Communication Servers Data Collection...
  • Page 3 Setting Password on Configuration Changing Data Collection and Transmission Blocking Remote Configuration Server Operation Setting Terminal SIM Card Number Identification Additional Equipment RS-485 and RS-232 Interfaces Fuel Level Sensors Omnicomm ICON Display Omnicomm LLD Indicator Tachograph Universal Inputs Driver Identification Temperature Sensor Voice Communication...
  • Page 4 CAN Bus Specifications LED and Sound Notification SMS from the Terminal SMS Commands Firmware Change Log...

  • Page 5: General Information

    Data storage in non-volatile memory Data transmission to Omnicomm Online and other transport monitoring systems (except Smart, Smart Promo). Models of Omnicomm terminal differ from each other in the design and range of connected equipment. Attention While carrying out installation, observe the safety rules and regulatory requirements...

  • Page 6: Installation

    Installation Installation SIM Card Inserting Before SIM card inserting disable PIN request at activation. For this end insert the card in any cell phone and disable PIN request, according to the cell phone operating instruction. 1. Using a sharp-pointed object press the button on the terminal front panel. The SIM card holder will eject 2.

  • Page 7: Protective Insert Placing For Optim

    Installation Protective Insert Placing for Optim The protective insert is placed after SIM cards inserting, setting the terminal and before the connection of mounting cable connector and antennas. 1. Remove protective film from the insert 2. Carefully install the protective insert in the terminal body Reinstallation of the protective insert is not possible 3.

  • Page 8: Connector Pin Assignment

    Installation Connector Pin Assignment Omnicomm Profi terminals: Omnicomm Profi Wi-Fi terminals: Connector Х1: No. of pin Signal name Designation Wire colour in cable Ground (negative) for power supply Ground (signal) White Ground (negative) for power supply Ground (power) White Panic button...
  • Page 9 Installation No. of pin Signal name Designation Wire colour in cable Universal input 4 Input 4 Black-yellow RPM input Tachometer Blue Controlled output 2 Output 2 Yellow-dark blue Line RX RS-232 RS-232 RX Pink Line B RS-485 №2 B RS-485 №2 Black-blue Line B RS-485 №1 B RS-485 №1...
  • Page 10 Installation No. of pin Signal name Designation Wire colour in cable Line A RS-485 №1 A RS-485 №1 Orange-white CAN Н CAN Н Purple-orange Connector Х2: No. of pin Signal name Designation Wire colour in cable Microphone- Microphone- Green-yellow Speaker- Speaker- Grey-yellow Ground...
  • Page 11 Installation No. of pin Signal name Designation Wire colour in cable Universal input 6 Input 6 Purple Plus LLS sensor power supply PWR LLS Brown...
  • Page 12 Installation Omnicomm Optim terminal Connector Х1: No. of pin Signal name Designation Wire colour in cable Ground (negative) for power supply Ground (signal) White Ground (negative) for power supply Ground (power) White Panic button Panic button White-red Universal input 2...
  • Page 13 Black-red iButton+ iButton+ Pink-red Controlled output 1 Output 1 Yellow-red Line TX RS-232 RS-232 TX Grey Line A RS-485 №2 A RS-485 №2 White-green Line A RS-485 №1 A RS-485 №1 Orange-white CAN Н CAN Н Purple-orange Omnicomm Smart terminal...
  • Page 14 Installation Connector Х1: No. of pin Signal name Designation Wire colour in cable Ground (minus) for power supply Ground (signal) White RPM input Tachometer Dark blue Not used Not used Line B RS-485 LLS B RS-485 LLS Blue-white CAN L CAN L Purple-white Vehicle power supply voltage...

  • Page 15: Power Supply And Ignition Key

    Signal name Designation Wire colour in cable Not used Line A RS-485 LLS A RS-485 LLS Orange-white CAN Н CAN Н Purple-orange Power Supply and Ignition Key Connect Omnicomm Profi, Profi Wi-Fi terminals as per diagrams without battery disconnect switch:...
  • Page 16 Installation after ground disconnect switch: before ground disconnect switch:...
  • Page 17 Installation Connect Omnicomm Optim terminals as per diagrams without ground disconnect switch: after ground disconnect switch:...
  • Page 18 Installation before ground disconnect switch: Connect Omnicomm Smart terminals as per diagrams without ground disconnect switch: after ground disconnect switch:...

  • Page 19: Terminal

    Installation before ground disconnect switch: Terminal Omnicomm terminal shall be installed in the vehicle cabin or in specially equipped electrics boxes on the vehicle protected from atmospheric precipitation. Drill 4 mounting holes Ø4 mm. For Omnicomm Profi, Profi Wi-Fi terminals:...
  • Page 20 Installation For Omnicomm Optim and Smart terminals:...

  • Page 21: Antennas

    Installation Install the terminal and fix with self-tapping screws. Antennas Choose the installation site of antennas based on the antenna cable length. Antennas should be installed inside the vehicle cabin on a flat surface. Distance from antennas to any metal surface (except for the surface of installation) should be not less than 50 mm.

  • Page 22: Setting Overview

    Setting Overview Omnicomm terminals may be configured in two ways: 1. In the Omnicomm Configurator when the terminal is connected to a PC 2. In the Remote Configuration Server (RCS) – remotely Initial terminal setting shall be carried out in Omnicomm Configurator.
  • Page 23 Setting Overview GSM and SMS communication parameters Roaming connection parameters Roaming parameters In the “RS-485 and RS-232 Interfaces Configuration” section: «CAN-log» «J1708» «NMEA reception» «NMEA transmission» «PP-01» «Camera» «DV-01» «Tachograph VDO» «iQFreeze» «TPMS Pressure Pro» «ALM Weight Indicator» «Carrier Reefer» In the “Auxiliary equipment”...

  • Page 24: Remote Configuration Server (Rcs)

    Remote Configuration Server (RCS) To connect to the configuration server, open the browser and in its address bar enter the address http://config.omnicomm.ru:9911/#en. A window will open: To add terminals: 1. In the “Terminal ID” field enter the terminal identification number 2.

  • Page 25: Wi-Fi Data Transmission

    For Optim and Profi, Profi Wi-Fi choose the SIM card to perform setting: SIM 1 – external SIM card SIM 2 – internal SIM card / SIM chip for Omnicomm Optim or SIM chip for Omnicomm Profi, Profi Wi-Fi For GPRS access point names of other operators, refer to the mobile network operator, whose SIM card is inserted in the terminal.

  • Page 26: Connection To Communication Servers

    When setting up EGTS data transmission, you must use the TID terminal identification. If the settings are not configured, when transmitting data through EGTS protocol ID Omnicomm will be used for terminal identification. In the “Settings of connection to the communication server” sections:...

  • Page 27: Data Collection

    “Port” – enter port to be used by terminal to connect to the communication server: 9977 “Protocol” – select data transmission protocol to the CS. Possible options: Omnicomm or EGTS. Data Collection In the “Settings” tab select the “Connection” section from the list.
  • Page 28 Operation Parameters Setting “Collect all data” – data collection and transmission same as with ignition turned “Collect all except GPS” – collection and transmission of data selected during configuration of the terminal, except for the GPS module data “Collect data at jolting” – monitoring the status of the panic button and accelerometer.

  • Page 29: Data Transmission To The Communication Server

    Operation Parameters Setting “Maximum movement speed, km/h”. Default value – 180 km/h. Possible values: from 5 to 360. The default values allow elimination of drift for most cases and do not require correction. Data Transmission to the Communication Server In the “Settings” tab select the “Connection” section from the list. In the “Parameters of output for connection”...

  • Page 30: Selection Of Ignition Source

    Operation Parameters Setting Select the criterion for the terminal connection to the CS: “Interval of sending data to CS” or “Data package size to be sent to CS”. “Interval of sending data to the CS” – enter the number of minutes, upon expiration of which the terminal must establish connection with the communication server, while being in roaming.

  • Page 31: Selection Of Speed Source

    “Data source” – select the data to process the speed values. Possible options: “GPS”, “CAN bus” or “UI6” (for Omnicomm Profi, Profi Wi-Fi). Connection to universal input No.6 of the Terminal Omnicomm Profi, Profi Wi-Fi is performed depending on the type of speed sensor.

  • Page 32: Driving Safety Control

    Operation Parameters Setting “Data source” – select the signal type. Possible values: «Disabled» «Ignition key» «CAN bus» «RPM input» Connect the tachometer to the Terminals according to the diagram: The place of connection to the tachometer shall be the point in the vehicle electric network, in which the pulse signal frequency is proportional to the engine RPM.
  • Page 33 24 positions as shown in figure: Arrow ► indicates the location of the terminal connector. The “Omnicomm” inscription in the figure corresponds to the top cover of the terminal. Deflection of the terminal from the axes during manual calibration should not be more than 5 degrees.
  • Page 34 Operation Parameters Setting Select monitored parameters: “Event reporting” – enable/disable event sending to Omnicomm Online. “Speed” – vehicle speed control Threshold – enter the maximum permissible speed, upon exceeding which dangerous driving will be registered. Possible values: from 0 to 150 km/h. Default value: 80 km/h.
  • Page 35 Operation Parameters Setting Default value: 15 s. “Acceleration” – acceleration control during vehicle speeding up Threshold – enter the value of acceleration while speeding up, which exceeding will trigger registration of dangerous driving “Lateral acceleration” – acceleration control during vehicle turning Threshold –...
  • Page 36 Operation Parameters Setting controlled output No.1. “Determine accidents” – enable/disable accident registration upon exceeding the set values of monitored parameters. “Speeding up threshold” – value of acceleration while speeding up, which exceeding will trigger registration of accident “Lateral acceleration threshold” – value of acceleration while turning, which exceeding will trigger registration of accident “Braking threshold”...

  • Page 37: Body Tampering Control

    “Sound notification” – enable/disable sound notification if thresholds of monitored parameters are exceeded “Events” – enable/disable event sending to Omnicomm Online “Photo” – enable digital camera photo sending upon load exceeding “SMS” – enable SMS sending upon load exceeding “Total load threshold, tonnes”...

  • Page 38: Gps / Glonass Signal Jamming Detector

    “Collect data at jolting” mode. GPS / GLONASS Signal Jamming Detector For Omnicomm Optim, Profi, Profi Wi-Fi terminals in the “Settings” tab select the “Additional equipment” section from the list.

  • Page 39: Service Functions

    Service Functions GSM jamming detector can be activated when SMS configuration is enabled (see and SMS parameters). “Send SMS upon GSM signals jamming attempts detection” – check the box to send SMS upon registering the GSM network signal jamming. Service Functions Terminal Reboot In the “Service”...

  • Page 40: Data Collection And Transmission Blocking

    In the “Settings” tab select the “Connection” section from the list. In the “Blocking of information collection and transfer” section: To block the terminal data acquisition and transmission in the “Lock” field select “Switced off”: To unlock data acquisition and transmission use Omnicomm Configurator or send...

  • Page 41: Remote Configuration Server Operation Setting

    Remote Configuration Server Operation Setting Set password on terminal settings modification by either of the following ways: When configuring the terminal using Omnicomm Configurator set password on settings modification that is different from the password set by default. Password set by default – empty line...
  • Page 42 “Camera” – use for the digital camera connection “DV-01” – use for the driver display connection “LLS / LLD” – use for connecting fuel level sensors Omnicomm LLS, Omnicomm LLD indicator “Tachograph VDO” (only in Omnicomm Configurator) – use for Continental tachograph connection “Frequency of data transmission to server”...
  • Page 43 Additional Equipment “iQFreeze” (except for Omnicomm Smart) – use for connection of the refrigerator control device “ALM Weight Indicator” – use for connection to the axle load monitoring device “Modbus (Struna +, PMP-201)” – use for connection to the level gauge PMP-201 or the Struna + system “TPMS Pressure Pro”...

  • Page 44: Fuel Level Sensors

    “PMP-201” (except for Smart) – when connecting the level gauge PMP-201 “Disabled” – in case fuel level control is not required. When Omnicomm LLS and Omnicomm LLS-AF fuel level sensors are connected: “Number of connected sensors” – specify the number of sensors connected to the terminal.
  • Page 45 You may connect only one “Struna +” system. The network address, by default, is 80. Connect one Omnicomm LLS fuel level sensor to the Terminal Omnicomm Profi, Profi Wi-Fi according to the diagram: Connect Omnicomm LLS-AF fuel level sensor to the Terminal Omnicomm Profi, Profi...
  • Page 46 Connect several Omnicomm LLS-AF sensors to the terminal one by one, starting with 1 universal input. Omnicomm LLS-AF sensor must be set to output a frequency signal in the range from 30 to 1053 Hz. Connect one Omnicomm LLS fuel level sensor to the terminal Omnicomm Optim and...

  • Page 47: Omnicomm Icon Display

    Additional Equipment Connect one or more Omnicomm LLS fuel level sensors side-by-side via the RS-485 interface. Connect Omnicomm LLS-AF fuel level sensor to the terminals Omnicomm Optim and Smart according to the diagram: When connecting the terminals to the “Struna +” system or the “PMP-201” sensor: “Fuel tank volume, L”...
  • Page 48 Additional Equipment “ICON” – check the box to display data from the terminal on the Omnicomm ICON Display “Network address” – select the display network address. Possible values: from 7 to “Select time zone” – check the box to select the time zone with reference to UTC.
  • Page 49 1000, the last three significant digits and one symbol after the decimal point are displayed. All engine hours are recorded in the terminal and sent to the CS as accrued total. Connect Omnicomm Profi terminal to Omnicomm ICON display according to the diagram:...

  • Page 50: Omnicomm Lld Indicator

    In the “Settings” tab select the “Additional equipment” section from the list. In the “Data transmission to Omnicomm LLD indicator” section “Data source” – select the data source to display the value on the Omnicomm LLD indicator. Possible options: “GPS speed” – displays the vehicle speed “Universal input“...

  • Page 51: Tachograph

    Additional Equipment In the field “Revolutions per minute” enter the value of RPM, in the field “Factor” enter the value of conversion factor to calculate the motor hours value. The conversion factors are determined based on the operating conditions of the vehicle.
  • Page 52 “Coefficient of impulse” – enter the calibration factor converting the number of pulses to the determined physical quantity. “Number of pulses from the input” (in Omnicomm Configurator) – number of pulses coming at the universal input. “Current value of measured parameter” – displays the value at the input with account for the calibration factor.
  • Page 53 Additional Equipment after which the terminal will record activation of the sensor. Default value – 9 V. “Pull-up resistor” – select “Enabled” when working with “open collector”-type sensors or contact sensors. “Input signal inversion” – set “Enabled” for the sensor with open contacts or contacts closing on commission of any action.
  • Page 54 Additional Equipment Sensors with analog output “Minimum measured value” – set the minimum value to be measured by the sensor (in the units of measurement of this value). “Voltage corresponding to the minimum value” – set the value of voltage corresponding to the minimum measured value.

  • Page 55: Driver Identification

    “Current value at universal input” – current measured value. “Equipment name” – enter the monitored parameter name. Driver Identification In the “Settings” tab select the “Identification” section from the list. For Omnicomm Optim, Profi, and Profi Wi-Fi terminals, in “Identification settings” section:...
  • Page 56 0 to 60 seconds. For automatic reading of the card number, connect Omnicomm ICON display to the terminal, switch on the readout mode and apply card. In the “Authorized keys” section press the “Add key / card” button and enter the iButton / card key numbers, which application will enable the second digital output.
  • Page 57 Connect iButton readout device to the Omnicomm Profi, Profi Wi-Fi Terminal according to the diagram: Connect iButton readout device to the Omnicomm Optim Terminal according to the...
  • Page 58 Additional Equipment 2. Perform installation on/under an inclined or horizontal surface of the vehicle cabin front panel, fixing it with screws (self-tapping screws) or glue 3. At the installation site, when using screws, drill holes as shown in figure: 4. Mount the sound emitter on the prepared surface and fix.

  • Page 59: Temperature Sensor

    “Send value of 1-Wire sensor instead of UI” – select the number of the universal input for displaying the temperature values in Omnicomm Online. Connect the temperature sensors according to the diagram: Voice Communication Connect the voice communication set for Omnicomm Profi, Profi Wi-Fi terminal according to the diagram:...
  • Page 60 Additional Equipment 1. At the installation site, drill two holes Ø2.5 mm: 2. Drill a rectangular hole 30×12 using a milling cutter or drilling bit and install a push- to-talk key adapter 3. Fix the push-to-talk key adapter on the surface with self-tapping screws 4.

  • Page 61: Rfid Reader Connection

    Additional Equipment Equipment Omnicomm 3.0 Terminals 65 microphone to the Omnicomm Optim terminal is shown on the diagram: RFID Reader Connection The terminal supports connection of swipe card readout devices via 1-Wire physical interface. The connected readout device must fully simulate the exchange protocol of DS1990A product.
  • Page 62 Additional Equipment Select “Events”: Entering the geofence Leaving the geofence Select “States”: Ignition on Ignition off GPS available No GPS Being in geofence Being outside geofences Exceeding speed threshold set for geofence Exceeding the set speed threshold In the “Output operation mode” section: Number of “closed-open”...

  • Page 63: Geofences Setting

    If the vehicle is outside the geofence and the GPS module data are valid, the output will be enabled, until the moment of entering the geofence or GPS data absence. Connect auxiliary equipment to controlled outputs of Omnicomm Optim terminals according to the diagram:...

  • Page 64: Panic Button And Gsm Call Button

    Additional Equipment “Number of points to confirm being inside/outside the geofence” – specify the number of successively defined vehicle coordinates required to register the vehicle being inside or outside the geofence. Coordinates determination period – 1 sec. Possible values: from 1 to 10. To add a geofence, press the “Import”...
  • Page 65 Additional Equipment Connect the GSM activation response button to Omnicomm Optim, Profi and Profi Wi- Fi terminals according to the diagram: CAN Bus In the “Settings” tab select the “CAN” section from the list:...
  • Page 66 From the list, select the parameters, which value shall be displayed in Omnicomm Online, and check the corresponding boxes in the column “Use”. If you need to add parameters for reading from the CAN bus, which are not on the list, in Omnicomm Configurator press button “Add”.
  • Page 67 Additional Equipment Press the “Save” button. Perform connection to the vehicle CAN bus using wireless CAN reader device (CAN- crocodile). When using wireless CAN reader devices, connect the terminals according to the diagram: Configuring the reception of data on the fuel volume in the tank from the vehicle CAN bus Connect and configure reception of the vehicle equipment operation parameters from CAN J1939 data bus and set the setting of fuel sensor –...
  • Page 68 Specifications Specifications Omnicomm Profi, Omnicomm Optim Omnicomm Smart Profi Wi-Fi Communication Satellite Navigation Systems GLONASS/GPS GLONASS/GPS GLONASS/GPS GPRS data transmission channel GPRS GPRS GPRS Wi-Fi (only for Profi Wi-Fi) Number of SIM cards and SIM 1 SIM-card + 1 2 SIM-card or 1 SIM-...
  • Page 69 Specifications Omnicomm Profi, Omnicomm Optim Omnicomm Smart Profi Wi-Fi Communication Non-volatile memory capacity, 150 000 150 000 150 000 events SD card for photographs and archieve Inputs and outputs Ignition key input Panic button input Connection to universal input RPM sensor input...
  • Page 70 Specifications Omnicomm Profi, Omnicomm Optim Omnicomm Smart Profi Wi-Fi Communication USB interface Voice communication connection Interface 1-wire Built-in accelerometer Design Dimensions, mm 100,5 x 137,0 x 101,0 х 90,0 х 31,5 101,0 х 90,0 х 31,5 38,0 Working temperature range, C –...
  • Page 71 LED and Sound Notification Omnicomm Profi, Omnicomm Optim Omnicomm Smart Profi Wi-Fi Communication Detection of active signal jamming GSM signal jamming Detection of active GSM signal jamming Remote control through GPRS Data output via external indicator SMS notifications LED and Sound Notification...
  • Page 72 LED and Sound Notification Indicator Indication mode Value Permanently lighted Power: main green Ignition: On Power: Main Ignition: Off Operating mode “Collect all data” Flashing red at Power: Main or backup battery (if any) interval 1 time per Ignition: Off two seconds Operating mode: «Sleeping»...
  • Page 73 Permanently lighted Failure in operation (damage) of internal elements, satellite navigation module or GSM module Alternately flashes Failure of exchange with one or more Omnicomm LLS red-green sensors Check Omnicomm LLS settings, communication lines, Omnicomm LLS power supply voltage as per “User Manual Omnicomm LLS 20160, LLS 30160,LLS4, LLS 20230”...
  • Page 74 LED and Sound Notification Number of sound Designation signals One beep The terminal has connected to a Wi-Fi access point that was specified when configuring the terminal Two beeps Terminal has disconnected from Wi-Fi access pointk Three beeps The terminal has finished data transmission over the Wi-Fi network...
  • Page 75 SMS from the Terminal SMS from the Terminal Event Message format Example Panic Panic button. Vehicle name; VID; Panic button. Е777КХ_97; ID336011133; button http://google.com/maps? http://google.com/maps? triggering q=Latitude, Longitude; dd/mm/yyyy; q=55.7889,37.5887; 01/04/19; 09:25. hh:ss. Dangerous Dangerous driving. a=хх.хх g on the Dangerous driving.
  • Page 76 SMS Commands Event Message format Example Universal Sensor. Equipment name. UI. Vehicle Uni 1 sensor. Е777КХ_97; ID336011133; input name; VID; http://google.com/maps? http://google.com/maps? triggering q=Latitude, Longitude; dd/mm/yyyy; q=55.7887,37.5888; 01/04/19; 09:29. hh:ss. Body Body tampering. Vehicle name; VID; Body tampering. Е777КХ_97; tampering http://google.com/maps? ID336011133;...
  • Page 77 SMS Commands Command Designation Command text in SMS Reply to a command in SMS *SETDOUT param# SETDOUT Request for enabling Param=0 Possible parameter values: digital output Param=1 param = OK if the command is forwarded Param=0,1 to execution param = ER if the command is not forwarded to execution *GETIMG# GETIMG param...
  • Page 78 SMS Commands Command Designation Command text in SMS Reply to a command in SMS *GETINFO# INFO DID=deviceID Request for state of HW=hardware_code_version terminal BL=bootloader_version FW=firmware_version REC=number_of_records_in_archive IMEI=GSM_modem_unique_identifier *RESET# RESET param Reset of terminal Possible parameter values: param = OK if the command is forwarded to execution param = ER if the command is not forwarded to execution...
  • Page 79 SMS Commands Command Designation Command text in SMS Reply to a command in SMS *CONNECTSC# CONNECT SC Request for connection of terminal with configurator server *SETAPN apn# SETAPN apn ERR/OK Setting APN apn - APN of the operator *SETAPN2 apn# SETAPN apn ERR/OK Setting APN for second apn - APN of the...
  • Page 80 - enhanced GPS communication (eliminated periodic coordinate discarding at 00-00 UTC) - solved a problem of lack of communication with Profi Wi-Fi terminals, if there is a 0 in IP-address (for example, 192.168.0.1) - rectified freezing of Omnicomm LLS-AF fuel level sensor values when...
  • Page 81 www.omnicomm-world.com...

This manual is also suitable for:

OptimProfi wi-fiSmart
