Installation
3.3
Pole Mounting

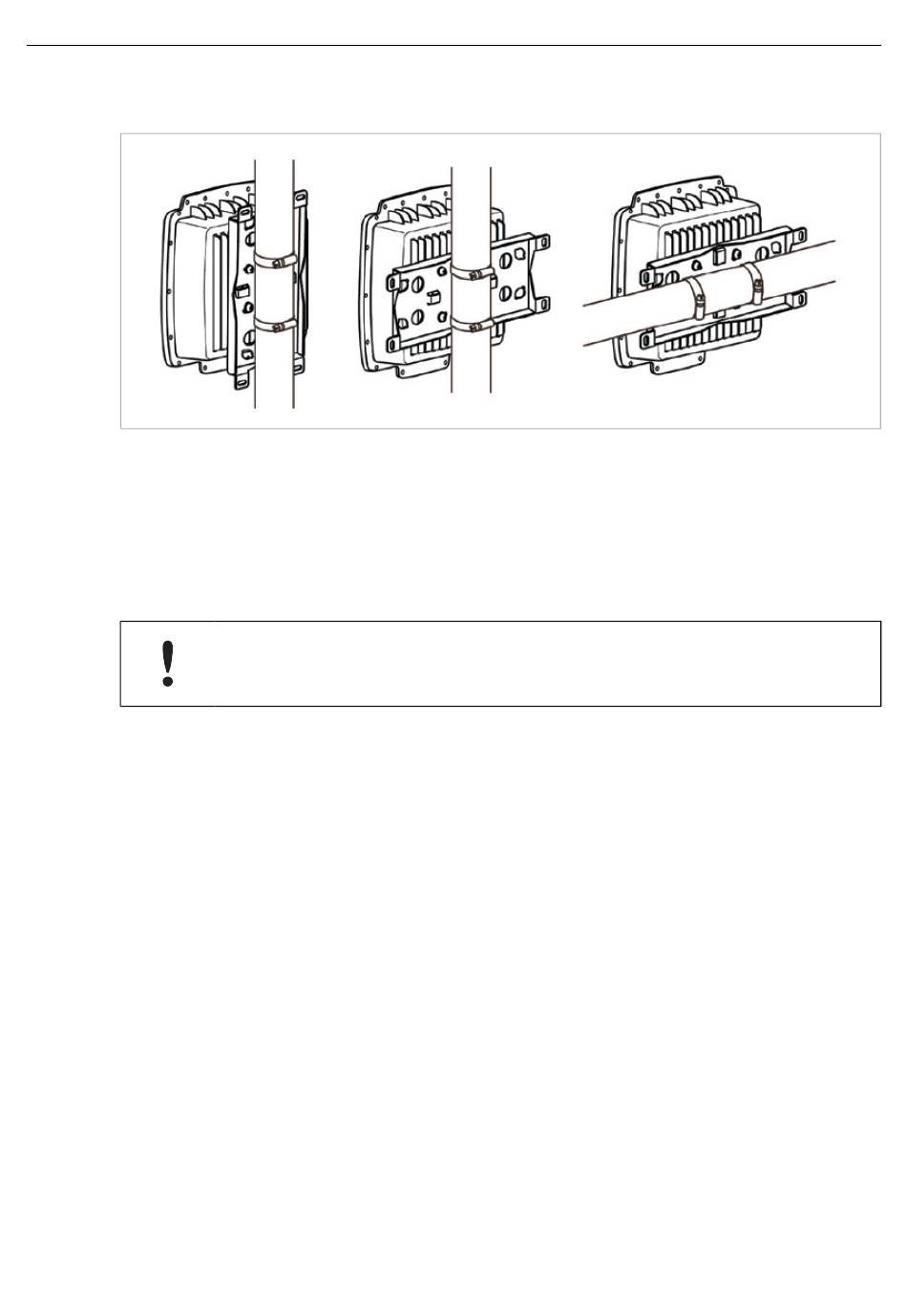

Fig. 4
1.
Attach the mounting plate to the back of the unit using the 4 included
screws. The plate can be attached vertically or horizontally.
2.
Thread the two supplied metal mounting straps through the large slots on
the mounting plate and then put the straps around the pole.
®
Anybus
WLAN Access Point IP67 Startup Guide
Pole mounting
To prevent water intrusion, make sure that the unit is installed with the
connectors on the bottom panel of the unit facing down.
9 (18)
SP2383 1.3 en-US
