Installation
3.2
Wall Mounting

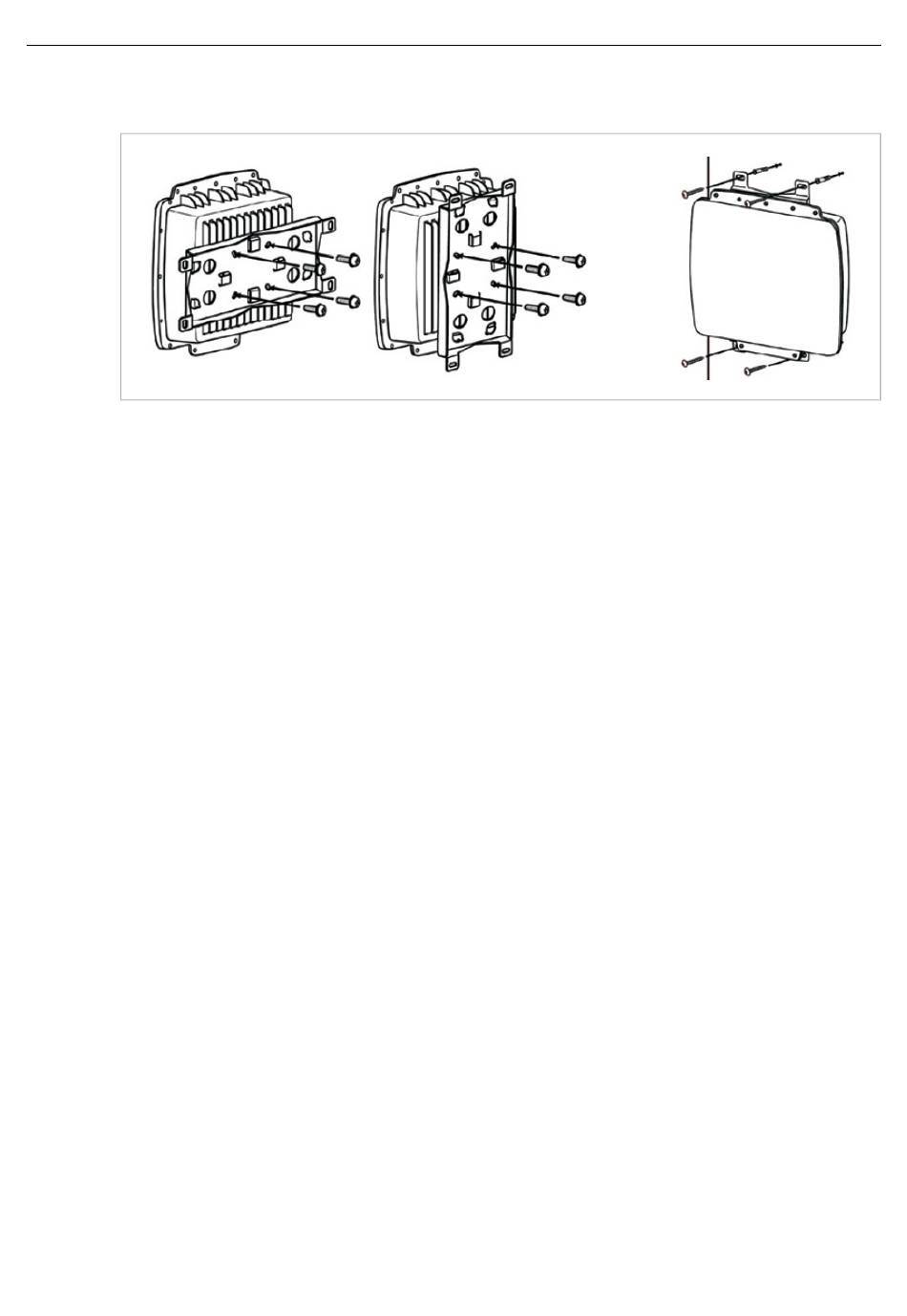

Fig. 3
1.
Attach the mounting plate to the back of the unit using the 4 included
screws. The plate can be attached vertically or horizontally.
2.
Hold the unit upright against the wall and fasten it with 4 screws through
the apertures in the plate.
®
Anybus
WLAN Access Point IP67 Startup Guide
Wall mounting
8 (18)
SP2383 1.3 en-US
