Summary of Contents for Razer RZ04-0267
- Page 1 Date: 14 September 2018 User Manual For Gaming Headset System model number RZ04-0267 consist of Gaming Headset Model RC30-026701 and Wireless USB Transceiver RC30-0267...
-
Page 2: Package Contents / System Requirements
PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS Gaming Headset (System model number RZ04-0267 consist of Gaming Headset Model RC30-026701 and Wireless USB Transceiver RC30-0267) USB wireless transceiver Charging cable 3.5mm combo cable Important Product Information Guide... -
Page 3: Registration / Technical Support
Register your product online at razerid.razer.com/warranty to get real-time information on your product’s warranty status. If you haven’t registered for a Razer ID yet, register now at razerid.razer.com to get a wide range of Razer benefits. Your product’s serial number can be found underneath the ear cushion, as shown here. -
Page 4: Device Layout

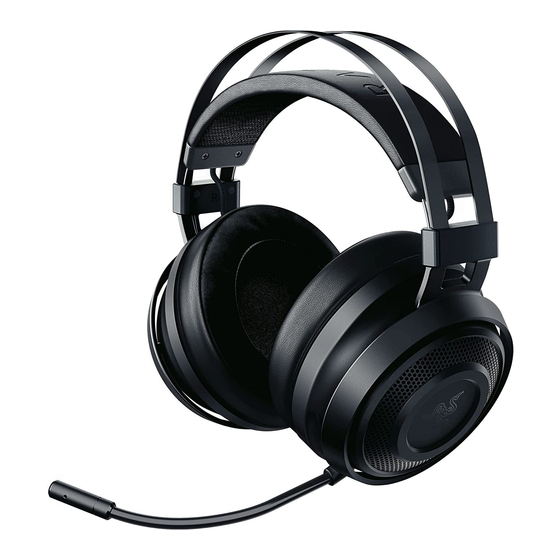

Auto-adjusting headband Status indicator Cooling gel-infused ear cushions Power button 50mm drivers with HyperSense Charging port Technology 3.5mm combo port Razer Chroma backlighting Volume control Mic mute indicator Transceiver storage Retractable mic USB wireless transceiver Mic mute button Charging cable Game/Chat balance 3.5mm combo cable... -
Page 5: Charging Your Headset
For best results, please fully charge your headset before using it for the first time. A depleted unit will fully charge in about 4 hours. UNDERSTANDING THE CHARGING NOTIFICATIONS Your Razer Nari Ultimate will send out notifications depending on its current charging status, as shown here: STATUS INDICATOR... - Page 6 1. Plug the USB wireless transceiver to your PC. 2. Right-click on the sound icon on the system tray, and then select Sounds. 3. On the Playback tab, select Razer Nari Ultimate - Chat from the list, and then set it as the Default Communication Device.
- Page 7 4. On the Playback tab, select Razer Nari Ultimate - Game from the list, and then set it as the Default Device. 5. In the Recording tab, select Razer Nari Ultimate - Chat from the list and click the ‘Set Default’...
-
Page 8: Connecting Your Headset
Note: To return the USB wireless transceiver, push it into the compartment until you hear a click. 2. Plug the USB wireless transceiver to your device and make sure your Razer Nari Ultimate is the default input and output audio device. - Page 9 2. Wait until the status indicator is static blue. NOTIFICATION STATUS Note: Keep your headset within close proximity of the USB wireless Pairing transceiver for a faster and more Blinking stable connection. If your headset fails Connecting to connect, it will automatically power Rapid blinking off after a few minutes.
-
Page 10: Using The Volume Control
USING YOUR RAZER NARI ULTIMATE USING THE VOLUME CONTROL Rotate the volume control to increase or decrease the volume. USING THE GAME/CHAT BALANCE Rotate the game/chat balance to increase the in-game volume and decrease the voice chat volume or vice versa. By default, the notch on the wheel is set to the middle to indicate 50% chat and 50% game volume. - Page 11 USING THE RETRACTABLE MIC Pull the tip of the mic until it is fully extended. Bend the mic until it is parallel to your mouth, then adjust the length as preferred. Make sure the mic diaphragm is in front and the air vent is facing away from your mouth. Press the mic mute button to mute or unmute the mic.
- Page 12 EXTENDING YOUR HEADSET’S LIFESPAN We recommend stretching the headset gently apart before placing them over your head to minimize headband stress. However, please avoid overstretching the headset beyond its technical limits. F O R G A M E R S . B Y G A M E R S . ™...
- Page 13 INSTALLING RAZER SYNAPSE 3 FOR YOUR RAZER NARI ULTIMATE Step 1: Make sure your Razer device is connected to the USB port of your computer. Step 2: Install Razer Synapse 3 when prompted* or download the installer from razer.com/synapse. Step 3: Create your Razer ID or log in using an existing account.
-
Page 14: Lighting Effects
LIGHTING EFFECTS The Lighting tab enables you to customize the look of your Razer device by allowing you to choose from various lighting effects or fully customizing your own. These lighting effects can also be synchronized with other Powered by Razer Chroma devices that support the selected effect. -
Page 15: Safety And Maintenance
SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Nari Ultimate, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com... -
Page 16: Limited Product Warranty
Product. In no event shall Razer’s liability exceed the retail purchase price of the Product. - Page 17 REGULATORY FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement.
- Page 18 REGULATORY F O R G A M E R S . B Y G A M E R S . ™...
- Page 19 Canada Statement This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
