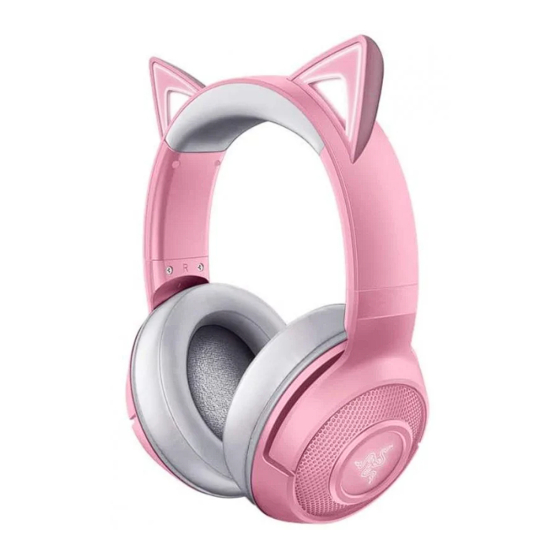

RAZER KRAKEN KITTY V2
MASTER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kraken Kitty V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Razer Kraken Kitty V2

  • Page 1 RAZER KRAKEN KITTY V2 MASTER GUIDE...
  • Page 2 Create your cutest stream persona in killer kitty style with the new Razer Kraken Kitty V2. Stand out and turns heads with unique kitty ears powered by Razer Chroma™ RGB, as you put on a show with stream-reactive lighting and a crystal-clear mic.
  • Page 3: Table Of Contents

    4. TECHNICAL SPECIFICATIONS ......................... 5 5. SETTING UP YOUR RAZER KRAKEN KITTY V2 ..................6 6. USING YOUR HEADSET .......................... 8 7. CONFIGURING YOUR RAZER KRAKEN KITTY V2 VIA RAZER SYNAPSE ..........10 8. SAFETY AND MAINTENANCE ....................... 23 9. LEGALESE ............................. 24 ™...
  • Page 4: What's Inside

    1. WHAT'S INSIDE ▪ Razer Kraken Kitty V2 Stream reactive kitty ears and USB Type A cable connector earcups Powered by Razer Razer™ HyperClear cardioid mic Chroma Volume control wheel Adjustable padded headband Mic mute button Hybrid fabric and leatherette cushions ▪...
  • Page 5: What's Needed

    2. WHAT'S NEEDED PRODUCT REQUIREMENTS ▪ USB Type A port RAZER SYNAPSE / STREAMER COMPANION APP* REQUIREMENTS ▪ Windows® 10 64-bit (or higher) ▪ Internet connection for software installation *Razer Synapse with Chroma Connect module required. 3. LET'S GET YOU COVERED Register your product and score exclusive benefits razerid.razer.com/warranty...
  • Page 6: Technical Specifications

    4. TECHNICAL SPECIFICATIONS HEADPHONES ▪ Ears: Fixed Kitty Ears ▪ RGB: Razer Chroma™ RGB (Ear and Earcups) ▪ Frequency response: 20 Hz – 20 kHz ▪ Impedance: 32 Ohms ▪ Sensitivity: 92.5 dB SPL/mW@1KHz ▪ Drivers: Customized Dynamic 40mm Driver ▪...
  • Page 7: Setting Up Your Razer Kraken Kitty V2

    5. SETTING UP YOUR RAZER KRAKEN KITTY V2 1. Connect your Razer headset to any of the USB ports on your PC. Type A 2. On your device (if applicable), set the Razer Kraken Kitty V2 as the default Input and Output device. Razer Kraken...
  • Page 8 Add a new level of audience interaction by personalizing which colors and effects will react to your viewers' emotes, alerts, shout-outs, and more. Install the Razer Streamer Companion app via Razer Synapse or download it directly from razer.com/ streamer-companion-app ™...
  • Page 9: Using Your Headset

    Rotate the Volume control wheel to increase or decrease the volume. RAZER HYPERCLEAR CARDIOID MIC Bend the Razer HyperClear cardioid mic until it’s parallel to your mouth. ™ F O R G A M E R S . B Y G A M E R S .
  • Page 10 Mic diaphragm Air vent Make sure the mic diaphragm is in front, and the air vent is facing away from your mouth. The recommended mic-to-mouth distance for optimal sound capture is 1.5 cm to 3 cm (0.59 to 1.18 in). Press the mic mute button to mute or unmute the microphone.
  • Page 11: Configuring Your Razer Kraken Kitty V2 Via Razer Synapse

    SYNAPSE TAB The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab. Dashboard The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.
  • Page 12 Modules The Modules subtab displays all installed and available modules for installation. ™ F O R G A M E R S . B Y G A M E R S .
  • Page 13 Global Shortcuts Bind operations or Razer Synapse functions to custom key-combinations from any Razer Synapse- enabled device inputs, which apply across all device profiles. Learn more about Profiles Only Razer Synapse-enabled device inputs will be recognized. ™ F O R G A M E R S . B Y G A M E R S .
  • Page 14 AUDIO TAB The Audio tab is the main tab for your Razer Kraken Kitty V2. From here, you can customize your device's settings to unleash its full potential. Changes made under this tab are automatically saved to your system and cloud storage.
  • Page 15 Activate the 7.1 Surround Sound* Experience accurate positional sound specifically designed for games, movies, and music. 1. Download the 7.1 Surround Sound software from razer.com/7.1-surround-sound. 2. Register your product at razerid.razer.com/products to get your activation code sent to your email.
  • Page 16 The Mic subtab enables you to change all outgoing mic audio settings. Microphone Adjust the microphone input for clearer mic audio, or mute the microphone using the slider. Mic Monitoring (Sidetone) Enable this setting to monitor the microphone's raw audio input through the headset with an additional option to increase or decrease the audio monitoring volume.
  • Page 17 Switch Off Lighting This power-saving tool allows you to disable your device's lighting in response to your system's display turning off and/or automatically power down when your Razer Kraken Kitty V2 has been idle for a set time. Quick Effects...
  • Page 18 Only devices that support the selected lighting effect will synchronize. Advanced Effects The Advanced Effects option allows you to choose a Chroma Effect you want to use on your Razer Chroma-enabled peripheral. To start making your own Chroma Effect, press the Chroma Studio button ( ™...
  • Page 19 Stream-Reactive lighting Allow your headset's lighting to change dynamically based on integrated actions for different streaming services. The Chroma Connect module and the Streamer Companion app are required for this feature. Learn more about the Streamer Companion app ™ F O R G A M E R S . B Y G A M E R S .
  • Page 20 PROFILES TAB The Profiles tab is a convenient way to manage all your profiles and link them to your games and applications. Devices View which games are linked to each device's profiles or which Chroma Effect is linked to specific games using the Devices subtab.
  • Page 21 Razer device. To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with.
  • Page 22 ) button on Razer Synapse, enables you to configure the startup behavior and display language of Razer Synapse, control the recommendations you see on the Dashboard, check the firmware version and master guide of each Razer device, or perform a factory reset on any connected Razer device.
  • Page 23 Reset tab The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse's new features on its next launch. All profiles stored on the selected device's on-board memory will be erased when you reset a Razer device.
  • Page 24: Safety And Maintenance

    8. SAFETY AND MAINTENANCE SAFETY GUIDELINES To achieve maximum safety while using your Razer Kraken Kitty V2, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com...
  • Page 25: Legalese

    Product. In no event shall Razer's liability exceed the retail purchase price of the Product.

This manual is also suitable for:

Rz04-04730200-r3m1Rz04-04730100-r3m1
