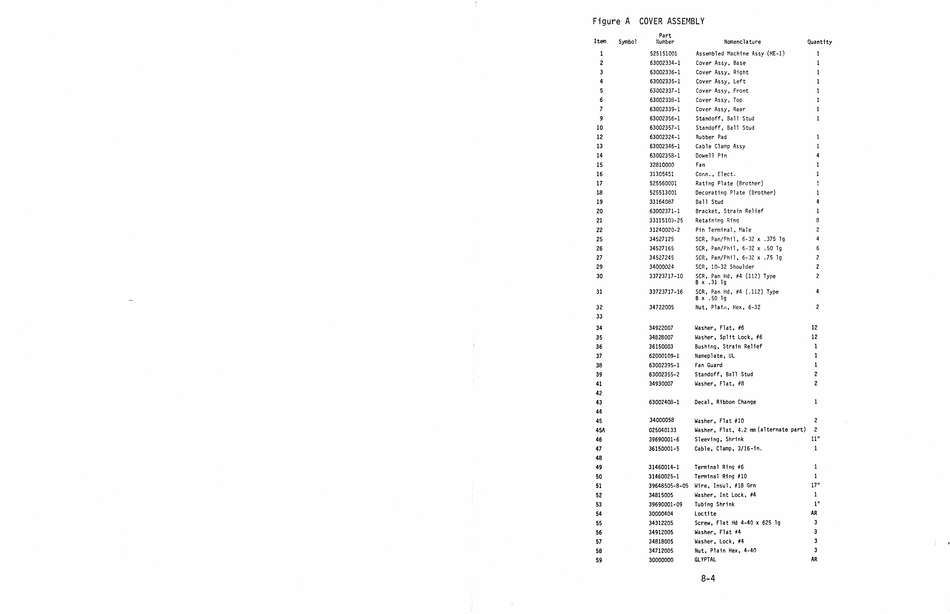

Centronics 101AL Technical Manual page 174

Figure A COVER ASSEMBLY
Item
31
32
33
34
35
36
37
38
39
41
42
43
44
45
45A
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Symbol
Part
Number
525151001
63002334-1
63002336-1
63002335-1
63002337-1
63002338-1
63002339-1
63002356-1
63002357-1
63002324-1
63002346-1
63002358-1
32810000
31305451
525560001
525513001
33164087
63002371-1
33115103-25
31240020-2
34527125
34527165
34527245
34000024
337 23717-10
33723717-16
34722005
34922007
34828007
36150003
62000109-1
63002395-1
63002355-2
34930007
63002408-1
34000058
025040133
39690001-6
36150001-5
31460014-1
31460025-1
39648505-8-05
34815005
39690001-09
30000404
34312205
34912005
34818005
34712005
30000000
Nomenclature
Assembled Machine Assy (HE-1)
Cover Assy, Base
Cover Assy, Right
Cover Assy, Left
Cover Assy, Front
Cover Assy, Top
Cover Assy, Rear
Standoff, Bal] Stud
Standoff, Ball Stud
Rubber Pad
Cable Clamp Assy
Dowell Pin
Fan
Conn., Elect.
Rating Plate (Brother)
Decorating Plate (Brother)
Ball Stud
Bracket, Strain Relief
Retaining Ring
Pin Terminal, Male
SCR, Pan/Phil, 6-32 x .375 Ig
SCR, Pan/Phil, 6-32 x .50 1g
SCR, Pan/Phil, 6-32 x .75 1g
SCR, 10-32 Shoulder
SCR, Pan Hd, #4 (112) Type
B x .31 lg
SCR, Pan Hd, #4 (.112) Type
Bx .50 1g
Nut, Plain, Hex, 6-32
Washer, Flat, #6
Washer, Split Lock, #6
Bushing, Strain Relief
Nameplate, UL
Fan Guard
Standoff, Ball Stud
Washer, Flat, #8
Decal, Ribbon Change
Washer, Flat #10
Washer, Flat, 4.2 mm (alternate part)
Sleeving, Shrink
Cable, Clamp, 3/16-in.
Terminal Ring #6
Terminal Ring #10
Wire, Insul, #18 Grn
Washer, Int Lock, #4
Tubing Shrink
Loctite
Screw, Flat Hd 4-40 x 625 lg
Washer, Flat #4
Washer, Lock, #4
Nut, Plain Hex, 4-40
GLYPTAL
8-4
Quantity
12
12
2
