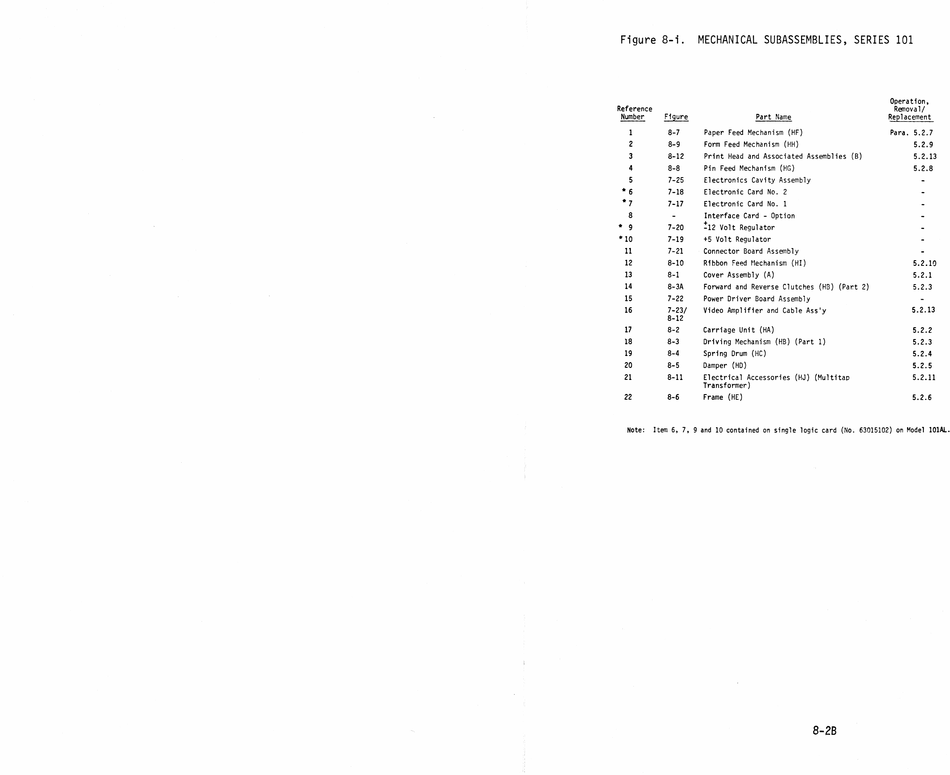

MECHANICAL SUBASSEMBLIES, SERIES 101
Operation,
Removal/
Part Name Replacement
Paper Feed Mechanism (HF) Para. 5.2.7
Form Feed Mechanism (HH) 5.2.9
Print Head and Associated Assemblies (B) §.2.13
Pin Feed Mechanism (HG) 5.2.8
Electronics Cavity Assembly -
Electronic Card No. 2 -
Electronic Card No. 1 -
Interface Card - Option -
"12 Volt Regulator -
+5 Volt Regulator -
- Connector Board Assembly -
Ribbon Feed Mechanism (HI) §.2.19
Cover Assembly (A) §.2.1
Forward and Reverse Clutches (HB) (Part 2) 5.2.3
Power Driver Board Assembly
Video Amplifier and Cable Ass'y 5.2.13
Carriage Unit (HA)
Driving Mechanism (HB) (Part 1)
Spring Drum (HC)
Damper (HD)
Electrical Accessories (HJ) (Multitap 11
Transformer)
Frame (HE) 5.2.6
Item 6, 7, 9 and 10 contained on single logic card (No. 63015102) on Model 101AL.
