Centronics 101AL Technical Manual page 162

Item Symbol
Cl
C2
R1
MD1
FS
F4
Part
Number
63015106-1
63015112-1
63015113-1
63015107-1
63015115-1
63015104-1
63015125
22558001
22159000
43471055
38109622
31350000
39030004
39030012
30470000
36150004
36000000-3
34517087
34517107
34527207
34517287
34527127
34815007
34825007
36600006

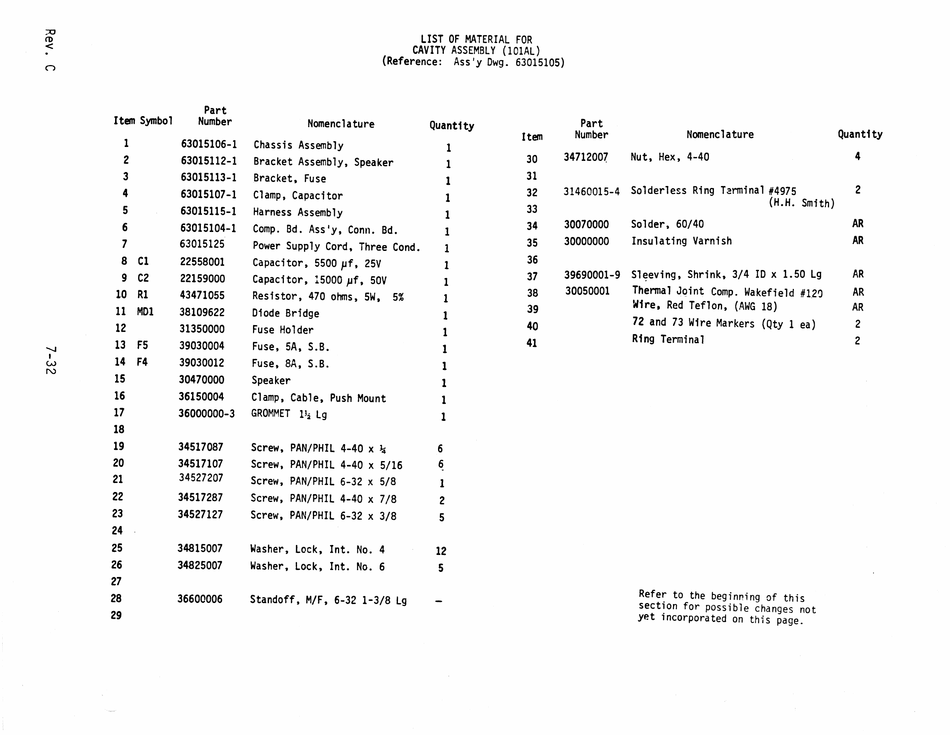

LIST OF MATERIAL FOR
CAVITY ASSEMBLY (101AL)
(Reference:
Nomenclature
Chassis Assembly
Bracket Assembly, Speaker
Bracket, Fuse
Clamp, Capacitor
Harness Assembly
Comp. Bd. Ass'y, Conn. Bd.
Power Supply Cord, Three Cond.
Capacitor, 5500 pf, 25V
Capacitor, 15000 uf, 50V
Resistor, 470 ohms, 5W, 5%
Diode Bridge
Fuse Holder
Fuse, 5A, S.B.
Fuse, 8A, S.B.
Speaker
Clamp, Cable, Push Mount
GROMMET 13; Lg
Screw, PAN/PHIL 4-40 x &
Screw, PAN/PHIL 4-40 x 5/16
Screw, PAN/PHIL 6-32 x 5/8
Screw, PAN/PHIL 4-40 x 7/8
Screw, PAN/PHIL 6-32 x 3/8
Washer, Lock, Int. No. 4
Washer, Lock, Int. No. 6
Standoff, M/F, 6-32 1-3/8 Lg
Quantity
Ass'y Dwg. 63015105)
Item
30
31
32
33
34
35
36
37
38
39
40
41
Part
Number
34712007
31460015-4
30070000
30000000
39690001-9
30050001
Nomenclature Quantity
Nut, Hex, 4-40 | 4
Solderless Ring Terminal #4975 2
(H.H. Smith)
Solder, 60/40 AR
Insulating Varnish AR
Sleeving, Shrink, 3/4 ID x 1.50 Lg AR
Thermal Joint Comp. Wakefield #129 AR
