Introduction
Follow these instructions when installing, operating, or servicing the
product.

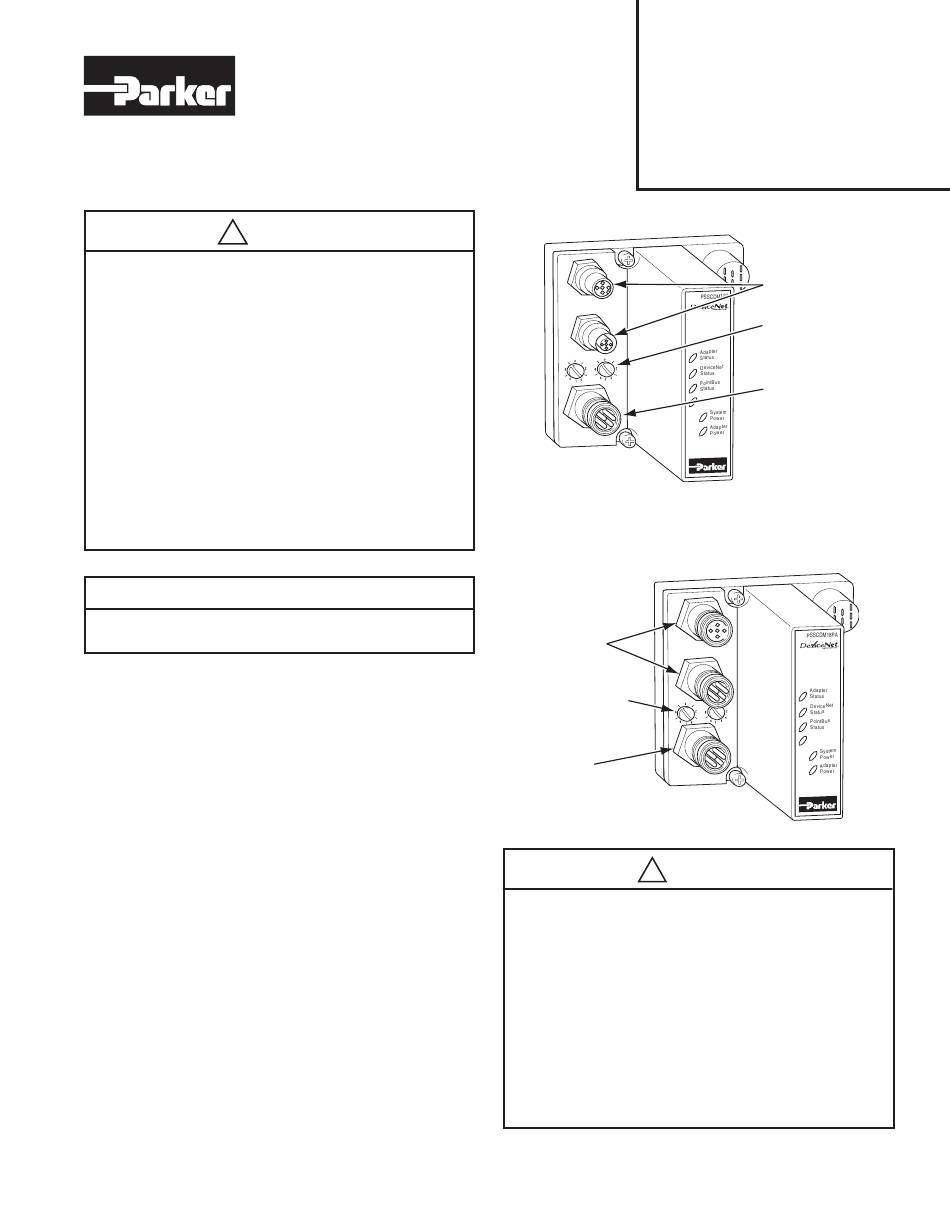

H Series Fieldbus DeviceNet Adapters,
Series A
(PSSCDM12A, PSSCDM18PA)
The sealed IP67 housing of these adapters requires no enclosure.
(Note that environmental requirements other than IP67 may require
an additional appropriate housing.)
sealed Micro (M12) or Mini (7/8") styles. The DeviceNet adapters
are shown below.
H Series Fieldbus DeviceNet Adapters User
Manual
The H Series Fieldbus DeviceNet Adapters User Manual PSS-
UM001A-EN-P is available online at www.parker.com/pneu/
hseriesfieldbus
Pneumatic Division
Richland, Michigan 49083
DeviceNet connectors are
Installation & Service Instructions
E101P
H Series Fieldbus DeviceNet Adapters,
Series A (PSSCDM12A, PSSCDM18PA)
ISSUED: February, 2016
Supersedes: December, 2006
Doc.# E101P, EN# 160064, Rev. D
PSSCDM12A
Devi ceNe t Out
Devi ceNe t In
X1
X10
PWR
Mini 7/8"
DNe t
Connector
Out
DNe t
In
Node Address
Switches
X10
Mini 7/8"
PWR
Auxiliary
Power
Connector
!
WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE
PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED
ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY
DAMAGE.
This document and other information from Parker Hannifin Corporation,
its subsidiaries and authorized distributors provide product and/or system
options for further investigation by users having technical expertise. It
is important that you analyze all aspects of your application, including
consequences of any failure and review the information concerning the
product or systems in the current product catalog. Due to the variety of
operating conditions and applications for these products or systems, the
user, through its own analysis and testing, is solely responsible for making
the final selection of the products and systems and assuring that all
performance, safety and warning requirements of the application are met.
The products described herein, including without limitation, product
features, specifications, designs, availability and pricing, are subject to
change by Parker Hannifin Corporation and its subsidiaries at any time
without notice.
EXTRA COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FOR INCLUSION
IN EQUIPMENT / MAINTENANCE MANUALS THAT UTILIZE THESE PRODUCTS.
CONTACT YOUR LOCAL REPRESENTATIVE.
M12
Connector
Node Address
Switches
Mini 7/8"
Auxiliary
Power
Connector
PSSCDM18PA
X1
