Instructions for the hand-held micro terminal of the fan
motor control system, TBLZ-2-75
SILVER C
1. General
The hand-held micro terminal is used for setting the motor
parameters of the SILVER C.
2. Installation
The hand-held micro terminal can be hung in the wall

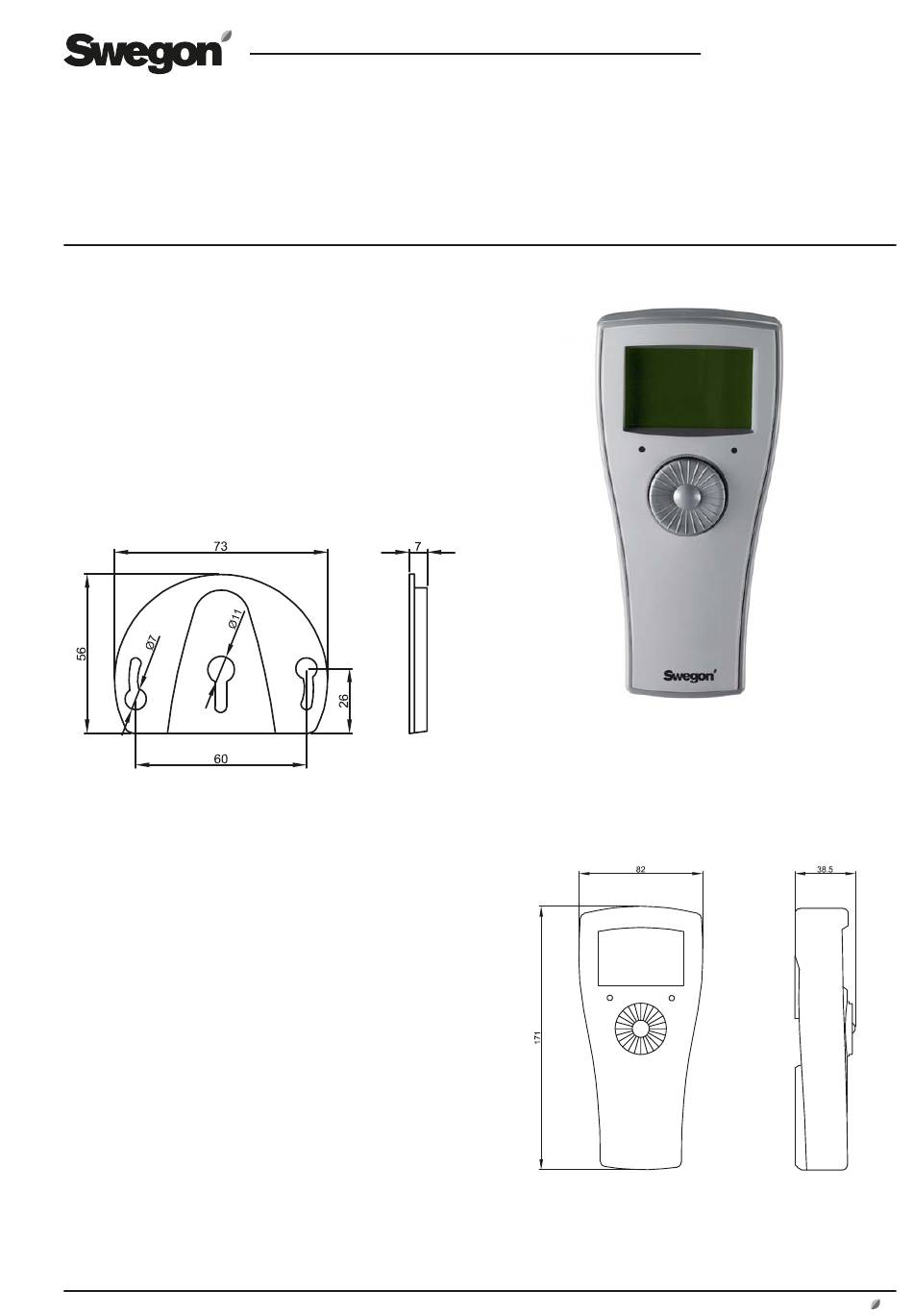

mounting supplied, See illustration below. Mount the wall
mounting on a flat surface.
To lift the hand-held micro terminal out of the wall
mounting, slide it upward and then draw it out.
3. Technical data
Supply voltage
From the motor control system's
wiring terminal
Modbus RTU
2 x RJ12/6/6-pole RS485
Enclosure class
IP21
Humidity
10 – 95 % - non-condensing
Ambient temperature
-30.. +50 °C (Storage)
0.. +40 °C (in operation)
Dimensions
171 x 82 x 38.5 mm
Weight
150 g
We reserve the right to alter specifications.
GB.TBLZ275.160517
www.swegon.com
1
