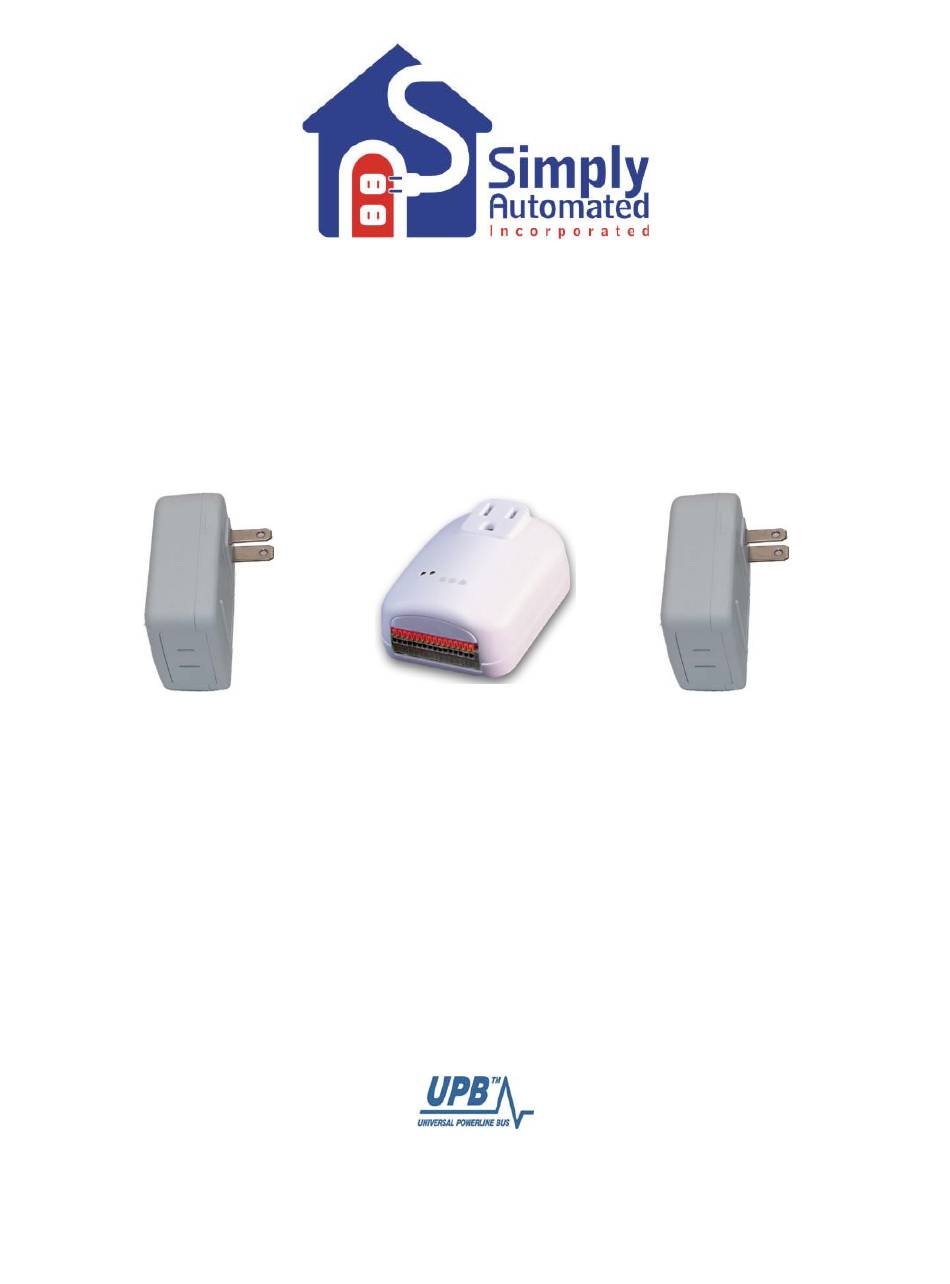

Page 1: Getting Started

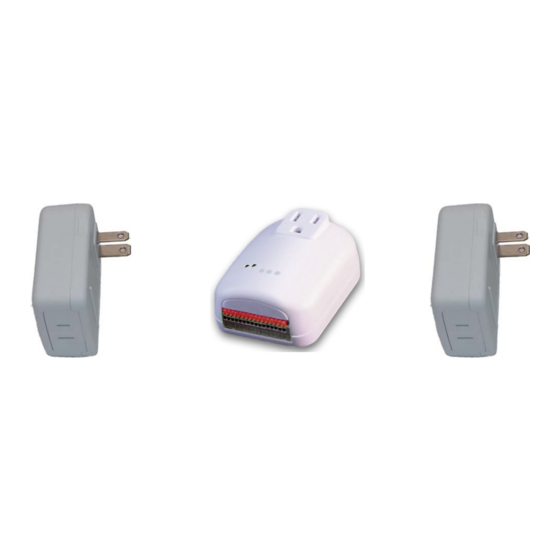

Lamp Module Starter Kit Model DKIT-03SP Getting Started Simply Automated Pre-Configured SimplySmart Series Utilizes SimplySmart technology to make installation a breeze. No computer programming required! Simple-n-easy, ready to use lighting control. - Page 2 10. Do not cover the product with any material when in use. SAVE THESE INSTRUCTIONS. Security Panel Lamp Starter Kit Easily Connect Simply Automated Lighting to Any Alarm Panel with Low Voltage or Contact Output Capability. (PN: DKIT-03SP) includes 2 Lamp Modules and 1 I/O Module with 3 inputs/2 outputs.
- Page 3 Volt ‘off’ or 4-5 Volt ‘on’ trigger) from security panel connect to input terminals 14/15, or contact closure wires (provide open – ‘off’ or closed – ‘on’ trigger) connect to input terminals 15/16 of the I/O Module. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 4 If the lamp module still does not turn on/off, see Section 5, Phase Coupler. Section 3: Adding Additional Dimmers and Lamp Modules Simply Automated Pre-Configured SimplySmart Series offers simple-n-easy expansion capability. Add up to two additional dimmers or lamp modules to the Security Panel Lamp Module Starter Kit.
- Page 5 DKIT-03 Lamp Module Starter Kit Section 4: Adding Lighting Control and Automation You can have even more lighting power with Simply Automated’s pre-configured lighting control kits and accessories. Fully compatible with the I/O Module and your security panel out of the box! Each accessory dimmer or lamp module added will automatically blink on/off when input 2 of the I/O Module is triggered by the security panel, will go on/off when input 3 is triggered.
- Page 6 Plug-In Inverting Phase Coupler, fits a standard (NEMA 10-30) 220VAC clothes dryer outlet ZPCI-W Wire-in Inverting Phase Coupler ZPCI-B Breaker Panel Inverting Phase Coupler Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com or 800-630-9234 452-0003-1001 Rev. B Revised: July 7, 2009...
- Page 7 Getting Started DKIT-03 Lamp Module Starter Kit Section 7: Simply Automated Custom Expansion Series Powerful Custom Expansion Capability using your PC, Computer Interface Module (PN: UMC- USB) and UPStart software – up to 250 devices! Devices include single rocker dimmers, deluxe dimmers with different faceplates (up to 8 buttons), lamp or appliance modules, tabletop pedestal with 8 buttons, wall receptacle, fixture relay, fixture dimmer or scheduler-timer.
