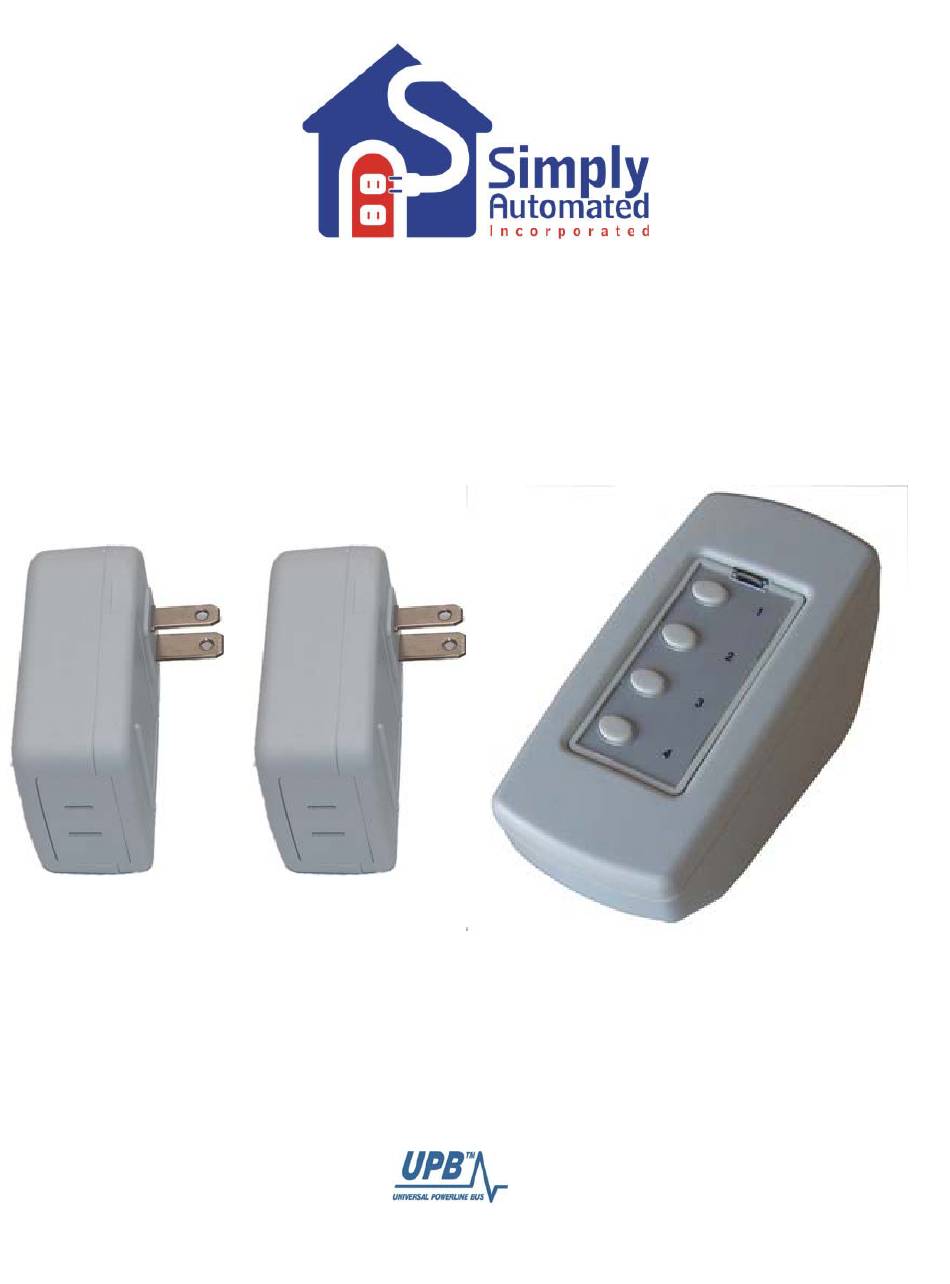

- Page 1 Getting Started Lamp Starter Kit Model DKIT-02 Simply Automated Pre-Configured SimplySmart Series Utilizes SimplySmart technology to make installation a breeze. No computer programming required! Simple-n-easy, ready to use lighting control.
-
Page 2: Important Safety Instructions
Getting Started DKIT-02 Lamp Starter Kit Simply Automated Pre-Configured SimplySmart Series Utilizes SimplySmart technology to make installation a breeze. No computer programming required! Simple-n-easy, ready to use lighting control. IMPORTANT SAFETY INSTRUCTIONS When using electrical products, basic safety precautions should always be followed, including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS. - Page 3 If tapping button 1 seven times does not change the stored dimming level, repeat the two steps outlined above. Tapping should be done quickly ensuring contact is made from the button to the base sensor. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 4 Edit Button 4 so each Lamp Module dims to a different level. You can repeat the process outlined above for button 4. Button 4 is programmed from the factory to turn off both lamps. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 5 To exit the program mode, quickly tap the program switch two times. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 6 ON/OFF all dimmers and modules you programmed to the dimming levels you selected. Press (tap) button 1 one time to turn ON the dimmers, press (quickly tap) two times to turn OFF dimmers. You have created a new scene! Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 7 Go to the Tabletop Controller, press button 3 one time to activate the ‘All ON’ scene. Any modules or dimmers configured for this scene button should be ON. If the lamp light is not lit, turn the lamp’s ON/OFF switch ON. Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com...
- Page 8 All the pre-configured kits and accessories can be edited and added to scenes as previously described – only limitation being not more than one of each model number or kit number per installation. One touch button convenience to turn ON/OFF up to ten or more Simply Automated devices – custom scenes you create!
-
Page 9: Section 5: In Case Of A Problem
Plug-In Inverting Phase Coupler, fits a standard (NEMA 10-50) 240VAC / 50Amp clothes dryer type outlet ZPCI-W Wire-in Inverting Phase Coupler ZPCI-B Breaker Panel Inverting Phase Coupler Simply Automated, Incorporated 6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA Technical Support: www.simply-automated.com or 800-630-9234 452-0002-1001 Rev. D Revised: September 13, 2011... - Page 10 Network ID #: The default Network ID # setting for the Pre-Configured Series is 250. This information is needed when using the Scheduler-Timer. Section 6: Simply Automated Custom Expansion Series Powerful Custom Expansion Capability – up to 250 devices – using your PC and UPStart software! Devices include single rocker dimmers, deluxe dimmers with different faceplates (up to 8 buttons), lamp or appliance modules, tabletop pedestal with 4 or 8 buttons, wall receptacle, fixture relay, fixture dimmer or scheduler-timer.
