Simply Automated UMI Manual

Input/Output Module

FUNCTION

The Input/Output Module, model UMI, can be used to control UPB
devices using a low-voltage trigger input (e.g., a contact closure, voltage,
current, doorbell, telephone ring, etc.), and to activate low-voltage outputs
based on UPB commands. The module accepts up to 3 inputs and 2
outputs. For safety reasons, you should not connect voltages higher than
30Vrms/DC to the input/output terminals, because doing so can present a
shock hazard.

INSTALLATION

The Input/Output Module is designed for indoor use with devices that plug
into a power outlet. To install the UMI module:
1. Connect wires from the item(s) to be monitored/controlled to the
terminal block located on the bottom of the module. See reverse
side for examples of applications and proper wiring diagrams. To
make connections, use a small tool to depress the orange release
lever above the wire hole until the wire can be inserted or removed.

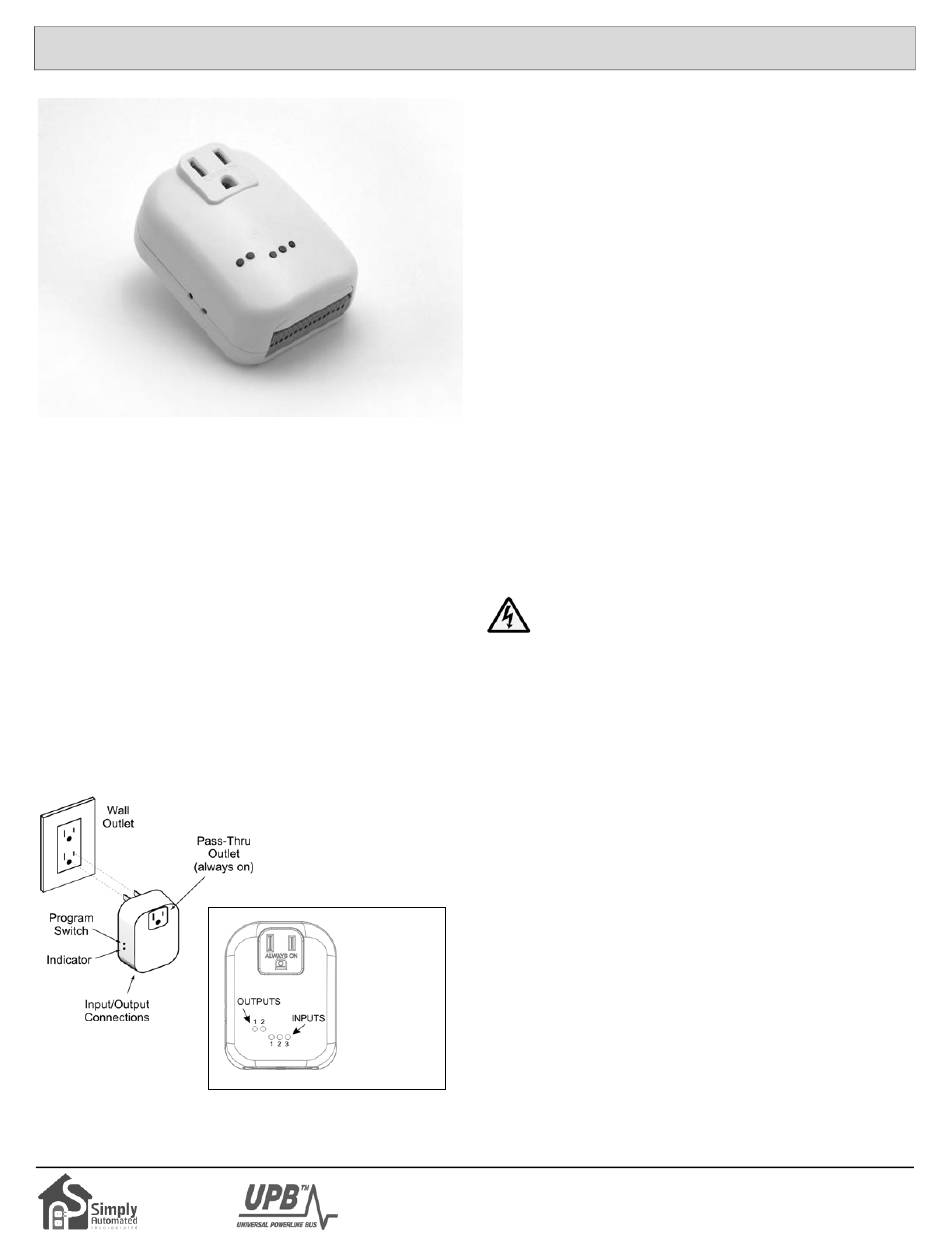

2. Locate a wall outlet near the wiring to be connected. Plug the UMI
module into the wall outlet (see illustration below).
3. If desired, another device can be plugged into the socket on the
front of the module, which is always powered.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical products, basic safety precautions should always
be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If product comes into contact with water or
other liquid, unplug immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
5. Do not use this product for other than its intended use.
6. Do not connect multiple lamps or appliances that, when combined,
exceed the maximum load ratings of the product.
7. To avoid risk of fire, burns, personal injury and electric shock, install
this product out of reach of small children.
8. Do not cover the product with any material when in use.
9. This product uses polarized plugs and sockets (one blade is wider
than the other) to reduce the risk of electric shock. These plugs and
sockets fit only one way. If they do not fit, consult a technician.
Do not use with an extension cord unless plugs can be fully inserted.
Do not alter plugs.
10. SAVE THESE INSTRUCTIONS.

CONFIGURATION

1. To configure the UMI and assign it to one or more controllers, please
refer to instructions for the controller.
2. When configuring a UPB system, it may be necessary to place the
UMI in SETUP mode. To do this, press the Program Switch (see
illustration) five times rapidly using a non-metallic toothpick. The
indicator will continuously blink GREEN when the unit is in SETUP
mode. To exit SETUP mode, press the Program Switch once or wait
five minutes.

OPERATION

Inputs applied to the UMI module can be set to activate or deactivate
other UPB devices or scenes based on either the presence or absence of
the input, or both. UPStart, UPB configuration software, allows the user
to select an input to operate as normally open (N.O.), or normally closed
(N.C.) or customize the application. Open refers to the absence of input
signal or contact closure. Closed refers to the presence of input signal
above the threshold or a contact closure. When the input is applied, the
corresponding INPUT indicator will glow GREEN.
Outputs operate according to commands sent by a controller or UPB
device. When the output is ON, the corresponding OUTPUT indicator will
glow GREEN. The output relay can be configured to close, open or
provide momentary closure upon receiving a UPB Link. Note that outputs
can only be activated via UPB commands, and not via inputs within the
same module. The UMI cannot control an output with an input on the
same module; the UMI cannot "hear" itself when transmitting UPB.

UPB FACTORY DEFAULT SETTINGS

To restore the following default settings, place the UMI in SETUP mode
and then press the Program Switch ten times. The indicator will flash
RED. Press the switch twice to exit this mode.
Input/Output
Network Name "Network 1"
LED Indicators
Room Name
Device Name
Unit ID
Network ID
Network Password
CAUTION: Do not insert metal objects into the module while
it is connected to power.
"New Room Name"
"New CM01"
40
255
1234
