T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS

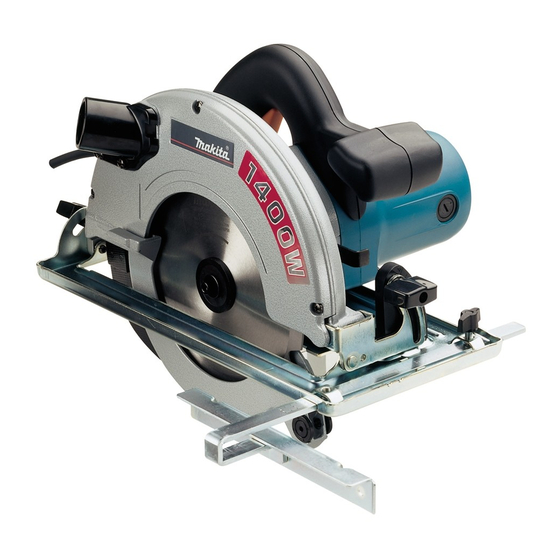

Model 5705R has been developed from Model 5703R as the best-
graded machine for professional's hard use. (mainly for European
countries) ; features anti-burn powerful 1,400W motor and perfect
constructions against grease leakage while having the benefits of
Model 5703R
Model 5705RK comes with Plastic Carrying Case.
Specifications
Voltage (V) Current (A) Cycle (Hz)
110
13
220
6.7
230
6.4
240
6.1
No load speed : rpm.= min.
Diameter : mm (")
Size of blade
Arbor : mm (")
at 90°
Max.cutting
capacities
at 45°
: mm (")
Lock off button
Protection from electric shock
Net weight : Kg (lbs.)
Cord length : m (ft)
Standard equipment
* Tipped Saw Blade 190mm-12T.............................................................................. 1 pc.
* Rip fence (Guide rule)............................................................................................ 1 pc.
* Hex wrench............................................................................................................. 1 pc.
* Joint set (for connecting to Makita vacuum cleaners)............................................ 1 set
< Note > The standard equipment for the tool shown may differ from country to country.
Optional accessories
* Assorted tipped saw blades,
* Inner flange 40 (for blades of arbor diameter 20mm [3/4"] ),
* Joint set (for connecting to Makita vacuum cleaners),
* Guide rail and Guide rail adapter (for accurate cutting of long work pieces)
5705R, 5705RK
Circular Saw 190mm (7-1/2")
Continuous Rating (W)
Input
50/60
1,400
50/60
1,400
50/60
1,400
50/60
1,400
-1
4,800
190 (7-1/2")
30 (1-3/16")
66 (2-5/8")
46 (1-13/16")
Yes
by double insulation
5.2 (11.5)
2.5 (8.2)
W
Max. Output(W)
Output
1,750
600
2,200
600
2,200
600
600
2,200
PRODUCT
P 1 / 5
L
Dimensions : mm ( " )
Length (L)
356mm (14")
Width (W)
253mm (10")
Height (H)
250mm (9-7/8")
H
Advertisement
Related Manuals for Makita 5705R
Summary of Contents for Makita 5705R
- Page 1 Description Circular Saw 190mm (7-1/2") ONCEPTION AND MAIN APPLICATIONS Model 5705R has been developed from Model 5703R as the best- graded machine for professional's hard use. (mainly for European countries) ; features anti-burn powerful 1,400W motor and perfect constructions against grease leakage while having the benefits of Model 5703R Model 5705RK comes with Plastic Carrying Case.
- Page 2 First of all, detach the saw blade for safety repair. < 1 > Lubrication Apply 15 g of MAKITA grease K No.1 in gear housing < 2 > Separating base from the motor section ( 1 ) After pulling base down to the minimum cutting depth, disassemble blade case cover by taking off 3 pcs. of tapping screws CT 4x20 as illustrated in Fig.1 for easy disassembling in the next process.
- Page 3 P 3 / 5 epair ( 4 ) Further pull the base down, and pull out riving knife holder together with riving knife along the flat surface of the bearing box as illustrated in Fig. 3. And then, separate base from the motor section after taking off pin 10 which is joining base and motor section. Riving knife holder <...
- Page 4 P 4 / 5 epair ( 2 ) Disassembling and assembling bearing box Flat washer 22 O ring 44 Bearing box can be disassembled as illustrated in Fig. 5. < Note > Do not forget to mount flat washer 22, when assembling. Bearing box Ball bearing Bearing retainer 19-34...
-
Page 5: Circuit Diagram
P 5 / 5 ircuit diagram Switch Field Noise suppressor Power supply cord iring diagram Noise suppressor Fix lead wires of power supply cord with lead holder.
