- Page 1 Installation- and Operating Instructions Underfloor operator TURN 310 UF...
-
Page 2: Maintenance

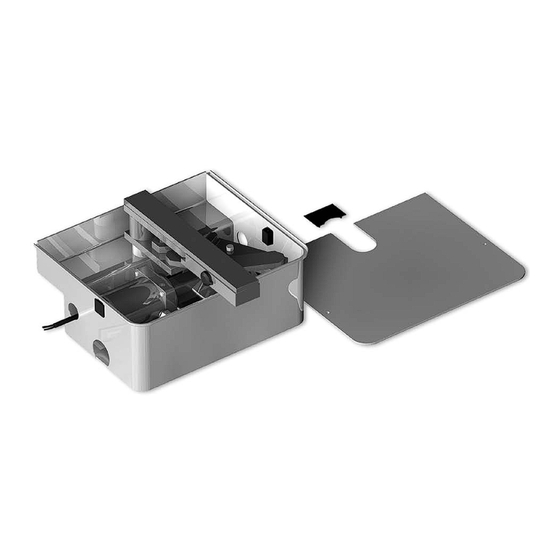

January 2012 This manual is the sole property of the TOUSEK Ges.m.b.H. and may not be made available to competitors. All rights reserved. No part of it may be reproduced without our prior written permission. We will not accept liability for any claims resulting from misprints or errors. This edition of the manual replaces all earlier publications of the same. - Page 3 It distinguishes itself by it’s rather compact shape and the adjustable limit switches which are integrated in its housing. The motor unit is installed in a massive sheet steel housing, which is optionally also available in stainless steel (TURN 310 UF/E).
-
Page 4: Installation
K2 output pinion replaces motor arm (3) K3 chain replaces lever arm (5) gate frame U-profile (for inserting the gate wing) optional: chain bracket foresee PVC-pipe Ø 60-80 for drainage! - 4 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013... - Page 5 Suggestion • Before mounting we suggest to spray some protection wax all around the operator. • After mounting please spray some protection wax on all parts inside the operator housing. - 5 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 6 (see emergency release), till it is aligned at the gate driver (4) as shown in the beside picture and the lever of the emergency release mechanism (7a) may engage in the gate driver. - 6 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 7 • Pay attention to left- and right installation (see below figure). Put the motor-gearing unit onto the 4 screws inside the housing and secure it with the nuts. left installation right installation INTERIOR cable opening - 7 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 8 • Since the internal limits don’t come into effect at chain operation you have to make sure, that floor stops fix the end positions gate opened and gate closed. • Alternatively Tousek piston rod travel limiters can be used as well. Electrical connection and power adjustment Installation •...
- Page 9 • Depending on left- or right assembly, please take care that the limiting screw (3b) is correctly positioned in the guiding of the motor arm (3) (see picture). left installation right installation INTERIOR - 9 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 10 • Put on the plastic cap again. Note • Installation, connection, taking into operation and maintenance may only be carried out by qualified professionals and with regard to this manual. - 10 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 11 In this tap hole the grease nipple (4c) for connection of a grease gun is inserted. • At the end of each winter season you should rinse the operator with warm water. - 11 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 12 • Note: For an optimal function of the gate facility we recommend to use a centering guide (optional) art. code 13800040 - 12 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 13 - 13 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
- Page 14 - 14 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013...
-
Page 15: Dimensioned Drawing
(left operator) Underfloor operator TURN 310 UF • dimensions in mm Opening for inserting the emergency release lever We reserve the right to change dimensions and technical specifications without prior notice. - 15 - tousek / E_TURN-310UF_43000203 / 19. 03. 2013... - Page 16 Zetschegasse 1 Tel. +43/1/667 36 01 Fax +43/1/667 89 23 info@tousek.at Tousek GmbH Germany D-83395 Freilassing Traunsteiner Straße 12 Tel. +49/86 54/77 66-0 Fax +49/86 54/5 71 96 info@tousek.de Tousek GmbH Switzerland CH-6275 Ballwil Bahnhofstraße 14 Tel. +41/0/41 448 2965 Fax +41/0/41 448 2966 info@tousek.ch Tousek Sp. z o.o. Poland your service partner: PL 43-190 Mikołów (k/Katowic) Gliwicka 67 Tel. +48/32/738 53 65 Fax +48/32/738 53 66 info@tousek.pl Tousek s.r.o. Czech Republic CZ-130 00 Praha 3 Jagellonská 9 Tel. +420/2/2209 0980 Fax +420/2/2209 0989 info@tousek.cz tousek We reserve the right to change dimensions and/or technical specifications with- E_TURN-310UF_43000203 out prior notice. Claims resulting from misprints or errors cannot be accepted.
