Industrial Electronic Devices
MECHANICAL DIMENSIONS:

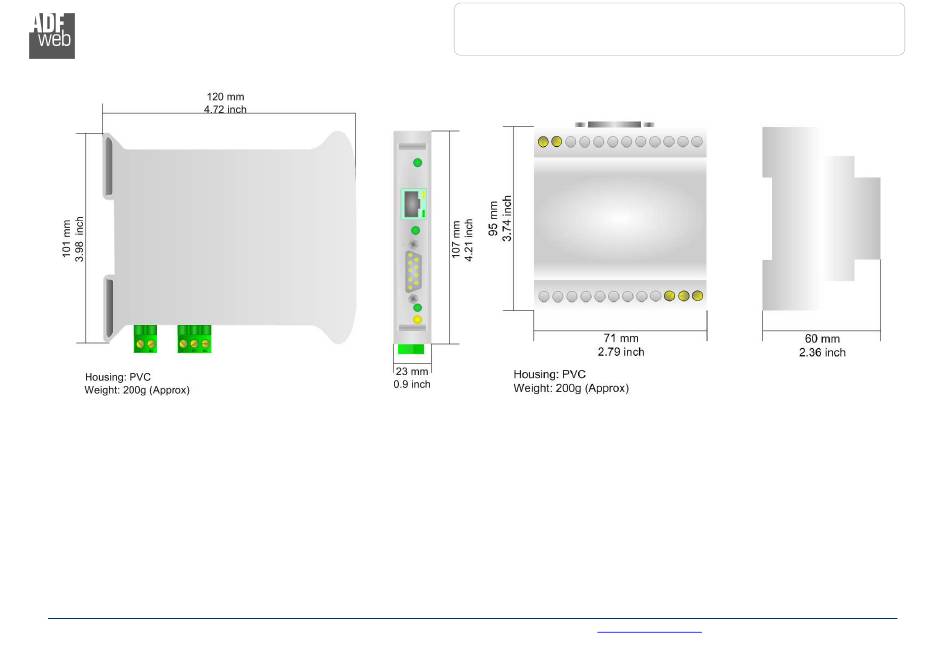

Figure 11: Mechanical dimensions scheme for HD67154-A1
ORDER CODE:
Order Code: HD67154-A1 -
Order Code: HD67154-B2 -
ACCESSORIES:
Order Code: AC34107
-
Order Code: AC34114
-
ADFweb.com Srl – IT31010 – Mareno – Treviso
Gateway – Ethernet from/to DeviceNet Master
Gateway – Ethernet from/to DeviceNet Master
Null Modem Cable Fem/Fem DSub 9 Pin 1,5 m
Null Modem Cable Fem/Fem DSub 9 Pin 5 m
User Manual Ethernet from/to DeviceNet Master
Document code: MN67154_ENG
Figure 12: Mechanical dimensions scheme for HD67154-B2
INFO:
www.adfweb.com
Revision 1.000
Page 13 of 14
Phone +39.0438.30.91.31
