  • Page 1 Boost Your Bars User Manual Plus Series 4K Plus 10K Plus...

  • Page 2: Table Of Contents

    Table of Contents Package Content ................2 Introduction ..................3 How Signal Boosters Work ............... 3 Pre-Installation Instructions ............. 4 Signal Supervisor App Setup ............6 Installation – Signal Supervisor Method .......... 7 Installation – LCD Display Method ........... 8 Optional Indoor Expansion Kit ............13 Authorized Accessories List ............17 FCC and IC Statements ..............18...

  • Page 3: Package Content

    Package Content NOTE: Available accessories can be purchased through HiBoost.com Warning: Un-authorized antennas, cables, and/or coupling devices are prohibited by new FCC rules. Please contact FCC for details: 1(888)-CALL-FCC...

  • Page 4: Introduction

    Introduction Thanks again for purchasing HiBoost’s Plus Signal Booster. The Plus Series is a collection of precision-engineered products that improve cellular reception inside of homes and businesses by amplifying incoming and outgoing cell phone signals. The Plus booster features a built-in indoor antenna so that users can boost signal directly from the unit within minutes of set up.

  • Page 5: Pre-Installation Instructions

    Note: The Plus booster can split amplified signal twice – please review the antenna expansion methods for more information The HiBoost Signal Supervisor app will allow users to communicate to the Plus signal booster via Wi-Fi. It will also allow users to communicate with your booster locally via Bluetooth connection.
  • Page 6 Built-in Antenna Method Optional Antenna Methods...

  • Page 7: Signal Supervisor App Setup

    Google Play Step 2: Create a New Account and Log-in • Launch the app on your mobile device Select the HiBoost Server • • Log-in with an existing account create a new one Step 3: Register the Booster by adding a device on the home menu Go to My Devices >...

  • Page 8: Installation - Signal Supervisor Method

    Note: Please remember that if the booster is connected via Bluetooth, then users are limited to a connection within a 30 feet radius from the booster If there are any issues while installing a HiBoost cell phone signal booster, please contact the HiBoost technical support team through the following...

  • Page 9: Installation - Lcd Display Method

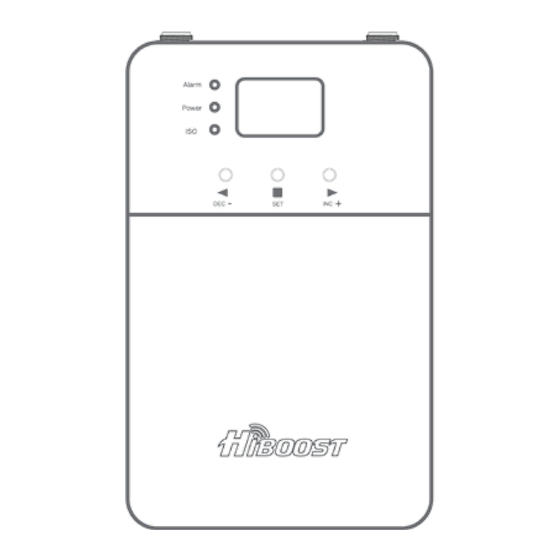

    Installation – LCD Display Method These are instructions that will allow users to install a Plus cell phone booster using the LCD Display. Before using this method, please take a moment to become familiar with the LCD display, LED status indicators and control buttons on the booster.
  • Page 10 Installation Overview Before beginning the installation, it is important that users survey and plan the layout of the cell phone signal booster system. Please review the following instructions before attempting to install this system. In this set up, the user will need to use the outdoor antenna to find the strongest source of nearby cellular signal (generally in the direction of the nearest cell phone tower).
  • Page 11 (dBm) and DL gain (dB) on the right-hand column on the LCD display Note: Maximum power and downlink gain for the 4K Plus is 10dBm/65dB and 10K Plus is 12dBm/72dB Professional Tips: Keep in mind that it is normal for the output values may vary •...
  • Page 12 1 to 2-inch Diameter Mast** L-bracket U-bolt Bracket 5. After narrowing down the best location for the outdoor antenna, finalize installation by using the hardware included in this kit and permanently mount it onto a mast Note: Write down the maximum power output and downlink gain values – this will be important when installing the booster and any additional external indoor antennas Part B) Install the Booster...
  • Page 13 3. Mount the signal booster in a dry and cool area that is easily accessible for maintenance (it should be located near a power outlet) Slide Downwards into Mount Plas�c Expansion Bolt Bracket Mount Screws Note: If the gain and power output values decreased, there may be some oscillation issues with the set up –...

  • Page 14: Optional Indoor Expansion Kit

    Part C) Finalize the Installation Finalize the booster, antenna and coaxial installation by using the mounting hardware included in this kit. 1. Loosely run the coaxial cable from the indoor and outdoor antenna to the signal booster and secure all connections in the correct port Professional tips •...
  • Page 15 Optional Indoor Expansion Kit The port labeled Indoor1 allows users to double their indoor coverage using an external indoor antenna while also using the internal antenna built into the booster unit. 1. To add a secondary antenna, connect the indoor antenna and coaxial cable to the port labeled Indoor1.
  • Page 16 Check to see if the indoor antenna is installed correctly – try moving • and adjusting the indoor antenna to improve coverage Purchase a HiBoost Expansion kit to extend coverage in specific areas • (only applicable to 10K SL and 15K SL)
  • Page 17 Other Troubleshooting Issues Reference the chart below to identify the current status of the booster. If there are any issues while installing a HiBoost cell phone signal booster, please contact the technical support team through the following channels: 24/7 Online Support: Create a ticket or chat via Signal Supervisor App Phone: (972) 870-5666 (M-F from 9 am –...

  • Page 18: Authorized Accessories List

    Authorized Accessories List The following are FCC approved accessories:...

  • Page 19: Fcc And Ic Statements

    FCC and IC Statements FCC RF EXPOSURE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 20 Consult the dealer or an experienced radio/TV technician for help • Changes or modifications not expressly approved by HiBoost could void the user’s authority to operate the equipment. For a complete list of antennas and cables approved for use with these boosters see Authorized Kitting Options FCC 27.50(d)(4) Statement: Fixed, mobile, and portable (handheld) stations operating in...

  • Page 21: Technical Specifications

    Technical Specifications...

  • Page 22: Return And Warranty Policies

    30-days with proof of purchase. Please contact the HiBoost customer support. 3-Year Warranty: HiBoost signal boosters and kits are warranted for 3 years. HiBoost will repair or replace the unit and will cover the cost of delivery for consumers located within the continental U.S and Canada.
  • Page 24 HiBoost 6210 N Beltline Rd. #110 Irving, TX 75063 (972) 870-5666 www.hiboost. support@hiboostusa.com www.hiboost.com...
