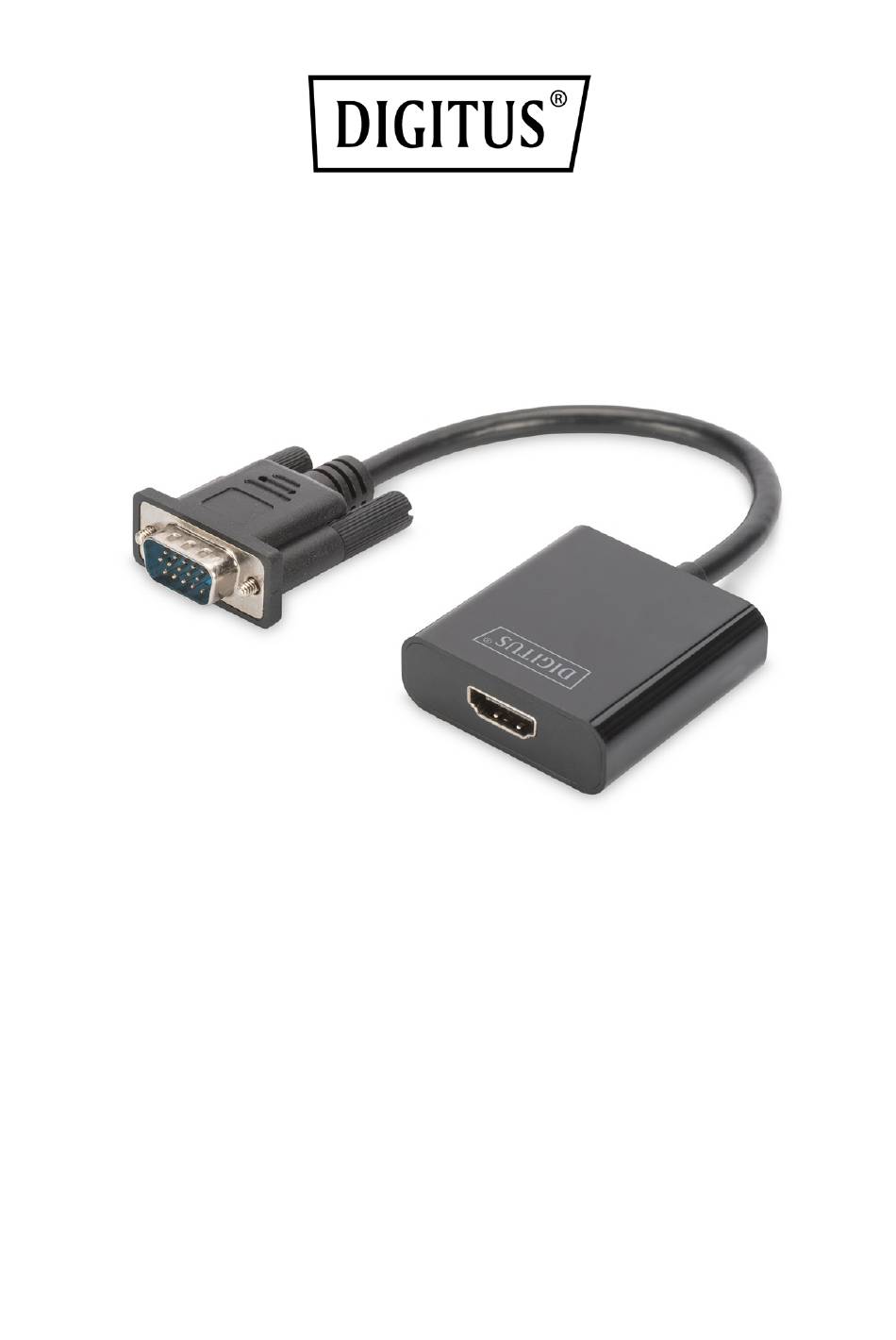

VGA to HDMI Converter
Manual
DA-70473

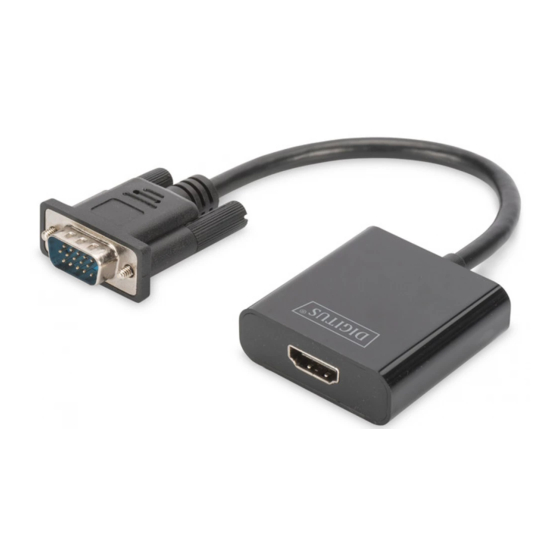

The Digitus VGA to HDMI Converter converts your analog VGA signal to a digital
HDMI signal. The conversion enables you to easily connect devices having only a VGA
port to an HDMI monitor, a TV set or a projector. The converter is equipped with a
3.5 mm audio jack since the VGA input can play back only a video signal. Any existing
stereo signal is simultaneously converted and integrated into the HDMI signal. This
makes it possible to play back the audio signals via HMDI on your TV set.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-70473 and is the answer not in the manual?

Questions and answers

Summary of Contents for Digitus DA-70473

  • Page 1 Manual DA-70473 The Digitus VGA to HDMI Converter converts your analog VGA signal to a digital HDMI signal. The conversion enables you to easily connect devices having only a VGA port to an HDMI monitor, a TV set or a projector. The converter is equipped with a 3.5 mm audio jack since the VGA input can play back only a video signal.
  • Page 2 Features  Use modern HDMI monitor/TV with older analog VGA device  Converts VGA video and audio signals to HDMI  Compliant with PC VGA resolution up to 1080P SVGA (800x600@60Hz), 1024x768@60Hz, 720P (1280x720@60Hz), WXGA (1280x768@60Hz), 1280x960@60Hz, SXGA (1280x1024@60Hz), 1400x900@60Hz, 1080P (1920x1080@60Hz) ...
  • Page 3: Application Diagram

    Application Diagram Audio Micro USB (Power) HDMI Cable Note: USB power cable is need. (5V, 500mA) Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
