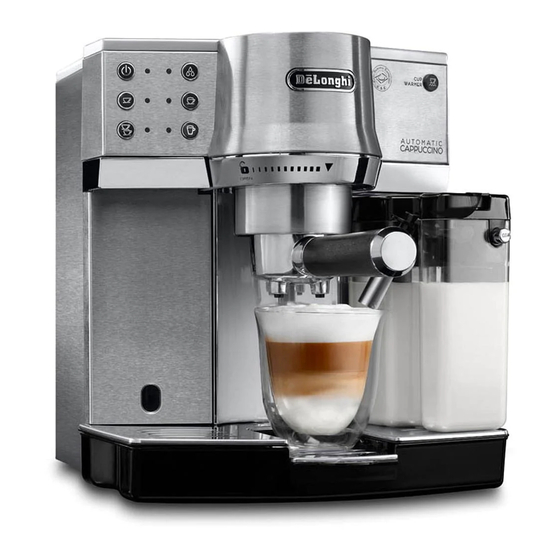

Description of appliance
(page 3 - A )
A1. Cup holder/Warming plate
A2. Water spout/milk container coupling
A3. General ON/OFF switch
A4. Power supply cable socket
A5. Boiler outlet/Infusion assembly
A6. Water tank seat
A7. Water tank lid
A8. Water tank with seat for water filter
A9. Water refill indicator
A10. Drip tray
A11. Indicator for drip tray maximum water level
A12. Cup tray
A13. Sliding tray for long coffee/latte macchiato glass
A14. Cup warmer button
Description of control panel (B)
(page 3 - B)
B1. ON/Stand-by Button
B2. ON/Stand-by Light
B3. 1 cup button
B4. 1 cup /"temperature OK" light
B5. 2 cups button
B6. 2 cups/"temperature OK" light
B7. Hot water button
B8. Hot water light
B9. Hot milk/cappuccino button
B10. Hot milk/cappuccino/"temperature OK" light
B11. Hot milk/latte macchiato button
B12. Hot milk/latte macchiato/"temperature OK" light
Milk container description
(page 2 - C)
C1. Milk frother lid with froth regulator
C2. CLEAN button
C3. Milk tube
C4. Milk intake tube
C5. Milk container
Description of accessories
(page 2 - D)
D1. Filter-holder cup
D2. 1 coffee crema filter
D3. 2 coffee crema filter
D4. ESE pod crema filter
D5. Power supply cable (removable)
D6. Tamper/dispenser measure
D7. Removable water spout
D8. Reactive strip to detect water hardness
(Total hardness test)
D9. Descaler
D10. Water softener filter
Technical data
Mains voltage:
Absorbed power:
Sizes LxHxD:
Thermoblock:
Pressure:
Water tank capacity:
Power supply cable length:
Weight:
The appliance is in compliance with the following CE
Directives:
•
Stand-by Directive 1275/2008
•
Low Voltage Directive 2006/95/CE and successive
amendments;
•
EMC Directive 2004/108/CE and successive amendments;
•
The materials and objects destined to come into contact
with food stuffs are in compliance with the provisions of
the 1935/2004 European Standard.
Disposal
In compliance with European directive 2002/96/EC, the
appliance must not be disposed of with household wa-
ste, but taken to an authorised waste separation and
recycling centre.
17
Description
en
220-240V ˜ 50/60Hz
1450W
305x275x320 mm
Stainless steel/Aluminium
15 bar
1.2 m
1 L
7 kg
