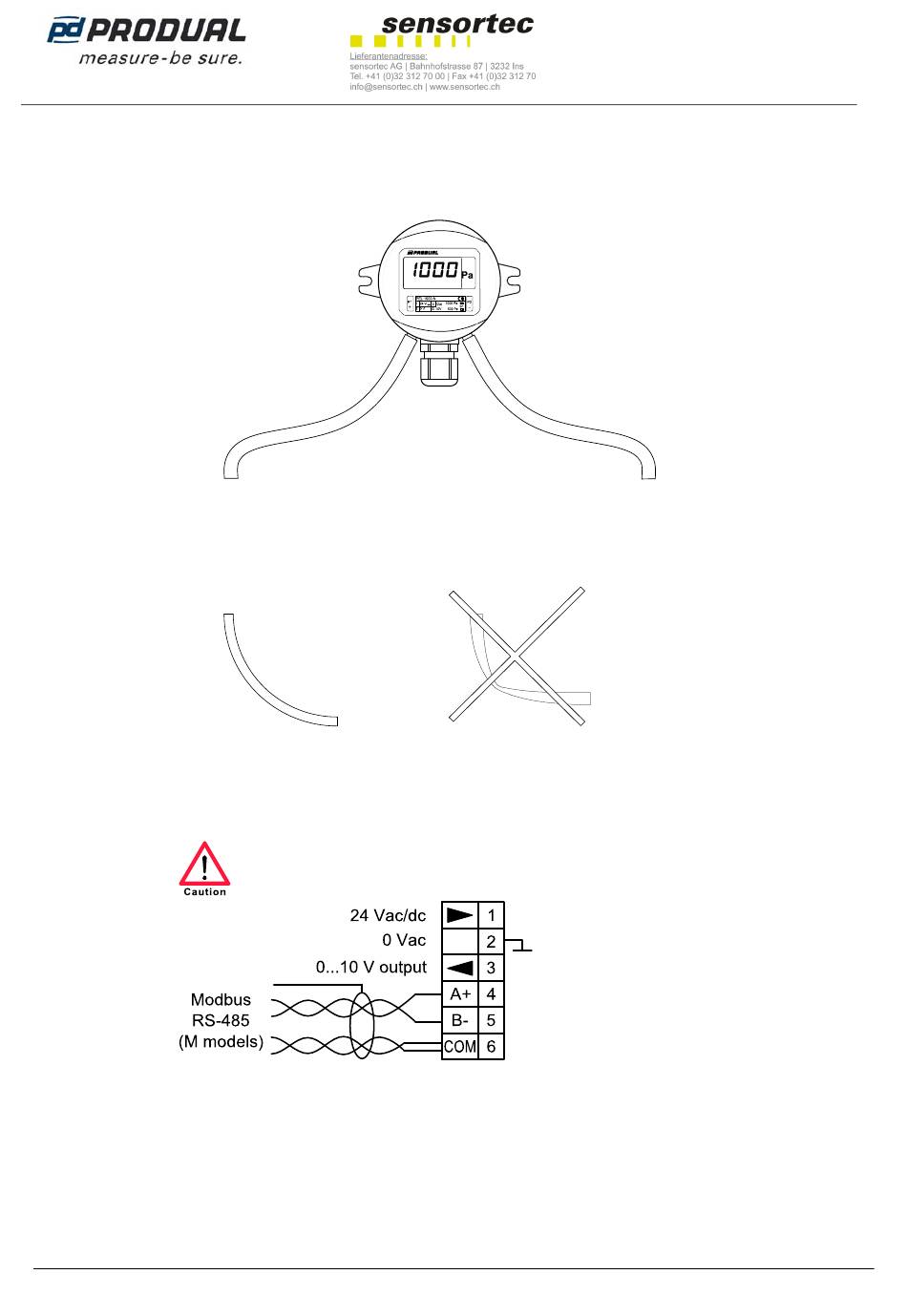

COMMISSIONING
Mounting
- The transmitter should be installed above the measuring point to avoid condensation problems.
- The duct overpressure is detected by connecting the measuring point to + connector and by leaving the
- Install the measuring hoses carefully so that the hoses don't bend too tightly. Too tight curves may prevent the
- The hose length doesn't effect on the measuring accuracy. However, long hoses generate delay on the
- Mount the device cable entry downwards, so that moisture and water gets out of the housing freely.
Wiring
Produal Oy
Keltakalliontie 18, 48770 Kotka FINLAND
- connection open (surrounding space pressure). Accordingly, the duct under-pressure is detected by
connecting the measuring point to - connector and by leaving the + connection open.
air flow to the sensor.
measurement.
Device wiring and commissioning can only be carried out by qualified professionals. Always make the
wirings while the power is switched off.
Tel: +358 10 219 9100 / Fax: +358 5 230 9210
Information is subject to change without prior notice.
USER GUIDE
PEL 1000 / PEL 1000-M
V1.0 (19.02.2015)
1 (8)
info@produal.fi
www.produal.com
Advertisement
Table of Contents
Related Manuals for Produal Sensortec PEL 1000-M
Summary of Contents for Produal Sensortec PEL 1000-M
- Page 1 Device wiring and commissioning can only be carried out by qualified professionals. Always make the wirings while the power is switched off. Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi...
- Page 2 The custom range is 0…1000 Pa as a default. The range can be changed by using ML-SER tool or by defining the high limit to the Modbus register 40006 (the low limit is 0 Pa). Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi...
- Page 3 When the ML-SER is successfully connected, the pressure measurement value is displayed on the ML-SER tool display. The connecting can take few seconds. Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi...
- Page 4 Span calibration parameters are displayed for two seconds before returning to the main menu. Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi...
- Page 5 Correspondingly reading is corrected +10 Pa at 2000 Pa. Press OK to save the span calibration. The calibration parameter values are displayed for two seconds before returning to the menu. Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi...
- Page 6 Press the “-“ button for five seconds in the software version display. Change the resetting dialog answer to “yes”. Press OK button. The factory settings are now reset. Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi www.produal.com...
- Page 7 Range 10001 Zeroing button is pressed within 1 minute 0…1 no=0, yes=1 Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi www.produal.com Information is subject to change without prior notice.
- Page 8 40006 Custom range high limit (low limit = 0 Pa) unsigned 1…10 100…1000 Pa Produal Oy Keltakalliontie 18, 48770 Kotka FINLAND Tel: +358 10 219 9100 / Fax: +358 5 230 9210 info@produal.fi www.produal.com Information is subject to change without prior notice.
